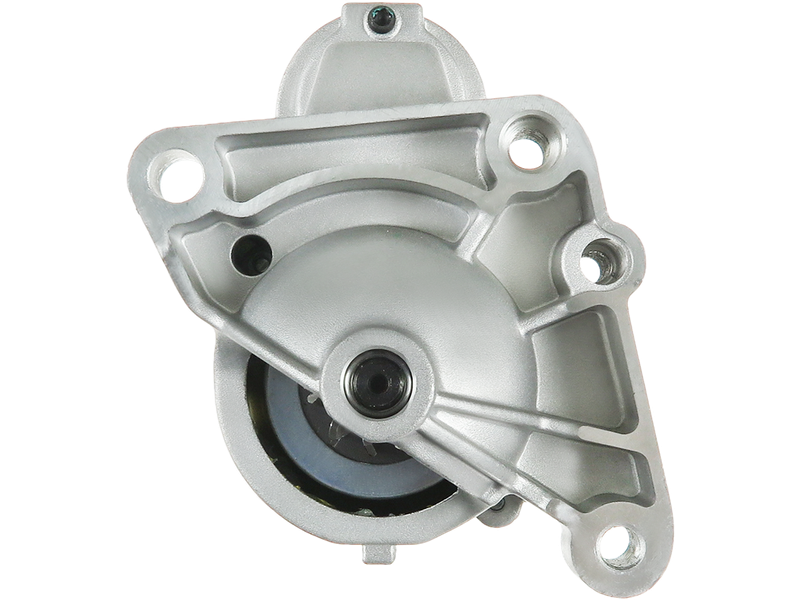

AS-PL S3024 Startmotor — RENAULT, OPEL, NISSAN

AS-PL S3024 Startmotor — RENAULT, OPEL, NISSAN

844,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: VALEO

Spänning [ V ] 12
Effekt [ kW ] 2.20
Startmotors rotation CW
B-storlek [ mm ] -6.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 238.00
O.1 [ mm ] 31.00
O.2 [ mm ] 62.00
O.3 [ mm ] 125.50
O.4 [ mm ] 77.50
C.1 [ mm ] M10x1.5
C.2 [ mm ] M8x1.25
C.3 [ mm ] M10x1.5
C.4 [ mm ] 11.50
AS-PLSTANDARD LINE
EAN5901259421880
ErsätterVALEO
OE-nummerD7R53

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S3024 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från VALEO.

OE-nummer: D7R53

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.20
Startmotors rotation CW
B-storlek [ mm ] -6.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 238.00
O.1 [ mm ] 31.00
O.2 [ mm ] 62.00
O.3 [ mm ] 125.50
O.4 [ mm ] 77.50
C.1 [ mm ] M10x1.5
C.2 [ mm ] M8x1.25
C.3 [ mm ] M10x1.5
C.4 [ mm ] 11.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
NISSAN2.5 dCi 115PRIMASTAR Van (X83)G9U630114Diesel2008–
NISSAN2.5 dCi 140PRIMASTAR Platform/Chassis (X83)G9U730135Diesel2002–2006
NISSAN2.5 dCi 140PRIMASTAR Van (X83)G9U730135Diesel2003–
NISSAN2.5 dCi 150PRIMASTAR Platform/Chassis (X83)G9U630146Diesel2006–
NISSAN2.5 dCi 150PRIMASTAR Van (X83)G9U632145Diesel2006–
NISSANdCI 90INTERSTAR Bus (X70)G9T72290Diesel2002–2006
NISSANdCI 90INTERSTAR Van (X70)G9T72290Diesel2002–
NISSANdCi 100INTERSTAR Bus (X70)G9U75099Diesel2003–2006
NISSANdCi 100INTERSTAR Bus (X70)G9U650101Diesel2006–2011
NISSANdCi 100INTERSTAR Bus (X70)G9U72099Diesel2003–2006
NISSANdCi 100INTERSTAR Platform/Chassis (X70)G9U75499Diesel2004–
NISSANdCi 100INTERSTAR Platform/Chassis (X70)G9U72099Diesel2004–
NISSANdCi 100INTERSTAR Van (X70)G9U75499Diesel2003–2006
NISSANdCi 100INTERSTAR Van (X70)G9U720101Diesel2006–
NISSANdCi 100INTERSTAR Van (X70)G9U72099Diesel2003–2006
NISSANdCi 100INTERSTAR Van (X70)G9U754101Diesel2006–
NISSANdCi 115INTERSTAR Bus (X70)G9U720115Diesel2002–2006
NISSANdCi 115INTERSTAR Bus (X70)G9U750115Diesel2002–2006
NISSANdCi 115INTERSTAR Bus (X70)G9U724115Diesel2002–2006
NISSANdCi 115INTERSTAR Bus (X70)G9U754115Diesel2002–2006
NISSANdCi 115INTERSTAR Platform/Chassis (X70)G9U724115Diesel2003–
NISSANdCi 115INTERSTAR Platform/Chassis (X70)G9U754115Diesel2003–
NISSANdCi 115INTERSTAR Platform/Chassis (X70)G9U720115Diesel2003–
NISSANdCi 115INTERSTAR Platform/Chassis (X70)G9U750115Diesel2003–
NISSANdCi 115INTERSTAR Van (X70)G9U720115Diesel2002–
NISSANdCi 115INTERSTAR Van (X70)G9U750115Diesel2002–
NISSANdCi 115INTERSTAR Van (X70)G9U724115Diesel2002–
NISSANdCi 115INTERSTAR Van (X70)G9U754115Diesel2002–
NISSANdCi 115PRIMASTAR Bus (X83)G9U630114Diesel2008–
NISSANdCi 120INTERSTAR Bus (X70)G9U650120Diesel2006–2011
NISSANdCi 120INTERSTAR Platform/Chassis (X70)G9U650120Diesel2006–
NISSANdCi 120INTERSTAR Van (X70)G9U650120Diesel2006–
NISSANdCi 140PRIMASTAR Bus (X83)G9U730135Diesel2003–
NISSANdCi 150INTERSTAR Bus (X70)G9U632145Diesel2006–2011
NISSANdCi 150INTERSTAR Platform/Chassis (X70)G9U632145Diesel2006–
NISSANdCi 150INTERSTAR Van (X70)G9U632145Diesel2006–
NISSANdCi 150PRIMASTAR Bus (X83)G9U632145Diesel2006–
OPEL2.2 DTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9T72290Diesel2000–
OPEL2.2 DTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9T72090Diesel2000–
OPEL2.2 DTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9T75090Diesel2000–
OPEL2.2 DTI (FD)MOVANO A Van (X70)G9T72290Diesel2000–
OPEL2.2 DTI (FD)MOVANO A Van (X70)G9T72090Diesel2000–
OPEL2.2 DTI (FD)MOVANO A Van (X70)G9T75090Diesel2000–
OPEL2.2 DTI (JD)MOVANO A Bus (X70)G9T75090Diesel2000–
OPEL2.2 DTI (JD)MOVANO A Bus (X70)G9T72290Diesel2000–
OPEL2.2 DTI (JD)MOVANO A Bus (X70)G9T72090Diesel2000–
OPEL2.5 CDTIVIVARO A Platform/Chassis (X83)G9U630146Diesel2006–2014
OPEL2.5 CDTIVIVARO A Platform/Chassis (X83)G9U630114Diesel2006–2010
OPEL2.5 CDTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U632120Diesel2006–
OPEL2.5 CDTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U650146Diesel2006–
OPEL2.5 CDTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U650101Diesel2006–
OPEL2.5 CDTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U632146Diesel2006–
OPEL2.5 CDTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U650120Diesel2006–
OPEL2.5 CDTI (F7)VIVARO A Van (X83)G9U630114Diesel2006–2010
OPEL2.5 CDTI (F7)VIVARO A Van (X83)G9U630146Diesel2006–2014
OPEL2.5 CDTI (F7, J7, A07)VIVARO A Bus (X83)G9U630114Diesel2006–2010
OPEL2.5 CDTI (F7, J7, A07)VIVARO A Bus (X83)G9U630146Diesel2006–2014
OPEL2.5 CDTI (FD)MOVANO A Van (X70)G9U632120Diesel2003–
OPEL2.5 CDTI (FD)MOVANO A Van (X70)G9U632146Diesel2003–
OPEL2.5 CDTI (FD)MOVANO A Van (X70)G9U650120Diesel2003–
OPEL2.5 CDTI (FD)MOVANO A Van (X70)G9U650101Diesel2003–
OPEL2.5 CDTI (FD)MOVANO A Van (X70)G9U650146Diesel2003–
OPEL2.5 CDTI (JD)MOVANO A Bus (X70)G9U650101Diesel2007–
OPEL2.5 CDTI (JD)MOVANO A Bus (X70)G9U650146Diesel2006–
OPEL2.5 CDTI (JD)MOVANO A Bus (X70)G9U650120Diesel2006–
OPEL2.5 CDTI (JD)MOVANO A Bus (X70)G9U632146Diesel2006–
OPEL2.5 CDTI (JD)MOVANO A Bus (X70)G9U632120Diesel2006–
OPEL2.5 DTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U720115Diesel2001–
OPEL2.5 DTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U750115Diesel2001–
OPEL2.5 DTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U724115Diesel2001–
OPEL2.5 DTI (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U754115Diesel2001–
OPEL2.5 DTI (F7)VIVARO A Van (X83)G9U730135Diesel2003–2010
OPEL2.5 DTI (F7, J7, A07)VIVARO A Bus (X83)G9U730135Diesel2003–2010
OPEL2.5 DTI (FD)MOVANO A Van (X70)G9U724115Diesel2001–
OPEL2.5 DTI (FD)MOVANO A Van (X70)G9U754115Diesel2001–
OPEL2.5 DTI (FD)MOVANO A Van (X70)G9U720115Diesel2001–
OPEL2.5 DTI (FD)MOVANO A Van (X70)G9U750115Diesel2001–
OPEL2.5 DTI (JD)MOVANO A Bus (X70)G9U754115Diesel2001–
OPEL2.5 DTI (JD)MOVANO A Bus (X70)G9U720115Diesel2001–
OPEL2.5 DTI (JD)MOVANO A Bus (X70)G9U750115Diesel2001–
OPEL2.5 DTI (JD)MOVANO A Bus (X70)G9U724115Diesel2001–
OPEL2.5 DTiVIVARO A Platform/Chassis (X83)G9U730135Diesel2003–2010
OPEL2.5 DTi (ED, HD, UD0, UD4)MOVANO A Platform/Chassis (X70)G9U75499Diesel2003–
OPEL2.5 DTi (FD)MOVANO A Van (X70)G9U75499Diesel2003–
OPEL2.5 DTi (JD)MOVANO A Bus (X70)G9U75499Diesel2003–2006
RENAULT2.2 12V TD (JE0E, JE0H, JE0P)ESPACE III (JE0_)G8T716113Diesel1996–2000
RENAULT2.2 12V TD (JE0E, JE0H, JE0P)ESPACE III (JE0_)G8T714113Diesel1996–2000
RENAULT2.2 12V TD (JE0E, JE0H, JE0P)ESPACE III (JE0_)G8T760113Diesel1996–2000
RENAULT2.2 DESPACE III (JE0_)G8T716114Diesel1997–2000
RENAULT2.2 dCI 90 (ED0G, ED0N, HD0G, HD0N, HD1G, HD1N, UD0G,...MASTER II Platform/Chassis (ED/HD/UD)G9T72290Diesel1997–2006
RENAULT2.2 dCI 90 (ED0G, ED0N, HD0G, HD0N, HD1G, HD1N, UD0G,...MASTER II Platform/Chassis (ED/HD/UD)G9T72090Diesel1997–2006
RENAULT2.2 dCI 90 (ED0G, ED0N, HD0G, HD0N, HD1G, HD1N, UD0G,...MASTER II Platform/Chassis (ED/HD/UD)G9T75090Diesel1997–2006
RENAULT2.2 dCI 90 (FD0G, FD0N, FD2G, FD2N, FD3G, FD3N)MASTER II Van (FD)G9T72290Diesel1997–2006
RENAULT2.2 dCI 90 (FD0G, FD0N, FD2G, FD2N, FD3G, FD3N)MASTER II Van (FD)G9T72090Diesel1997–2006
RENAULT2.2 dCI 90 (FD0G, FD0N, FD2G, FD2N, FD3G, FD3N)MASTER II Van (FD)G9T75090Diesel1997–2006
RENAULT2.2 dCI 90 (JD0G, JD0N, JD1N)MASTER II Bus (JD)G9T75090Diesel1997–2006
RENAULT2.2 dCI 90 (JD0G, JD0N, JD1N)MASTER II Bus (JD)G9T72290Diesel1997–2006
RENAULT2.2 dCI 90 (JD0G, JD0N, JD1N)MASTER II Bus (JD)G9T72090Diesel1997–2006
RENAULT2.2 dCiLAGUNA II (BG0/1_)G9T600140Diesel2005–2007
RENAULT2.2 dCiLAGUNA II (BG0/1_)G9T706140Diesel2005–2007
RENAULT2.2 dCiLAGUNA II (BG0/1_)G9T605140Diesel2005–2007
RENAULT2.2 dCiLAGUNA II (BG0/1_)G9T707140Diesel2005–2007
RENAULT2.2 dCi (BG09)LAGUNA II (BG0/1_)G9T600116Diesel2004–2005
RENAULT2.2 dCi (BG0F)LAGUNA II (BG0/1_)G9T700150Diesel2001–2006
RENAULT2.2 dCi (BG0F)LAGUNA II (BG0/1_)G9T702150Diesel2001–2006
RENAULT2.2 dCi (BJ0E, BJ0F)VEL SATIS (BJ0_)G9T703150Diesel2002–2009
RENAULT2.2 dCi (BJ0E, BJ0F)VEL SATIS (BJ0_)G9T702150Diesel2002–2009
RENAULT2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H)VEL SATIS (BJ0_)G9T607140Diesel2004–
RENAULT2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H)VEL SATIS (BJ0_)G9T702140Diesel2004–
RENAULT2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H)VEL SATIS (BJ0_)G9T606140Diesel2004–
RENAULT2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H)VEL SATIS (BJ0_)G9T700140Diesel2004–
RENAULT2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H)VEL SATIS (BJ0_)G9T703140Diesel2004–
RENAULT2.2 dCi (BJ0E, BJ0F, BJ0G, BJ0H)VEL SATIS (BJ0_)G9T600140Diesel2004–
RENAULT2.2 dCi (BJ0H)VEL SATIS (BJ0_)G9T606116Diesel2004–
RENAULT2.2 dCi (BJ0H)VEL SATIS (BJ0_)G9T600116Diesel2004–
RENAULT2.2 dCi (BJ0H)VEL SATIS (BJ0_)G9T607116Diesel2004–
RENAULT2.2 dCi (BJ0M)VEL SATIS (BJ0_)G9T702113Diesel2004–
RENAULT2.2 dCi (BJ0M)VEL SATIS (BJ0_)G9T700113Diesel2004–
RENAULT2.2 dCi (DE01)AVANTIME (DE0_)G9T712150Diesel2002–2003
RENAULT2.2 dCi (JE0K)ESPACE III (JE0_)G9T710130Diesel2000–2002
RENAULT2.2 dCi (JE0K)ESPACE III (JE0_)G9T642130Diesel2000–2002
RENAULT2.2 dCi (JE0S)ESPACE III (JE0_)G9T710115Diesel2000–2002
RENAULT2.2 dCi (JK07)ESPACE IV (JK0/1_)G9T645139Diesel2006–
RENAULT2.2 dCi (JK0H)ESPACE IV (JK0/1_)G9T743150Diesel2002–2006
RENAULT2.2 dCi (JK0H)ESPACE IV (JK0/1_)G9T742150Diesel2002–2006
RENAULT2.2 dCi (KG09)LAGUNA II Grandtour (KG0/1_)G9T600116Diesel2004–2005
RENAULT2.2 dCi (KG0F)LAGUNA II Grandtour (KG0/1_)G9T707150Diesel2001–2006
RENAULT2.2 dCi (KG0F)LAGUNA II Grandtour (KG0/1_)G9T702150Diesel2001–2006
RENAULT2.2 dCi (KG0F)LAGUNA II Grandtour (KG0/1_)G9T706150Diesel2001–2006
RENAULT2.2 dCi (KG0F)LAGUNA II Grandtour (KG0/1_)G9T700150Diesel2001–2006
RENAULT2.2 dCi (KG0F)LAGUNA II Grandtour (KG0/1_)G9T703150Diesel2001–2006
RENAULT2.2 dCi (KG0F, KG1N)LAGUNA II Grandtour (KG0/1_)G9T605140Diesel2005–2007
RENAULT2.2 dCi (KG0F, KG1N)LAGUNA II Grandtour (KG0/1_)G9T707140Diesel2005–2007
RENAULT2.2 dCi (KG0F, KG1N)LAGUNA II Grandtour (KG0/1_)G9T600140Diesel2005–2007
RENAULT2.2 dCi (KG0F, KG1N)LAGUNA II Grandtour (KG0/1_)G9T706140Diesel2005–2007
RENAULT2.2 dT (B54G)SAFRANE II (B54_)G8T740113Diesel1996–2000
RENAULT2.2 dT (B569)LAGUNA I (B56_, 556_)G8T760113Diesel1996–2001
RENAULT2.2 dT (K569)LAGUNA I Grandtour (K56_)G8T760113Diesel1996–2001
RENAULT2.5 dCi (ED01, ED02, ED41, ED42, ED81, ED82, ED91, ED92,...MASTER II Platform/Chassis (ED/HD/UD)G9U650120Diesel2006–2011
RENAULT2.5 dCi (ED01, ED0Y, ED41, ED4Y, ED81, ED8Y, ED91, ED9Y,...MASTER II Platform/Chassis (ED/HD/UD)G9U632146Diesel2006–2010
RENAULT2.5 dCi (EL0R, EL0V)TRAFIC II Platform/Chassis (EL)G9U630114Diesel2007–
RENAULT2.5 dCi (FD01, FD02, FD21, FD22, FD31, FD32, FD3Y, FD71,...MASTER II Van (FD)G9U650120Diesel2006–2010
RENAULT2.5 dCi (FD01, FD0Y, FD21, FD2Y, FD31, FD71, FD7Y, FD81,...MASTER II Van (FD)G9U632146Diesel2006–2010
RENAULT2.5 dCi (FD02)MASTER II Van (FD)G9U650101Diesel2006–2010
RENAULT2.5 dCi (FL0R, FL0V)TRAFIC II Van (FL)G9U630114Diesel2007–
RENAULT2.5 dCi (HD02)MASTER II Platform/Chassis (ED/HD/UD)G9U650101Diesel2006–2010
RENAULT2.5 dCi (JD01, JD02, JD11, JD12, JD1W)MASTER II Bus (JD)G9U650120Diesel2006–2010
RENAULT2.5 dCi (JD01, JD0Y, JD11, JD1W, JD1Y)MASTER II Bus (JD)G9U632146Diesel2006–2010
RENAULT2.5 dCi (JD12)MASTER II Bus (JD)G9U650101Diesel2006–2010
RENAULT2.5 dCi 100 (ED4V, ED8V, ED0U, ED0V, ED8U, HD0U, HD0V,...MASTER II Platform/Chassis (ED/HD/UD)G9U75499Diesel2002–2010
RENAULT2.5 dCi 100 (FD0U, FD0V, FD3U, FD3V, FD8U, FD8V)MASTER II Van (FD)G9U75499Diesel2003–2010
RENAULT2.5 dCi 100 (JDCV, JD1W)MASTER II Bus (JD)G9U75499Diesel2003–2010
RENAULT2.5 dCi 115 (JL0R, JL0V)TRAFIC II Bus (JL)G9U630114Diesel2008–
RENAULT2.5 dCi 120 (ED0M, ED0U, ED0W, ED4M, ED8M, ED8W, HD0M,...MASTER II Platform/Chassis (ED/HD/UD)G9U724115Diesel2001–2010
RENAULT2.5 dCi 120 (ED0M, ED0U, ED0W, ED4M, ED8M, ED8W, HD0M,...MASTER II Platform/Chassis (ED/HD/UD)G9U754115Diesel2001–2010
RENAULT2.5 dCi 120 (ED0M, ED0U, ED0W, ED4M, ED8M, ED8W, HD0M,...MASTER II Platform/Chassis (ED/HD/UD)G9U720115Diesel2001–2010
RENAULT2.5 dCi 120 (ED0M, ED0U, ED0W, ED4M, ED8M, ED8W, HD0M,...MASTER II Platform/Chassis (ED/HD/UD)G9U750115Diesel2001–2010
RENAULT2.5 dCi 120 (FD0M, FD0U, FD0W, FD2M, FD2W, FD3M, FD3U,...MASTER II Van (FD)G9U720115Diesel2001–2007
RENAULT2.5 dCi 120 (FD0M, FD0U, FD0W, FD2M, FD2W, FD3M, FD3U,...MASTER II Van (FD)G9U750115Diesel2001–2007
RENAULT2.5 dCi 120 (FD0M, FD0U, FD0W, FD2M, FD2W, FD3M, FD3U,...MASTER II Van (FD)G9U724115Diesel2001–2007
RENAULT2.5 dCi 120 (FD0M, FD0U, FD0W, FD2M, FD2W, FD3M, FD3U,...MASTER II Van (FD)G9U754115Diesel2001–2007
RENAULT2.5 dCi 120 (JD0M, JD1M, JD1W)MASTER II Bus (JD)G9U724115Diesel2001–2006
RENAULT2.5 dCi 120 (JD0M, JD1M, JD1W)MASTER II Bus (JD)G9U754115Diesel2001–2006
RENAULT2.5 dCi 120 (JD0M, JD1M, JD1W)MASTER II Bus (JD)G9U720115Diesel2001–2006
RENAULT2.5 dCi 120 (JD0M, JD1M, JD1W)MASTER II Bus (JD)G9U750115Diesel2001–2006
RENAULT2.5 dCi 135 (EL0D)TRAFIC II Platform/Chassis (EL)G9U730135Diesel2001–2006
RENAULT2.5 dCi 135 (FL0D)TRAFIC II Van (FL)G9U730135Diesel2003–2006
RENAULT2.5 dCi 135 (JL0D)TRAFIC II Bus (JL)G9U730135Diesel2003–2006
RENAULT2.5 dCi 145 (EL0J)TRAFIC II Platform/Chassis (EL)G9U630146Diesel2006–
RENAULT2.5 dCi 145 (FL0J)TRAFIC II Van (FL)G9U630146Diesel2006–
RENAULT2.5 dCi 145 (JL0J)TRAFIC II Bus (JL)G9U630146Diesel2006–

Reviews

There are no reviews yet.

Be the first to review “AS-PL S3024 Startmotor — RENAULT, OPEL, NISSAN”

Your email address will not be published. Required fields are marked *

Related products
