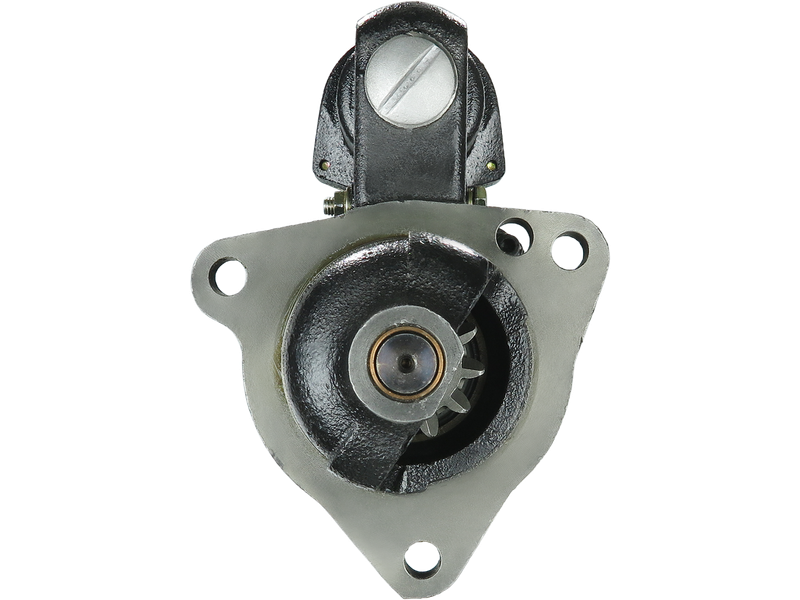

AS-PL S3034 Startmotor — RENAULT TRUCKS

AS-PL S3034 Startmotor — RENAULT TRUCKS

2 975,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: VALEO

Spänning [ V ] 24
Effekt [ kW ] 8.00
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 450.00
O.1 [ mm ] 21.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
O.4 [ mm ] 107.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
C.4 [ mm ] 13.50
AS-PLSTANDARD LINE
EAN5901259421989
ErsätterVALEO
OE-nummerD13HP709

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S3034 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från VALEO.

OE-nummer: D13HP709

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 8.00
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 450.00
O.1 [ mm ] 21.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
O.4 [ mm ] 107.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
C.4 [ mm ] 13.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
RENAULT TRUCKS390.24MAGNUMMIDR06.24.65A/423901996–2000
RENAULT TRUCKS420.18MAGNUMMIDR06.35.40P/414201996–1996
RENAULT TRUCKS420.18MAGNUMMIDR06.35.40P/414201996–1996
RENAULT TRUCKS420.19MAGNUMMIDR06.35.40P/414201996–1996
RENAULT TRUCKS420.19MAGNUMMIDR06.35.40P/414201996–1996
RENAULT TRUCKS420.24MAGNUMMIDR06.35.40P/414201996–1996
RENAULT TRUCKS420.26MAGNUMMIDR06.35.40P/414201996–1996
RENAULT TRUCKS430.22MAGNUMMIDR06.24.65B/424301996–2000
RENAULT TRUCKS430.22MAGNUMMIDR06.24.65B/424301996–2000
RENAULT TRUCKS430.24MAGNUMMIDR06.24.65B/424301996–2000
RENAULT TRUCKS430.24MAGNUMMIDR06.24.65B/424301996–2000
RENAULT TRUCKS430.24MAGNUMMIDR06.24.65B/424301996–2000
RENAULT TRUCKS440.19MAGNUMMIDR06.24.65B/464392000–2005
RENAULT TRUCKS440.19MAGNUMMIDR06.24.65B/464391996–2005
RENAULT TRUCKS440.22MAGNUMMIDR06.24.65B/464392000–2005
RENAULT TRUCKS440.22MAGNUMMIDR06.24.65B/464392000–2005
RENAULT TRUCKS440.24MAGNUMDXi124392005–2006
RENAULT TRUCKS440.24MAGNUMMIDR06.24.65B/464392000–2005
RENAULT TRUCKS440.24MAGNUMMIDR06.24.65B/464391999–2005
RENAULT TRUCKS440.24MAGNUMMIDR06.24.65B/464392000–2005
RENAULT TRUCKS440.26MAGNUMMIDR06.24.65B/464391999–2005
RENAULT TRUCKS470.22MAGNUMMIDR06.24.65C/424701996–2000
RENAULT TRUCKS470.22MAGNUMMIDR06.24.65C/424701996–2000
RENAULT TRUCKS470.24MAGNUMMIDR06.24.65C/424701996–2000
RENAULT TRUCKS470.24MAGNUMMIDR06.24.65C/424701996–2000
RENAULT TRUCKS470.24MAGNUMMIDR06.24.65C/424701996–2000
RENAULT TRUCKS470.26MAGNUMMIDR06.24.65C/424701996–2000
RENAULT TRUCKS480.19MAGNUMMIDR06.24.65C/464802000–2005
RENAULT TRUCKS480.19MAGNUMMIDR06.24.65C/464801996–2005
RENAULT TRUCKS480.22MAGNUMMIDR06.24.65C/464802000–2005
RENAULT TRUCKS480.22MAGNUMMIDR06.24.65C/464802000–2005
RENAULT TRUCKS480.24MAGNUMMIDR06.24.65C/464802000–2005
RENAULT TRUCKS480.24MAGNUMMIDR06.24.65C/464802000–2005
RENAULT TRUCKS480.24MAGNUMMIDR06.24.65C/464801999–2005
RENAULT TRUCKS480.26MAGNUMMIDR06.24.65C/464801999–2005
RENAULT TRUCKSAE 390.18MAGNUMMIDR06.24.65A/423901996–
RENAULT TRUCKSAE 390.18TMAGNUMMIDR06.24.65A/423901996–
RENAULT TRUCKSAE 390.19MAGNUMMIDR06.24.65A/423901996–
RENAULT TRUCKSAE 390.19TMAGNUMMIDR06.24.65A/423901996–
RENAULT TRUCKSAE 390.26MAGNUMMIDR06.24.65A/423901996–
RENAULT TRUCKSAE 420ti.18MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.18MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.18TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.18TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.19MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.19MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.19TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.19TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.22TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.22TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.24MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.24MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.24TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.24TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.26MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.26MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.26TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.26TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 430.18MAGNUMMIDR06.24.65B/424301996–
RENAULT TRUCKSAE 430.18TMAGNUMMIDR06.24.65B/424301996–
RENAULT TRUCKSAE 430.19MAGNUMMIDR06.24.65B/424301996–
RENAULT TRUCKSAE 430.19TMAGNUMMIDR06.24.65B/424301996–
RENAULT TRUCKSAE 430.26MAGNUMMIDR06.24.65B/424301996–
RENAULT TRUCKSAE 430.26TMAGNUMMIDR06.24.65B/424301998–
RENAULT TRUCKSAE 430.26TMAGNUMMIDR06.24.65B/424301997–
RENAULT TRUCKSAE 470.18MAGNUMMIDR06.24.65C/424711996–
RENAULT TRUCKSAE 470.18TMAGNUMMIDR06.24.65C/424711996–
RENAULT TRUCKSAE 470.19MAGNUMMIDR06.24.65C/424711996–
RENAULT TRUCKSAE 470.19TMAGNUMMIDR06.24.65C/424711996–
RENAULT TRUCKSAE 470.26MAGNUMMIDR06.24.65C/424711997–
RENAULT TRUCKSAE 470.26TMAGNUMMIDR06.24.65C/424711998–
RENAULT TRUCKSAE 520.18MAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSAE 520.18TMAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSAE 520.19MAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSAE 520.19TMAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSAE 520.22TMAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSAE 520.24MAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSAE 520.24TMAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSAE 520.26MAGNUMMack-EE9-5305301992–
RENAULT TRUCKSAE 520.26TMAGNUMMack-EE9-5305301992–1996
RENAULT TRUCKSDXi 12 440.24MAGNUMDXi124412004–2006
RENAULT TRUCKSE.TECH 400.18MAGNUMMACKE.TECHA/464012000–
RENAULT TRUCKSE.TECH 400.18TMAGNUMMACKE.TECHA/464012000–
RENAULT TRUCKSE.TECH 400.24MAGNUMMACKE.TECHA/464012000–
RENAULT TRUCKSE.TECH 400.26MAGNUMMACKE.TECHA/464012000–
RENAULT TRUCKSE.TECH 440.18MAGNUMMACKE.TECHB/464412000–
RENAULT TRUCKSE.TECH 440.18TMAGNUMMACKE.TECHB/464412000–
RENAULT TRUCKSE.TECH 440.24MAGNUMMACKE.TECHB/464412000–
RENAULT TRUCKSE.TECH 440.26MAGNUMMACKE.TECHB/464412000–
RENAULT TRUCKSE.TECH 440.26TMAGNUMMACKE.TECHB/464412000–
RENAULT TRUCKSE.TECH 440.26TMAGNUMMACKE.TECHB/464412000–
RENAULT TRUCKSE.TECH 480.18MAGNUMMACKE.TECHC/46472-4802000–
RENAULT TRUCKSE.TECH 480.18TMAGNUMMACKE.TECHC/46472-4802000–
RENAULT TRUCKSE.TECH 480.24MAGNUMMACKE.TECHC/46472-4802000–
RENAULT TRUCKSE.TECH 480.26MAGNUMMACKE.TECHC/46472-4802000–
RENAULT TRUCKSE.TECH 480.26TMAGNUMMACKE.TECHC/46472-4802000–
RENAULT TRUCKSE.TECH 480.26TMAGNUMMACKE.TECHC/46472-4802000–
RENAULT TRUCKSG 200.13MANAGERMIDR06.02.26H186-1961991–1993
RENAULT TRUCKSG 200.13MANAGERMIDR06.02.26Q186-1961991–1993
RENAULT TRUCKSG 200.15MANAGERMIDR06.02.26Q186-1961991–1993
RENAULT TRUCKSG 200.15MANAGERMIDR06.02.26H186-1961991–1993
RENAULT TRUCKSG 200.16MANAGERMIDR06.02.26Q186-1961991–1993
RENAULT TRUCKSG 200.16MANAGERMIDR06.02.26Q186-1961991–1993
RENAULT TRUCKSG 200.16MANAGERMIDR06.02.26H186-1961991–1993
RENAULT TRUCKSG 200.16MANAGERMIDR06.02.26H186-1961991–1993
RENAULT TRUCKSG 200.17MANAGERMIDR06.02.26H186-1961991–1993
RENAULT TRUCKSG 200.17MANAGERMIDR06.02.26Q186-1961991–1993
RENAULT TRUCKSG 200.18MANAGERMIDR06.02.26H186-1961991–1993
RENAULT TRUCKSG 200.18MANAGERMIDR06.02.26Q186-1961991–1993
RENAULT TRUCKSG 210.16MANAGERMIDR06.02.26W2051992–1996
RENAULT TRUCKSG 210.18MANAGERMIDR06.02.26W2051992–1996
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J3219-2281991–1996
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J3219-2281991–1996
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J219-2281991–1996
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J219-2281991–1996
RENAULT TRUCKSG 220.19 BOMMANAGERMIDS06.20.45J219-2281991–1996
RENAULT TRUCKSG 220.19 BOMMANAGERMIDS06.20.45J3219-2281991–1996
RENAULT TRUCKSG 230.13 SPMANAGERMIDS06.20.30230-2411991–1993
RENAULT TRUCKSG 230.13 SPMANAGERMIDS06.20.30P230-2411991–1993
RENAULT TRUCKSG 230ti.13MANAGERMIDR06.02.26X2261991–1993
RENAULT TRUCKSG 230ti.13MANAGERMIDR06.02.26D2261991–1993
RENAULT TRUCKSG 230ti.15MANAGERMIDR06.02.26X2261991–1993
RENAULT TRUCKSG 230ti.15MANAGERMIDR06.02.26D2261991–1993
RENAULT TRUCKSG 230ti.16MANAGERMIDR06.02.26X2261991–1996
RENAULT TRUCKSG 230ti.16MANAGERMIDR06.02.26D2261991–1996
RENAULT TRUCKSG 230ti.16MANAGERMIDR06.02.26D2261991–1996
RENAULT TRUCKSG 230ti.16MANAGERMIDR06.02.26X2261991–1996
RENAULT TRUCKSG 230ti.17MANAGERMIDR06.02.26D2261991–1996
RENAULT TRUCKSG 230ti.17MANAGERMIDR06.02.26X2261991–1996
RENAULT TRUCKSG 230ti.18MANAGERMIDR06.02.26X2261992–1996
RENAULT TRUCKSG 230ti.18MANAGERMIDR06.02.26X2261992–1996
RENAULT TRUCKSG 230ti.18MANAGERMIDR06.02.26D2261992–1996
RENAULT TRUCKSG 230ti.18MANAGERMIDR06.02.26D2261992–1996
RENAULT TRUCKSG 230ti.19MANAGERMIDR06.02.26X2261991–1996
RENAULT TRUCKSG 230ti.19MANAGERMIDR06.02.26D2261991–1996
RENAULT TRUCKSG 230ti.19MANAGERMIDR06.02.26D2261991–1996
RENAULT TRUCKSG 230ti.19MANAGERMIDR06.02.26X2261991–1996
RENAULT TRUCKSG 270.13 SPMANAGERMIDR06.20.45B32651993–1996
RENAULT TRUCKSG 270.14 SPMANAGERMIDR06.20.45B32651993–1996
RENAULT TRUCKSG 270.18,G 270.17MANAGERMIDR06.20.45B32651992–1996
RENAULT TRUCKSG 280.13,G 270.13MANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.13,G 270.13MANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.15,G 270.15MANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.15,G 270.15MANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.15/T,G 270.15/TMANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.15/T,G 270.15/TMANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.16MANAGERMIDS06.20.45B2751991–1993
RENAULT TRUCKSG 280.16,G 270.16MANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.16,G 270.16MANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.17,G 270.18MANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.17,G 270.18MANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.17/T,G 270.17/TMANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.17/T,G 270.17/TMANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.18,G 270.18,G 270.17MANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.18,G 270.18,G 270.17MANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.19MANAGERMIDS06.20.45B2751991–1993
RENAULT TRUCKSG 280.19,G 270.19MANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.19,G 270.19MANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 280.24MANAGERMIDS06.20.45B2751991–1993
RENAULT TRUCKSG 280.26,G 270.26MANAGERMIDS06.20.45B265-2751991–1996
RENAULT TRUCKSG 280.26,G 270.26MANAGERMIDR06.20.45B3265-2751991–1996
RENAULT TRUCKSG 300.13MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.13MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.15MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.15MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.15/TMANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.15/TMANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.16MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.16MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.16MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.16MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.17MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.17MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.17/TMANAGERMIDR06.20.45D33021992–1996
RENAULT TRUCKSG 300.17/TMANAGERMIDR06.20.45D3021992–1996
RENAULT TRUCKSG 300.18MANAGERMIDR06.20.45D3021992–1996
RENAULT TRUCKSG 300.18MANAGERMIDR06.20.45D33021992–1996
RENAULT TRUCKSG 300.18MANAGERMIDR06.20.45D33021992–1996
RENAULT TRUCKSG 300.18MANAGERMIDR06.20.45D3021992–1996
RENAULT TRUCKSG 300.19MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.19MANAGERMIDR06.20.45D3021991–1993
RENAULT TRUCKSG 300.19MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.19/TMANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.19/TMANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.19/TMANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.19/TMANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.24MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.24MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.24MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.24MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.24MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.24MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.25MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.25MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.25MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.25MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.26MANAGERMIDR06.20.45D33021991–1996
RENAULT TRUCKSG 300.26MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.26MANAGERMIDR06.20.45D3021991–1996
RENAULT TRUCKSG 300.26MANAGERMIDR06.20.45D33021991–1996

Visar 200 av 249 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S3034 Startmotor — RENAULT TRUCKS”

Your email address will not be published. Required fields are marked *

Related products
