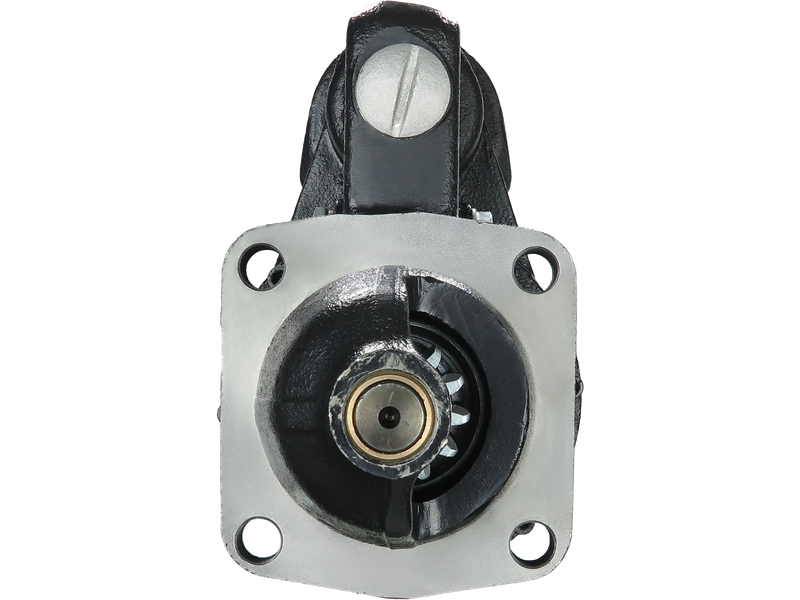

AS-PL S3047 Startmotor — RENAULT TRUCKS

AS-PL S3047 Startmotor — RENAULT TRUCKS

3 124,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: VALEO

Spänning [ V ] 24
Effekt [ kW ] 8.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 40.00
Antal kuggar [ qty. ] 12
Antal kuggar (passar in) [ qty. ] 12
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 450.00
O.1 [ mm ] 91.00
O.2 [ mm ] 91.00
O.3 [ mm ] 91.00
O.4 [ mm ] 91.00
C.1 [ mm ] 14.50
C.2 [ mm ] 14.50
C.3 [ mm ] 14.50
C.4 [ mm ] 14.50
AS-PLSTANDARD LINE
EAN5901259422122
ErsätterVALEO
OE-nummerD13HP703

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S3047 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från VALEO.

OE-nummer: D13HP703

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 8.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 40.00
Antal kuggar [ qty. ] 12
Antal kuggar (passar in) [ qty. ] 12
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 450.00
O.1 [ mm ] 91.00
O.2 [ mm ] 91.00
O.3 [ mm ] 91.00
O.4 [ mm ] 91.00
C.1 [ mm ] 14.50
C.2 [ mm ] 14.50
C.3 [ mm ] 14.50
C.4 [ mm ] 14.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
RENAULT TRUCKS260.18KERAXMIDR06.20.45C/42561997–
RENAULT TRUCKS260.18/BKERAXMIDR06.20.45C/42561997–
RENAULT TRUCKS300.18/BKERAXMIDR06.20.45D/412981997–
RENAULT TRUCKS300.26/A,300.26/BKERAXMIDR06.20.45D/412981997–
RENAULT TRUCKS300.26/A,300.26/BKERAXMIDR06.20.45D/412981997–
RENAULT TRUCKS300.26/BKERAXMIDR06.20.45D/412981997–
RENAULT TRUCKS312RMIDR06.20.45L2541987–1996
RENAULT TRUCKS340.18KERAXMIDR06.20.45E/413391997–
RENAULT TRUCKS340.18/BKERAXMIDR06.20.45E/413391997–
RENAULT TRUCKS340.26/A,340.26/BKERAXMIDR06.20.45E/413391997–
RENAULT TRUCKS340.26/A,340.26/BKERAXMIDR06.20.45E/413391997–
RENAULT TRUCKS340.26/BKERAXMIDR06.20.45E/413391997–
RENAULT TRUCKS340.32/AKERAXMIDR06.20.45E/413391997–
RENAULT TRUCKS340.32/AKERAXMIDR06.20.45E/413391997–
RENAULT TRUCKS350.34KERAXMIDR06.23.56A/33472003–
RENAULT TRUCKS385.18KERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.18/BKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.18TKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.18TKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.26KERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.26/A,385.26/BKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.26/A,385.26/B,385.26/CKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.26/BKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.26TKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.32/A,385.32/BKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.32/A,385.32/B,385.32/CKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS385.32/BKERAXMIDR06.23.56A/413811997–
RENAULT TRUCKS400.18KERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.18TKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.18TKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.26KERAXMIDR06.23.56B/413921998–2006
RENAULT TRUCKS400.26/A,400.26/B,400.26/CKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.26/BKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.26/BKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.26TKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.32/A,400.32/B,400.32/CKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKS400.32/BKERAXMIDR06.23.56B/413922000–
RENAULT TRUCKSAE 380.18MAGNUMMIDR06.35.40H3801990–1992
RENAULT TRUCKSAE 380.18TMAGNUMMIDR06.35.40H3801990–1992
RENAULT TRUCKSAE 380.26MAGNUMMIDR06.35.40H3801990–1992
RENAULT TRUCKSAE 380.26TMAGNUMMIDR06.35.40H3801990–1992
RENAULT TRUCKSAE 380.26TMAGNUMMIDR06.35.40H3801990–1992
RENAULT TRUCKSAE 385ti.18MAGNUMMIDR06.35.40N/33851992–1996
RENAULT TRUCKSAE 385ti.18TMAGNUMMIDR06.35.40N/33851992–1996
RENAULT TRUCKSAE 385ti.19MAGNUMMIDR06.35.40N/33851992–1996
RENAULT TRUCKSAE 385ti.19TMAGNUMMIDR06.35.40N/33851992–1996
RENAULT TRUCKSAE 385ti.24MAGNUMMIDR06.35.40N/33851992–1996
RENAULT TRUCKSAE 385ti.26MAGNUMMIDR06.35.40N/33851992–1996
RENAULT TRUCKSAE 420ti.18MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.18MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.18TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.18TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.19MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.19MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.19TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.19TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.22TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.22TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.24MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.24MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.24TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.24TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.26MAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAE 420ti.26MAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.26TMAGNUMMIDR06.35.40J/34151992–1996
RENAULT TRUCKSAE 420ti.26TMAGNUMMIDR06.35.40P/414151992–1996
RENAULT TRUCKSAgoraAGORAMIDR06.20.45I41253-2561996–
RENAULT TRUCKSAgoraAGORAMIDR06.20.45I41253-2561996–
RENAULT TRUCKSAresARESMIDR06.20.45M413401998–2003
RENAULT TRUCKSAresARESMIDR06.20.45R413022001–2003
RENAULT TRUCKSC 210.19CMIDS06.20.30N2081983–1990
RENAULT TRUCKSC 210.19CMIDS06.20.302081983–1990
RENAULT TRUCKSC 260.19CMIDS06.20.45B2611982–1991
RENAULT TRUCKSC 260.19,C 280.19CMIDS06.20.45B261-2751982–1998
RENAULT TRUCKSC 260.19TCMIDS06.20.45B2611982–1990
RENAULT TRUCKSC 260.19TCMIDS06.20.45B2611982–1998
RENAULT TRUCKSC 260.26CMIDS06.20.45B2611982–1991
RENAULT TRUCKSC 260.26CMIDS06.20.45B2611982–1991
RENAULT TRUCKSC 280.19CMIDS06.20.45B2751992–1993
RENAULT TRUCKSC 290.19CMIDR06.20.45D2911986–1990
RENAULT TRUCKSC 290.19,C 300.19CMIDR06.20.45D3291-3021982–1998
RENAULT TRUCKSC 290.19,C 300.19CMIDR06.20.45D291-3021982–1998
RENAULT TRUCKSC 290.19/TCMIDR06.20.45D2911986–1991
RENAULT TRUCKSC 290.19/TCMIDR06.20.45D2911986–1991
RENAULT TRUCKSC 290.26,C 300.26CMIDR06.20.45D291-3021986–1998
RENAULT TRUCKSC 290.26,C 300.26CMIDR06.20.45D3291-3021982–1998
RENAULT TRUCKSC 290.26,C 300.26CMIDR06.20.45D291-3021982–1998
RENAULT TRUCKSC 290.26,C 300.26CMIDR06.20.45D3291-3021986–1998
RENAULT TRUCKSC 300.19CMIDR06.20.45D33021987–1998
RENAULT TRUCKSC 300.19CMIDR06.20.45D33021987–1998
RENAULT TRUCKSC 300.19CMIDR06.20.45D33021987–1998
RENAULT TRUCKSC 300.19CMIDR06.20.45D3021987–1998
RENAULT TRUCKSC 300.19CMIDR06.20.45D3021987–1998
RENAULT TRUCKSC 300.19CMIDR06.20.45D3021987–1998
RENAULT TRUCKSC 300.24CMIDR06.20.45D3021987–1998
RENAULT TRUCKSC 300.24CMIDR06.20.45D3021987–1998
RENAULT TRUCKSC 300.24CMIDR06.20.45D33021987–1998
RENAULT TRUCKSC 300.24CMIDR06.20.45D33021987–1998
RENAULT TRUCKSC 300.26CMIDR06.20.45D33021987–1998
RENAULT TRUCKSC 300.26CMIDR06.20.45D3021987–1998
RENAULT TRUCKSC 340.19/TCMIDR06.20.45E3391990–1998
RENAULT TRUCKSC 340.19/TCMIDR06.20.45E33391990–1998
RENAULT TRUCKSC 340.19/TCMIDR06.20.45E23391990–1998
RENAULT TRUCKSC 340ti.17/TCMIDR06.20.45E23391990–1998
RENAULT TRUCKSC 340ti.17/TCMIDR06.20.45E23391990–1998
RENAULT TRUCKSC 340ti.17/TCMIDR06.20.45E3391990–1998
RENAULT TRUCKSC 340ti.17/TCMIDR06.20.45E33391990–1998
RENAULT TRUCKSC 340ti.17/TCMIDR06.20.45E3391990–1998
RENAULT TRUCKSC 340ti.17/TCMIDR06.20.45E33391990–1998
RENAULT TRUCKSC 340ti.19/TCMIDR06.20.45E3391990–1998
RENAULT TRUCKSC 340ti.19/TCMIDR06.20.45E33391990–1998
RENAULT TRUCKSC 340ti.19/TCMIDR06.20.45E23391990–1998
RENAULT TRUCKSCCH 300.26CMIDR06.20.45D3021990–1993
RENAULT TRUCKSCCH 300.26CMIDR06.20.45D3021990–1993
RENAULT TRUCKSCCH 300.30CMIDR06.20.45D3021990–1993
RENAULT TRUCKSCCH 300.30CMIDR06.20.45D3021990–1993
RENAULT TRUCKSCLR 220.19CMIDS06.20.30N2201983–1990
RENAULT TRUCKSCLR 220.19CMIDS06.20.30N12201986–1991
RENAULT TRUCKSDistribution 260.16PREMIUMMIDR06.20.45C/42561996–
RENAULT TRUCKSDistribution 260.16PREMIUMMIDR06.20.45C/42601996–2001
RENAULT TRUCKSDistribution 260.18PREMIUMMIDR06.20.45C/42601996–2001
RENAULT TRUCKSDistribution 260.18PREMIUMMIDR06.20.45C/42561996–
RENAULT TRUCKSDistribution 260.19PREMIUMMIDR06.20.45C/42561996–
RENAULT TRUCKSDistribution 260.19PREMIUMMIDR06.20.45C/42601996–2001
RENAULT TRUCKSDistribution 260.26PREMIUMMIDR06.20.45C/42601996–1999
RENAULT TRUCKSDistribution 300.16PREMIUMMIDR06.20.45D/413001996–2001
RENAULT TRUCKSDistribution 300.16DPREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 300.16TPREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 300.18PREMIUMMIDR06.20.45D/413001996–2001
RENAULT TRUCKSDistribution 300.18DPREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 300.18D/TPREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 300.19PREMIUMMIDR06.20.45D/413001996–2001
RENAULT TRUCKSDistribution 300.19PREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 300.19D/TPREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 300.26PREMIUMMIDR06.20.45D/413001996–1999
RENAULT TRUCKSDistribution 300.26PREMIUMMIDR06.20.45D/413001998–2001
RENAULT TRUCKSDistribution 300.26DPREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 300.26DPREMIUMMIDR06.20.45D/412981996–
RENAULT TRUCKSDistribution 340.18DPREMIUMMIDR06.20.45E/413391996–
RENAULT TRUCKSDistribution 340.18D/TPREMIUMMIDR06.20.45E/413391996–
RENAULT TRUCKSDistribution 340.19DPREMIUMMIDR06.20.45E/413391996–
RENAULT TRUCKSDistribution 340.19D/TPREMIUMMIDR06.20.45E/413391996–
RENAULT TRUCKSDistribution 340.26PREMIUMMIDR06.20.45E/413401998–2001
RENAULT TRUCKSDistribution 340.26DPREMIUMMIDR06.20.45E/413391996–
RENAULT TRUCKSDistribution 340.26DPREMIUMMIDR06.20.45E/413391996–
RENAULT TRUCKSDistribution 400.18D/TPREMIUMMIDR06.23.56B/413922000–
RENAULT TRUCKSFR1FR1MIDR06.20.45M33401983–
RENAULT TRUCKSFR1FR1MIDR06.20.45A22751983–
RENAULT TRUCKSFR1FR1MIDR06.20.45D33021983–
RENAULT TRUCKSFR1FR1MIDR06.20.45D3021983–
RENAULT TRUCKSFRH, GTX, GTXE, RTX, TXILIADEMIDR06.23.56A/413811997–
RENAULT TRUCKSG 210.16GMIDS06.20.30N1208-2201983–1990
RENAULT TRUCKSG 210.16GMIDS06.20.30N208-2201983–1990
RENAULT TRUCKSG 210.16/TGMIDS06.20.30N2081983–1990
RENAULT TRUCKSG 210.17 BOMGMIDS06.20.30N208-2201983–1990
RENAULT TRUCKSG 210.17 BOMGMIDS06.20.30N208-2201983–1990
RENAULT TRUCKSG 210.17 BOMGMIDS06.20.30N1208-2201983–1990
RENAULT TRUCKSG 210.17 BOMGMIDS06.20.30N1208-2201983–1990
RENAULT TRUCKSG 210.18 BOMGMIDS06.20.30N1208-2201983–1990
RENAULT TRUCKSG 210.18 BOMGMIDS06.20.30N208-2201983–1990
RENAULT TRUCKSG 210.19GMIDS06.20.30N208-2201983–1990
RENAULT TRUCKSG 210.19GMIDS06.20.30N1208-2201983–1990
RENAULT TRUCKSG 210.19 BOMGMIDS06.20.30N1208-2201983–1990
RENAULT TRUCKSG 210.19 BOMGMIDS06.20.30N208-2201983–1990
RENAULT TRUCKSG 210.19/TGMIDS06.20.30N2081983–1990
RENAULT TRUCKSG 220.17 BOMGMIDS06.20.45J2191991–1991
RENAULT TRUCKSG 220.17 BOMGMIDS06.20.45J2191991–1991
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J3219-2281991–1996
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J219-2281991–1996
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J219-2281991–1996
RENAULT TRUCKSG 220.17 BOMMANAGERMIDS06.20.45J3219-2281991–1996
RENAULT TRUCKSG 220.19 BOMGMIDS06.20.45J2191991–1991
RENAULT TRUCKSG 220.19 BOMMANAGERMIDS06.20.45J3219-2281991–1996
RENAULT TRUCKSG 220.19 BOMMANAGERMIDS06.20.45J219-2281991–1996
RENAULT TRUCKSG 230.11GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.13GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.13 SPGMIDS06.20.30P230-2411985–1991
RENAULT TRUCKSG 230.13 SPMANAGERMIDS06.20.30P230-2411991–1993
RENAULT TRUCKSG 230.13 SPMANAGERMIDS06.20.30230-2411991–1993
RENAULT TRUCKSG 230.15GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.15/TGMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.16GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.16GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.17GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.17GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.17GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.17/TGMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.19GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.19GMIDS06.20.30P230-2411985–1990
RENAULT TRUCKSG 230.19/TGMIDS06.20.30P2301985–1993
RENAULT TRUCKSG 260.15/TGMIDS06.20.45261-2751982–1990
RENAULT TRUCKSG 260.16GMIDS06.20.45261-2751982–1990
RENAULT TRUCKSG 260.16GMIDS06.20.45261-2751982–1990
RENAULT TRUCKSG 260.17GMIDS06.20.45261-2751982–1990
RENAULT TRUCKSG 260.17GMIDS06.20.45261-2751982–1990
RENAULT TRUCKSG 260.17GMIDS06.20.45261-2751982–1990
RENAULT TRUCKSG 260.17GMIDS06.20.45B2751990–1991
RENAULT TRUCKSG 260.17/TGMIDS06.20.45261-2751982–1990
RENAULT TRUCKSG 260.19GMIDS06.20.452611982–1990
RENAULT TRUCKSG 260.19GMIDS06.20.45B261-2751982–1990

Visar 200 av 645 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S3047 Startmotor — RENAULT TRUCKS”

Your email address will not be published. Required fields are marked *

Related products
