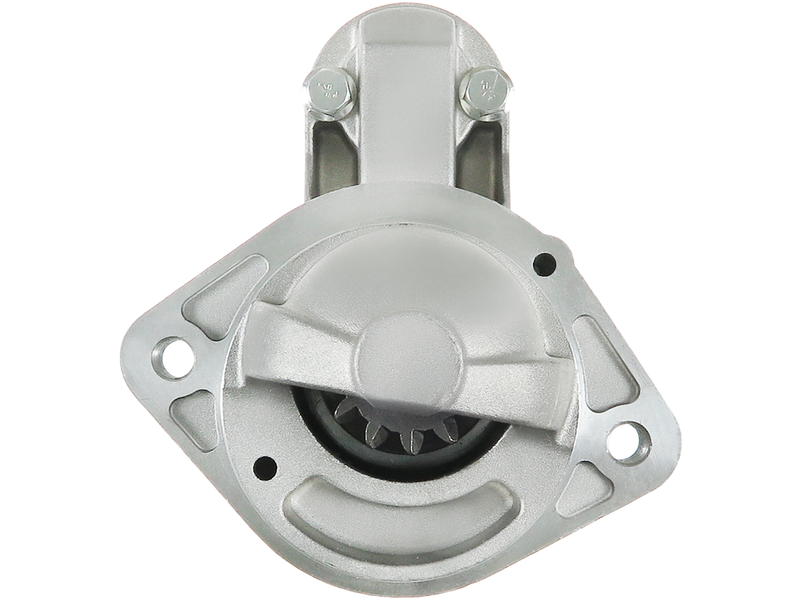

AS-PL S3224S Startmotor — HYUNDAI

AS-PL S3224S Startmotor — HYUNDAI

835,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: VALEO

Spänning [ V ] 12
Effekt [ kW ] 2.20
Startmotors rotation CW
A-storlek [ mm ] 79.00
B-storlek [ mm ] 19.00
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 209.00
O.1 [ mm ] 105.00
C.1 [ mm ] M10x1.25
C.2 [ mm ] M10x1.25
AS-PLSTANDARD LINE
EAN5902129138730
ErsätterVALEO
OE-nummer36100-4A900

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S3224S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från VALEO.

OE-nummer: 36100-4A900

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.20
Startmotors rotation CW
A-storlek [ mm ] 79.00
B-storlek [ mm ] 19.00
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 209.00
O.1 [ mm ] 105.00
C.1 [ mm ] M10x1.25
C.2 [ mm ] M10x1.25

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
HYUNDAI2.5 CRDIH-1 Travel (TQ)D4CB136Diesel2008–
HYUNDAI2.5 CRDIH350 BusD4CB150Diesel2015–
HYUNDAI2.5 CRDIH350 BusD4CB170Diesel2015–
HYUNDAI2.5 CRDIH350 Platform/ChassisD4CB150Diesel2015–
HYUNDAI2.5 CRDIH350 Platform/ChassisD4CB170Diesel2015–
HYUNDAI2.5 CRDIH350 VanD4CB170Diesel2015–
HYUNDAI2.5 CRDIH350 VanD4CB150Diesel2015–
HYUNDAI2.5 CRDiH-1 Cargo (TQ)D4CB110Diesel2008–
HYUNDAI2.5 CRDiH-1 Cargo (TQ)D4CB116Diesel2009–
HYUNDAI2.5 CRDiH-1 Cargo (TQ)D4CB163Diesel2008–
HYUNDAI2.5 CRDiH-1 Cargo (TQ)D4CB136Diesel2009–
HYUNDAI2.5 CRDiH-1 Cargo (TQ)D4CB170Diesel2008–
HYUNDAI2.5 CRDiH-1 Travel (TQ)D4CB116Diesel2011–
HYUNDAI2.5 CRDiH-1 Travel (TQ)D4CB163Diesel2008–
HYUNDAI2.5 CRDiH-1 Travel (TQ)D4CB170Diesel2008–
HYUNDAI2.5 CRDiH-1 Travel (TQ)D4CB110Diesel2010–
