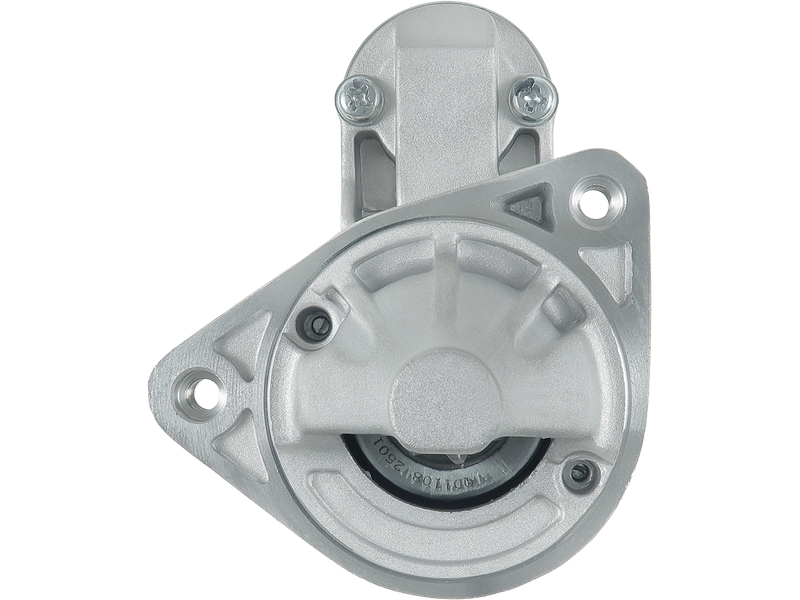

AS-PL S3284S Startmotor — CHEVROLET, DAEWOO, SUZUKI

785,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: VALEO

Spänning [ V ] 12
Effekt [ kW ] 0.80
Startmotors rotation CW
A-storlek [ mm ] 75.00
B-storlek [ mm ] 6.50
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 186.00
O.1 [ mm ] 93.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] M8x1.25
AS-PLSTANDARD LINE
EAN5902129255246
ErsätterVALEO
OE-nummerTM000A23501

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S3284S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från VALEO.

OE-nummer: TM000A23501

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 0.80
Startmotors rotation CW
A-storlek [ mm ] 75.00
B-storlek [ mm ] 6.50
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 186.00
O.1 [ mm ] 93.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] M8x1.25

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CHEVROLET0.8MATIZ (M200, M250)LQ2(49CUL3)52Petrol2005–2013
CHEVROLET0.8MATIZ (M200, M250)LBF(49CUL3)52Petrol2005–2013
CHEVROLET0.8SPARKLQ2(49CUL3)50Petrol2005–2010
CHEVROLET0.8SPARKLBF(49CUL3)50Petrol2005–2010
CHEVROLET0.8SPARK (M150)F8CV52Petrol2000–2006
CHEVROLET0.8 LPGMATIZ (M200, M250)LBF(49CUL3)52Petrol/Liquified Petroleum Gas (LPG)2005–2007
CHEVROLET0.8 LPGMATIZ (M200, M250)LQ2(49CUL3)52Petrol/Liquified Petroleum Gas (LPG)2005–2007
CHEVROLET1.0MATIZ (M200, M250)LQ4(61CUL4)67Petrol2005–
CHEVROLET1.0MATIZ (M200, M250)LQ4(61CUL4)64Petrol2005–2007
CHEVROLET1.0SPARK (M300)LMT68Petrol2010–
CHEVROLET1.0SPARK (M300)B10D168Petrol2010–
CHEVROLET1.0 LPGSPARK (M300)LMT65Petrol/Liquified Petroleum Gas (LPG)2010–
CHEVROLET1.0 LPGSPARK (M300)LMT68Petrol/Liquified Petroleum Gas (LPG)2010–
DAEWOO0.8MATIZ (M100, M150)F8CV52Petrol1998–
DAEWOO0.8MATIZ (M200, M250)F8CV52Petrol2005–2010
DAEWOO0.8MATIZ Hatchback Van (KLA4)F8CV52Petrol1998–2002
DAEWOO0.8TICO (KLY3)F8CV52Petrol1996–2000
DAEWOO0.8TICO (KLY3)F8C48Petrol1995–2000
DAEWOO1.0MATIZ (M100, M150)B10S63Petrol2003–2004
DAEWOO1.0MATIZ (M100, M150)B10S64Petrol2003–
DAEWOO1.0MATIZ (M200, M250)LQ4(61CUL4)67Petrol2005–2008
DAEWOO1.0MATIZ (M200, M250)LA2(61CUL4)67Petrol2005–2008
SUZUKI1.0 (RC410, SR410, SR412)WAGON R+ Hatchback (EM)K10A65Petrol1998–2000
SUZUKI1.2 (SR412)WAGON R+ Hatchback (EM)K12A69Petrol1998–2000
SUZUKI1.2 4WD (SR412)WAGON R+ Hatchback (EM)K12A69Petrol1998–2000
