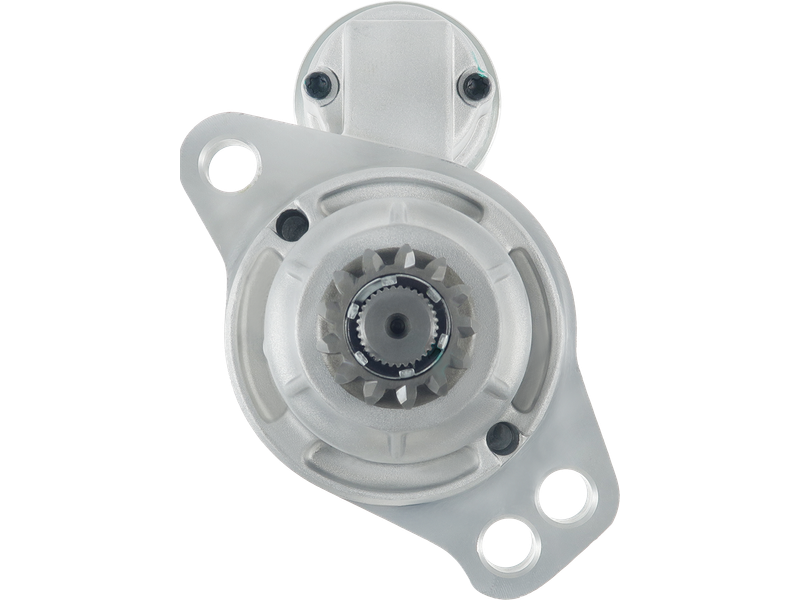

AS-PL S3294S Startmotor — SKODA, VW, SEAT

AS-PL S3294S Startmotor — SKODA, VW, SEAT

775,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: VALEO

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation ACW
A-storlek [ mm ] 79.00
B-storlek [ mm ] 62.50
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 212.00
O.1 [ mm ] 111.00
O.2 [ mm ] 17.00
O.3 [ mm ] 111.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.50
C.3 [ mm ] 12.50
AS-PLSTANDARD LINE
EAN5902129265221
ErsätterVALEO
OE-nummerTSC12R12

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S3294S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från VALEO.

OE-nummer: TSC12R12

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation ACW
A-storlek [ mm ] 79.00
B-storlek [ mm ] 62.50
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 212.00
O.1 [ mm ] 111.00
O.2 [ mm ] 17.00
O.3 [ mm ] 111.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.50
C.3 [ mm ] 12.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
AUDI1.4 TFSIA1 (8X1, 8XK)CZDD125Petrol2014–2018
AUDI1.4 TFSIA1 (8X1, 8XK)CZCA125Petrol2014–2018
AUDI1.4 TFSIA1 Sportback (8XA, 8XF)CZDD125Petrol2014–2018
AUDI1.4 TFSIA1 Sportback (8XA, 8XF)CZCA125Petrol2014–2018
AUDI1.4 TFSIQ3 (8UB, 8UG)CZDB125Petrol2016–2018
AUDI1.4 TSIA1 (8X1, 8XK)CZEA150Petrol2014–2018
AUDI1.4 TSIA1 Sportback (8XA, 8XF)CZEA150Petrol2014–2018
AUDI1.4 TSIQ3 (8UB, 8UG)CHPB150Petrol2013–2018
AUDI1.4 TSIQ3 (8UB, 8UG)CZEA150Petrol2013–2018
AUDI1.4 TSIQ3 (8UB, 8UG)CZDA150Petrol2013–2018
AUDIS3 quattroA3 (8V1, 8VK)CJXB280Petrol2013–2014
AUDIS3 quattroA3 (8V1, 8VK)DJHB290Petrol2016–2017
AUDIS3 quattroA3 (8V1, 8VK)CJXD290Petrol2016–2017
AUDIS3 quattroA3 (8V1, 8VK)DJHA310Petrol2016–2017
AUDIS3 quattroA3 (8V1, 8VK)CJXC300Petrol2012–2016
AUDIS3 quattroA3 (8V1, 8VK)CJXG310Petrol2016–2017
AUDIS3 quattroA3 (8V1, 8VK)CJXF286Petrol2014–2016
AUDIS3 quattroA3 Limousine (8VS, 8VM)DJHA310Petrol2016–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXC300Petrol2013–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXG310Petrol2016–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXF286Petrol2014–2016
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXB280Petrol2013–2014
AUDIS3 quattroA3 Limousine (8VS, 8VM)DNUE300Petrol2013–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXF286Petrol2014–2016
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXG310Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXC300Petrol2012–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)DJHB290Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXB280Petrol2013–2016
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXD290Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)DJHA310Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)DNUE300Petrol2012–2020
BMWxDrive 30 dX5 (E70)N57D30A245Diesel2010–2013
BMWxDrive 30 dX5 (E70)N57D30A211Diesel2008–2013
SEAT1.0IBIZA IV (6J5, 6P1)CHYB75Petrol2015–2017
SEAT1.0IBIZA IV SC (6J1, 6P5)CHYB75Petrol2015–2016
SEAT1.0IBIZA IV ST (6J8, 6P8)CHYB75Petrol2015–2016
SEAT1.0IBIZA V (KJ1, KJG)CHYC65Petrol2017–
SEAT1.0IBIZA V (KJ1, KJG)CHYB75Petrol2017–
SEAT1.0IBIZA V (KJ1, KJG)DFNB65Petrol2017–
SEAT1.0Mii (KF1, KE1)CHYA60Petrol2011–2019
SEAT1.0Mii (KF1, KE1)CHYB75Petrol2011–2019
SEAT1.0 EcoFuelMii (KF1, KE1)CPGA68Petrol/Compressed Natural Gas (CNG)2012–2019
SEAT1.0 MPiIBIZA V (KJ1, KJG)DFNA80Petrol2018–
SEAT1.0 MPiIBIZA V (KJ1, KJG)DSGD80Petrol2018–
SEAT1.0 MPiIBIZA V (KJ1, KJG)DSGB80Petrol2018–
SEAT1.0 TGIIBIZA V (KJ1, KJG)DBYA90Petrol/Compressed Natural Gas (CNG)2017–
SEAT1.0 TGiARONA (KJ7, KJP)DBYA90Petrol/Compressed Natural Gas (CNG)2018–
SEAT1.0 TSIARONA (KJ7, KJP)DKLA95Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DUSB95Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)CHZL95Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DLAC95Petrol2017–
SEAT1.0 TSIIBIZA IV (6J5, 6P1)CHZB95Petrol2015–2017
SEAT1.0 TSIIBIZA IV (6J5, 6P1)CHZC110Petrol2015–2017
SEAT1.0 TSIIBIZA IV SC (6J1, 6P5)CHZC110Petrol2015–2016
SEAT1.0 TSIIBIZA IV SC (6J1, 6P5)CHZB95Petrol2015–2016
SEAT1.0 TSIIBIZA IV ST (6J8, 6P8)CHZC110Petrol2015–2016
SEAT1.0 TSIIBIZA IV ST (6J8, 6P8)CHZB95Petrol2015–2016
SEAT1.0 TSIIBIZA V (KJ1, KJG)CHZL95Petrol2017–
SEAT1.0 TSIIBIZA V (KJ1, KJG)DLAC95Petrol2017–
SEAT1.0 TSIIBIZA V (KJ1, KJG)DKLA95Petrol2017–
SEAT1.0 TSIIBIZA V (KJ1, KJG)DUSB95Petrol2017–
SEAT1.2 TSIIBIZA IV (6J5, 6P1)CJZC90Petrol2015–2017
SEAT1.2 TSIIBIZA IV (6J5, 6P1)CJZD110Petrol2015–2017
SEAT1.2 TSIIBIZA IV SC (6J1, 6P5)CJZD110Petrol2015–2016
SEAT1.2 TSIIBIZA IV SC (6J1, 6P5)CJZC90Petrol2015–2016
SEAT1.2 TSIIBIZA IV ST (6J8, 6P8)CJZD110Petrol2015–2016
SEAT1.2 TSIIBIZA IV ST (6J8, 6P8)CJZC90Petrol2015–2016
SEAT1.2 TSILEON (5F1)CJZB86Petrol2012–2018
SEAT1.2 TSILEON (5F1)CYVB110Petrol2014–2020
SEAT1.2 TSILEON (5F1)CJZA105Petrol2013–2020
SEAT1.2 TSILEON (5F1)CYVA86Petrol2012–2018
SEAT1.2 TSILEON Hatchback Van (5F1)CYVB110Petrol2014–2018
SEAT1.2 TSILEON Hatchback Van (5F1)CYVA86Petrol2013–2018
SEAT1.2 TSILEON Hatchback Van (5F1)CJZB86Petrol2013–2018
SEAT1.2 TSILEON SC (5F5)CYVB110Petrol2014–2018
SEAT1.2 TSILEON SC (5F5)CJZB86Petrol2013–2018
SEAT1.2 TSILEON SC (5F5)CJZA105Petrol2013–2014
SEAT1.2 TSILEON SC (5F5)CYVA86Petrol2013–2018
SEAT1.2 TSILEON ST (5F8)CJZB86Petrol2013–2018
SEAT1.2 TSILEON ST (5F8)CJZA105Petrol2013–2020
SEAT1.2 TSILEON ST (5F8)CYVB110Petrol2014–2020
SEAT1.2 TSILEON ST (5F8)CYVA86Petrol2013–2018
SEAT1.2 TSILEON ST Estate Van (5F8)CYVB110Petrol2014–2018
SEAT1.2 TSILEON ST Estate Van (5F8)CYVA86Petrol2013–2018
SEAT1.2 TSILEON ST Estate Van (5F8)CJZB86Petrol2013–2018
SEAT1.2 TSITOLEDO IV (KG3)CJZD110Petrol2015–2017
SEAT1.2 TSITOLEDO IV (KG3)CJZC90Petrol2015–2017
SEAT1.4 TDIIBIZA IV (6J5, 6P1)CUTA105Diesel2015–2017
SEAT1.4 TDIIBIZA IV (6J5, 6P1)CUSB90Diesel2015–2017
SEAT1.4 TDIIBIZA IV (6J5, 6P1)CYZA105Diesel2015–2017
SEAT1.4 TDIIBIZA IV (6J5, 6P1)CUSA75Diesel2015–2017
SEAT1.4 TDIIBIZA IV ST (6J8, 6P8)CUSA75Diesel2015–2016
SEAT1.4 TDIIBIZA IV ST (6J8, 6P8)CUTA105Diesel2015–2016
SEAT1.4 TDIIBIZA IV ST (6J8, 6P8)CUSB90Diesel2015–2016
SEAT1.4 TDIIBIZA IV ST (6J8, 6P8)CYZA105Diesel2015–2016
SEAT1.4 TSILEON Hatchback Van (5F1)CXSA122Petrol2012–2016
SEAT1.4 TSILEON Hatchback Van (5F1)CPTA140Petrol2012–2016
SEAT1.4 TSILEON Hatchback Van (5F1)CMBA122Petrol2012–2016
SEAT1.4 TSILEON Hatchback Van (5F1)CHPA140Petrol2012–2016
SEAT1.6IBIZA IV (6J5, 6P1)CWVA110Petrol2015–2017
SEAT1.6IBIZA IV SC (6J1, 6P5)CWVA110Petrol2015–2016
SEAT1.6TOLEDO IV (KG3)CFNA105Petrol2013–2015
SEAT1.6 TDILEON Hatchback Van (5F1)CLHB90Diesel2012–2016
SEAT1.6 TDILEON Hatchback Van (5F1)CXXB110Diesel2013–2016
SEAT1.6 TDILEON Hatchback Van (5F1)CRKB110Diesel2013–2016
SEAT1.6 TDILEON Hatchback Van (5F1)DBKA110Diesel2013–2016
SEAT1.8 TFSILEON Hatchback Van (5F1)CJSA180Petrol2013–2018
SEAT1.8 TSI CupraIBIZA IV SC (6J1, 6P5)DAJA192Petrol2015–2016
SEAT2.0 CupraLEON (5F1)CJXA280Petrol2013–2020
SEAT2.0 CupraLEON (5F1)CJXH290Petrol2015–2020
SEAT2.0 CupraLEON (5F1)CJXE265Petrol2013–2020
SEAT2.0 CupraLEON (5F1)DNUC290Petrol2015–2020
SEAT2.0 CupraLEON Hatchback Van (5F1)CJXH290Petrol2015–2016
SEAT2.0 CupraLEON SC (5F5)CJXE265Petrol2013–2016
SEAT2.0 CupraLEON SC (5F5)CJXH290Petrol2015–2016
SEAT2.0 CupraLEON SC (5F5)CJXA280Petrol2013–2016
SEAT2.0 CupraLEON ST (5F8)CJXH290Petrol2015–2020
SEAT2.0 CupraLEON ST (5F8)CJXE265Petrol2013–2020
SEAT2.0 CupraLEON ST (5F8)DNUC290Petrol2015–2020
SEAT2.0 CupraLEON ST (5F8)CJXA280Petrol2013–2020
SEAT2.0 CupraLEON ST Estate Van (5F8)CJXA280Petrol2013–2020
SEAT2.0 Cupra 4DriveLEON ST (5F8)CJXC300Petrol2016–2020
SEAT2.0 Cupra 4DriveLEON ST (5F8)DNUE300Petrol2016–2020
SEAT2.0 TDILEON Hatchback Van (5F1)CRMB150Diesel2012–2018
SEAT2.0 TDILEON Hatchback Van (5F1)CUPA184Diesel2013–2018
SEAT2.0 TDILEON Hatchback Van (5F1)CKFC150Diesel2012–2018
SEAT2.0 TDILEON Hatchback Van (5F1)CUNA184Diesel2013–2018
SKODA1.0CITIGO (NF1)CHYA60Petrol2011–2019
SKODA1.0CITIGO (NF1)CHYB75Petrol2011–2019
SKODA1.0FABIA III (NJ3)CHYB75Petrol2014–2021
SKODA1.0FABIA III (NJ3)CHYE60Petrol2014–2021
SKODA1.0FABIA III (NJ3)CHYA60Petrol2014–2021
SKODA1.0FABIA III Estate (NJ5)CHYB75Petrol2014–2022
SKODA1.0FABIA III Estate (NJ5)CHYE60Petrol2014–2022
SKODA1.0FABIA III Estate (NJ5)CHYA60Petrol2014–2022
SKODA1.0FABIA III Praktik (NJ5)CHYA60Petrol2014–2022
SKODA1.0FABIA III Praktik (NJ5)CHYB75Petrol2014–2022
SKODA1.0 CNGCITIGO (NF1)CPGA68CNG2012–2019
SKODA1.0 TSIFABIA III (NJ3)CHZC110Petrol2014–2021
SKODA1.0 TSIFABIA III (NJ3)DKLD95Petrol2014–2021
SKODA1.0 TSIFABIA III (NJ3)CHZB95Petrol2014–2021
SKODA1.0 TSIFABIA III (NJ3)DKRC110Petrol2014–2021
SKODA1.0 TSIFABIA III Estate (NJ5)DKRC110Petrol2014–2022
SKODA1.0 TSIFABIA III Estate (NJ5)CHZC110Petrol2014–2022
SKODA1.0 TSIFABIA III Estate (NJ5)DKLD95Petrol2014–2022
SKODA1.0 TSIFABIA III Estate (NJ5)CHZB95Petrol2014–2022
SKODA1.0 TSIKAMIQ (NW4)DKLA95Petrol2019–
SKODA1.0 TSIKAMIQ (NW4)DUSB95Petrol2019–
SKODA1.0 TSIKAMIQ (NW4)DLAC95Petrol2019–
SKODA1.0 TSIRAPID (NH3, NK3, NK6)DKRC110Petrol2017–2019
SKODA1.0 TSIRAPID (NH3, NK3, NK6)CHZC110Petrol2017–2019
SKODA1.0 TSIRAPID Spaceback (NH1)DKLD95Petrol2017–2019
SKODA1.0 TSIRAPID Spaceback (NH1)DKRC110Petrol2017–2019
SKODA1.0 TSIRAPID Spaceback (NH1)CHZB95Petrol2017–2019
SKODA1.0 TSIRAPID Spaceback (NH1)CHZC110Petrol2017–2019
SKODA1.0 TSISCALA (NW1)DLAA110Petrol2020–
SKODA1.0 TSISCALA (NW1)DLAC95Petrol2019–
SKODA1.0 TSISCALA (NW1)DKLA95Petrol2019–
SKODA1.0 TSISCALA (NW1)DUSB95Petrol2019–
SKODA1.2 TSIFABIA III (NJ3)CJZD110Petrol2014–2021
SKODA1.2 TSIRAPID (NH3, NK3, NK6)CJZC90Petrol2015–2019
SKODA1.2 TSIRAPID (NH3, NK3, NK6)CJZD110Petrol2015–2019
SKODA1.2 TSIRAPID Spaceback (NH1)CJZD110Petrol2015–2019
SKODA1.2 TSIRAPID Spaceback (NH1)CJZC90Petrol2015–2019
SKODA1.4 TDIRAPID (NH3, NK3, NK6)CUSB90Diesel2015–2019
SKODA1.4 TDIRAPID Spaceback (NH1)CUSB90Diesel2015–2019
SKODA1.4 TSIKODIAQ I (NS6, NS7, NV7)CZCA125Petrol2016–
SKODA1.4 TSIKODIAQ I (NS6, NS7, NV7)CZEA150Petrol2016–
SKODA1.4 TSIKODIAQ I (NS6, NS7, NV7)CZDB125Petrol2016–
SKODA1.4 TSIKODIAQ I (NS6, NS7, NV7)CZDA150Petrol2016–
SKODA1.4 TSIOCTAVIA III (5E3, NL3, NR3)CZDA150Petrol2014–2020
SKODA1.4 TSIOCTAVIA III (5E3, NL3, NR3)CHPB150Petrol2014–2020
SKODA1.4 TSIOCTAVIA III Combi (5E5, 5E6)CZDA150Petrol2014–2020
SKODA1.4 TSIOCTAVIA III Combi (5E5, 5E6)CHPB150Petrol2014–2020
SKODA1.4 TSI 4x4KODIAQ I (NS6, NS7, NV7)CZDA150Petrol2016–
SKODA1.4 TSI 4x4KODIAQ I (NS6, NS7, NV7)CZEA150Petrol2016–
SKODA1.4 TSI 4x4YETI (5L)CZDA150Petrol2015–2017
SKODA1.5 TSIKODIAQ I (NS6, NS7, NV7)DADA150Petrol2018–
SKODA1.5 TSIKODIAQ I (NS6, NS7, NV7)DPCA150Petrol2018–
SKODA1.5 TSISUPERB III (3V3)DPCA150Petrol2017–
SKODA1.5 TSISUPERB III (3V3)DADA150Petrol2017–
SKODA1.5 TSI 4x4KODIAQ I (NS6, NS7, NV7)DPCA150Petrol2018–
SKODA1.5 TSI 4x4KODIAQ I (NS6, NS7, NV7)DADA150Petrol2018–
SKODA1.5 TSiSUPERB III Estate (3V5)DADA150Petrol2017–
SKODA1.5 TSiSUPERB III Estate (3V5)DPCA150Petrol2017–
SKODA1.6FABIA III (NJ3)CWVA110Petrol2015–2021
SKODA1.6FABIA III Estate (NJ5)CWVA110Petrol2015–2022
SKODA1.6OCTAVIA III (5E3, NL3, NR3)CWVA110Petrol2014–2020
SKODA1.6RAPID (NH3, NK3, NK6)CFNA105Petrol2012–2015
SKODA1.6RAPID Spaceback (NH1)CFNA105Petrol2012–2015
SKODA1.6YETI (5L)CWVA110Petrol2014–2017
SKODA1.6 SREOCTAVIA III Combi (5E5, 5E6)CWVA110Petrol2014–2017
SKODA1.6 SRERAPID (NH3, NK3, NK6)CWVB90Petrol2015–2022
SKODA1.6 TDIKAMIQ (NW4)DGTD95Diesel2019–
SKODA1.6 TDIOCTAVIA III (5E3, NL3, NR3)DBKA110Diesel2013–2017
SKODA1.6 TDIOCTAVIA III (5E3, NL3, NR3)CLHA105Diesel2012–2015
SKODA1.6 TDIOCTAVIA III (5E3, NL3, NR3)CXXA90Diesel2012–2020
SKODA1.6 TDIOCTAVIA III (5E3, NL3, NR3)CXXB110Diesel2013–2017
SKODA1.6 TDIOCTAVIA III (5E3, NL3, NR3)DGTE115Diesel2017–2020
SKODA1.6 TDIOCTAVIA III (5E3, NL3, NR3)CLHB90Diesel2012–2020

Visar 200 av 422 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S3294S Startmotor — SKODA, VW, SEAT”

Your email address will not be published. Required fields are marked *

Related products
