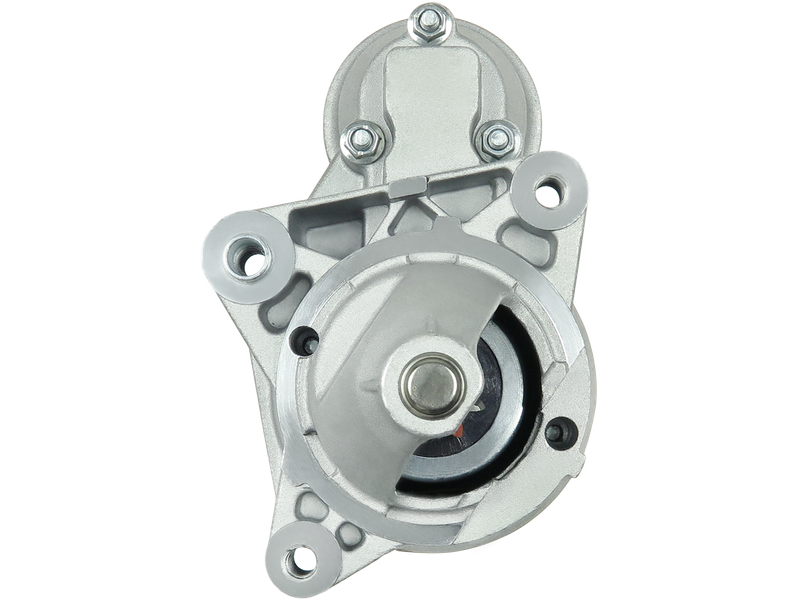

AS-PL S4020 Startmotor — FIAT, LANCIA, INNOCENTI

AS-PL S4020 Startmotor — FIAT, LANCIA, INNOCENTI

766,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MAGNETI MARELLI

Spänning [ V ] 12
Effekt [ kW ] 0.90
Startmotors rotation CW
A-storlek [ mm ] 64.00
B-storlek [ mm ] 11.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 8. 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 208.00
O.1 [ mm ] 105.00
O.2 [ mm ] 72.00
O.3 [ mm ] 72.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] M8x1.25
C.3 [ mm ] M8x1.25
AS-PLSTANDARD LINE
EAN5901259422535
ErsätterMAGNETI MARELLI
OE-nummer63103002

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S4020 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MAGNETI MARELLI.

OE-nummer: 63103002

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 0.90
Startmotors rotation CW
A-storlek [ mm ] 64.00
B-storlek [ mm ] 11.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 8. 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 208.00
O.1 [ mm ] 105.00
O.2 [ mm ] 72.00
O.3 [ mm ] 72.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] M8x1.25
C.3 [ mm ] M8x1.25

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CITROËN1.6JUMPY I (U6U_)220A2.00079Petrol1995–2000
CITROËN1.6JUMPY I (U6U_)1580SPI79Petrol1995–2000
CITROËN1.6 iJUMPY I Van (BS_, BT_, BY_, BZ_)1580SPI79Petrol1995–2000
CITROËN1.6 iJUMPY I Van (BS_, BT_, BY_, BZ_)220A2.00079Petrol1995–2000
FIAT1.1UNO (146_, 158_)146A4.04858Petrol1988–2006
FIAT1.1UNO (146_, 158_)160A3.00058Petrol1988–2006
FIAT1.3 Turbo i.e.UNO (146_, 158_)146A2.14699Petrol1987–1987
FIAT1.3 Turbo i.e.UNO (146_, 158_)146A2.246101Petrol1989–1991
FIAT1.3 Turbo i.e.UNO (146_, 158_)146A2.000105Petrol1985–1989
FIAT1.4FIORINO Box Body/MPV (146_)146C5.00071Petrol1992–1996
FIAT1.4FIORINO Pick up (146_)146D5.00067Petrol1994–2001
FIAT1.4PALIO (178_, 171_, 371_)178B2.00069Petrol1996–2002
FIAT1.4PALIO Weekend (178_, 173_, 373_, 374_, 171_)178B2.00069Petrol1997–2001
FIAT1.4SIENA (178_, 172_, 372_)178B2.00069Petrol1996–2009
FIAT1.4 (146RE)FIORINO MPV (146_)146D5.00067Petrol1996–2000
FIAT1.4 (159AA)TEMPRA S.W. (159_)159A2.00073Petrol1991–1993
FIAT1.4 (160.AC)TIPO (160_)160A1.00071Petrol1987–1989
FIAT1.4 (160.AC)TIPO (160_)160A1.04871Petrol1987–1989
FIAT1.4 CatPALIO (178_, 171_, 371_)178B2.01669Petrol1996–2001
FIAT1.4 CatSIENA (178_, 172_, 372_)178B2.01669Petrol1996–2009
FIAT1.4 GT Turbo (176AD_)PUNTO (176_)176A4.000133Petrol1993–1997
FIAT1.4 GT Turbo (176AS_)PUNTO (176_)176B6.000131Petrol1996–1999
FIAT1.4 Turbo i.e.UNO (146_, 158_)146A8.000118Petrol1989–1996
FIAT1.4 Turbo i.e.UNO (146_, 158_)146A8.046112Petrol1989–1993
FIAT1.4 i.e.TIPO (160_)159A2.00078Petrol1989–1995
FIAT1.4 i.e. (159.AA)TEMPRA (159_)159A2.00078Petrol1991–1996
FIAT1.4 i.e. (159.AC)TEMPRA S.W. (159_)159A2.00078Petrol1991–1996
FIAT1.4 i.e. (159.AC, 159.AX)TEMPRA (159_)160A1.04669Petrol1990–1996
FIAT1.4 i.e. (159.AC, 159.AX)TEMPRA (159_)159A2.00069Petrol1990–1996
FIAT1.4 i.e. (159.AC, 159.AX)TEMPRA (159_)836A4.00069Petrol1990–1996
FIAT1.4 i.e. (159.AC, 159.AX)TEMPRA S.W. (159_)836A4.00069Petrol1992–1996
FIAT1.4 i.e. (159.AC, 159.AX)TEMPRA S.W. (159_)160A1.04669Petrol1992–1996
FIAT1.4 i.e. (159.AC, 159.AX)TEMPRA S.W. (159_)159A2.00069Petrol1992–1996
FIAT1.4 i.e. (160.AP, 160.AD, 160.EA)TIPO (160_)836A4.00070Petrol1989–1995
FIAT1.4 i.e. (160.AP, 160.AD, 160.EA)TIPO (160_)160A1.04870Petrol1989–1995
FIAT1.4 i.e. (160.AP, 160.AD, 160.EA)TIPO (160_)160A1.04670Petrol1989–1995
FIAT1.4 iE (146RB)FIORINO MPV (146_)146C5.00071Petrol1993–1996
FIAT1.5RITMO (138_)138A2.00075Petrol1978–1988
FIAT1.5RITMO (138_)138C3.04875Petrol1978–1988
FIAT1.5RITMO (138_)149A5.00079Petrol1985–1987
FIAT1.5RITMO (138_)138A4.00085Petrol1981–1987
FIAT1.5RITMO (138_)138C2.04875Petrol1978–1988
FIAT1.5RITMO (138_)138B3.00082Petrol1983–1987
FIAT1.5RITMO (138_)149C1.00075Petrol1978–1988
FIAT1.5 (149A9)FIORINO MPV (146_)149C1.00075Petrol1988–1992
FIAT1.6FIORINO Pick up (146_)146C6.00075Petrol1994–2001
FIAT1.6FIORINO Pick up (146_)146D6.00075Petrol1994–2001
FIAT1.6MAREA (185_)185A3.00092Petrol1999–2000
FIAT1.6MAREA (185_)182B6.000103Petrol2000–2002
FIAT1.6MAREA Weekend (185_)182B6.000103Petrol2000–2002
FIAT1.6RITMO (138_)149A4.000100Petrol1983–1987
FIAT1.6RITMO (138_)138AR.00090Petrol1985–1987
FIAT1.6SCUDO Bus (220_)220A2.00079Petrol1996–2006
FIAT1.6SCUDO Platform/Chassis (220_)220A2.00079Petrol1996–2006
FIAT1.6SCUDO Van (220_)220A2.00079Petrol1996–2006
FIAT1.6TEMPRA S.W. (159_)159A3.04869Petrol1993–1996
FIAT1.6TEMPRA S.W. (159_)159A3.00086Petrol1990–1993
FIAT1.6TIPO (160_)160A2.00079Petrol1988–1992
FIAT1.6 (159.AD)TEMPRA (159_)159B9.00086Petrol1990–1994
FIAT1.6 (159.AD)TEMPRA (159_)159A3.00086Petrol1990–1994
FIAT1.6 (159AE)TEMPRA S.W. (159_)159A3.04677Petrol1991–1993
FIAT1.6 (159AS, 159AT)TEMPRA (159_)159A3.04869Petrol1990–1996
FIAT1.6 (160.AE)TIPO (160_)160A2.00083Petrol1988–1991
FIAT1.6 100 16VMAREA (185_)182A4.000103Petrol1996–2002
FIAT1.6 100 16VMAREA Weekend (185_)182A4.000103Petrol1996–2002
FIAT1.6 100 16V BipowerMAREA (185_)186A4.000103Petrol/Compressed Natural Gas (CNG)1999–2002
FIAT1.6 100 16V BipowerMAREA (185_)185A3.000103Petrol/Compressed Natural Gas (CNG)1999–2002
FIAT1.6 16VMAREA (185_)185A3.000102Petrol1997–1999
FIAT1.6 16VPALIO (178_, 171_, 371_)178B3.000100Petrol1996–2002
FIAT1.6 16VSIENA (178_, 172_, 372_)178B3.000101Petrol1998–2009
FIAT1.6 16V (178DXD1A)PALIO Weekend (178_, 173_, 373_, 374_, 171_)178B3.000100Petrol1996–2001
FIAT1.6 16V (182.AB)BRAVO I (182_)182A4.000103Petrol1996–2001
FIAT1.6 16V (182.AH)BRAVO I (182_)182A6.00090Petrol1995–2001
FIAT1.6 16V (182.BB)BRAVA (182_)182A4.000103Petrol1996–2001
FIAT1.6 16V (182.BH)BRAVA (182_)182A6.00090Petrol1995–2001
FIAT1.6 i.e.TIPO (160_)149C2.04690Petrol1988–1991
FIAT1.6 i.e. (159.AE)TEMPRA (159_)159A3.04678Petrol1990–1992
FIAT1.6 i.e. (159.AE)TEMPRA S.W. (159_)835C1.00078Petrol1990–1996
FIAT1.6 i.e. (159.AE)TEMPRA S.W. (159_)159A3.04678Petrol1990–1996
FIAT1.6 i.e. (159.AJ)TEMPRA (159_)159B9.00090Petrol1994–1996
FIAT1.6 i.e. (159.AJ)TEMPRA (159_)159B9.00087Petrol1994–1996
FIAT1.6 i.e. (159.AJ)TEMPRA S.W. (159_)159B9.00090Petrol1994–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA (159_)159A3.04875Petrol1992–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA (159_)835C1.00075Petrol1992–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA S.W. (159_)835C1.00075Petrol1992–1996
FIAT1.6 i.e. (159.AS, 159.AT)TEMPRA S.W. (159_)159A3.04875Petrol1992–1996
FIAT1.6 i.e. (160.A1, 160.EC, 160.EB)TIPO (160_)835C1.00075Petrol1992–1995
FIAT1.6 i.e. (160.A1, 160.EC, 160.EB)TIPO (160_)159A3.04875Petrol1992–1995
FIAT1.6 i.e. (160.AF)TIPO (160_)159A3.04678Petrol1990–1993
FIAT1.6 iE (146RC, 146RF)FIORINO MPV (146_)146C6.00075Petrol1993–2000
FIAT1.6 iE (146RC, 146RF)FIORINO MPV (146_)146D6.00075Petrol1993–2000
FIAT1.8 GT (182.AC)BRAVO I (182_)182A2.000113Petrol1995–2001
FIAT1.8 GT 16V (182.BC)BRAVA (182_)182A2.000113Petrol1995–2001
FIAT1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR)TIPO (160_)160A6.00090Diesel1990–1995
FIAT1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR)TIPO (160_)160D1.00090Diesel1990–1995
FIAT1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR)TIPO (160_)160A6.04690Diesel1990–1995
FIAT100 1.6REGATA (138_)138AR.000105Petrol1983–1986
FIAT100 1.6RITMO Convertible (138_)138AR.000105Petrol1985–1987
FIAT100 1.6RITMO Convertible (138_)138AR.048100Petrol1985–1987
FIAT100 1.6 (RF)REGATA Weekend (138_)149C3.000101Petrol1984–1990
FIAT100 1.6 (RF)REGATA Weekend (138_)149A4.000101Petrol1984–1990
FIAT100 Super 1.6REGATA (138_)149A2.000101Petrol1983–1990
FIAT100 Super 1.6REGATA (138_)149A4.000101Petrol1983–1990
FIAT55 1.1PUNTO (176_)176B2.00054Petrol1993–1999
FIAT55 1.1PUNTO (176_)176A6.00054Petrol1993–1999
FIAT60 1.1 (146A.EG)UNO (146_, 158_)146A4.04858Petrol1985–1989
FIAT70 1.3UNO (146_, 158_)138B2.00068Petrol1983–1985
FIAT70 S 1.4UNO (146_, 158_)160A1.04871Petrol1988–2006
FIAT70 S 1.4UNO (146_, 158_)160A1.04671Petrol1988–2006
FIAT70 i.e. 1.4FIORINO Box Body/MPV (146_)146D5.00067Petrol1994–2001
FIAT70 i.e. 1.4FIORINO Box Body/MPV (146_)146C5.00067Petrol1994–2001
FIAT70 i.e. 1.4UNO (146_, 158_)160A1.04670Petrol1989–1996
FIAT70 i.e. 1.4UNO (146_, 158_)146C1.00072Petrol1989–1993
FIAT75 1.5REGATA (138_)138B3.04875Petrol1983–1989
FIAT75 1.5REGATA (138_)138C3.04875Petrol1983–1989
FIAT75 1.5REGATA (138_)138C2.04875Petrol1983–1989
FIAT75 1.5REGATA (138_)149C1.00075Petrol1983–1989
FIAT75 1.5REGATA Weekend (138_)138C2.04875Petrol1984–1989
FIAT75 1.5REGATA Weekend (138_)149C1.00075Petrol1984–1989
FIAT75 1.5REGATA Weekend (138_)138B3.04875Petrol1984–1989
FIAT75 1.5REGATA Weekend (138_)138C3.04875Petrol1984–1989
FIAT75 i.e. 1.5FIORINO Box Body/MPV (146_)149C1.00075Petrol1988–1993
FIAT75 i.e. 1.5UNO (146_, 158_)138C2.04875Petrol1985–1993
FIAT75 i.e. 1.5UNO (146_, 158_)149C1.00075Petrol1985–1993
FIAT75 i.e. 1.6FIORINO Box Body/MPV (146_)146C6.00075Petrol1993–2001
FIAT75 i.e. 1.6FIORINO Box Body/MPV (146_)146D6.00075Petrol1993–2001
FIAT85 1.5REGATA (138_)138B3.00086Petrol1984–1986
FIAT85 1.5REGATA (138_)149A5.00079Petrol1985–1987
FIAT85 1.5REGATA Weekend (138_)138B3.00082Petrol1984–1989
FIAT85 1.5RITMO Convertible (138_)138B3.00082Petrol1983–1986
FIAT85 1.5RITMO Convertible (138_)138A4.00086Petrol1980–1989
FIAT85 1.6REGATA (138_)149A.00082Petrol1983–1990
FIAT85 Super 1.5REGATA (138_)138B3.00082Petrol1983–1985
INNOCENTI1.4 i.e. (146EN, 146EQ)ELBA146D5.00067Petrol1994–1996
INNOCENTI1.4 i.e. (146EN, 146EQ)ELBA146C5.00067Petrol1994–1996
INNOCENTI1.5 i.e. (146C9)ELBA149C1.00075Petrol1992–1994
INNOCENTI1.6 i.e. (146EO, 146ER)ELBA146D6.00075Petrol1994–1996
INNOCENTI1.6 i.e. (146EO, 146ER)ELBA146C6.00075Petrol1994–1996
LANCIA1.0 Turbo (156D)Y10 (156_)156A1.00084Petrol1985–1989
LANCIA1.1 (831AB.015)DELTA I (831_)831B8.00064Petrol1986–1990
LANCIA1.3 (831.AB)DELTA I (831_)831A2.00079Petrol1983–1992
LANCIA1.4 i.e. (836AF, 836AH)DELTA II (836_)160A1.04669Petrol1994–1999
LANCIA1.4 i.e. (836AF, 836AH)DELTA II (836_)836A4.00069Petrol1994–1999
LANCIA1.5 (831AB)PRISMA (831_)831B1.04875Petrol1985–1992
LANCIA1.5 (831AB)PRISMA (831_)138C2.04875Petrol1985–1992
LANCIA1.5 (831AB)PRISMA (831_)831B1.00080Petrol1986–1989
LANCIA1.5 (831AB)PRISMA (831_)831A1.00086Petrol1983–1986
LANCIA1.5 (831AB.025)DELTA I (831_)831B1.00086Petrol1979–1992
LANCIA1.5 (831AB.025)DELTA I (831_)831A1.00086Petrol1979–1992
LANCIA1.6 (835EB)DEDRA SW (835_)159B9.00090Petrol1994–1999
LANCIA1.6 16V (835EI)DEDRA (835_)182A4.000103Petrol1996–1999
LANCIA1.6 16V (835EI)DEDRA SW (835_)182A4.000103Petrol1996–1999
LANCIA1.6 LE Cat (835EB)DEDRA (835_)159B9.00090Petrol1994–1999
LANCIA1.6 i.e. (835AA)DEDRA (835_)835A1.00090Petrol1989–1994
LANCIA1.6 i.e. (835AB)DEDRA (835_)835A1.04678Petrol1989–1993
LANCIA1.6 i.e. (835AN)DEDRA (835_)835C1.00075Petrol1993–1999
LANCIA1.6 i.e. (836AD)DELTA II (836_)835C1.00075Petrol1993–1999
LANCIA1.6 i.e. (836AP)DELTA II (836_)182A6.00090Petrol1996–1999
LANCIA1.6 i.e. 16V (836AO)DELTA II (836_)182A4.000103Petrol1996–1999
LANCIA1.8 16V LE (835FG)DEDRA (835_)182A2.000113Petrol1996–1999
LANCIA1.8 16V LE (835FG)DEDRA SW (835_)182A2.000113Petrol1996–1999
LANCIA1.9 TDS (835EE, 835EF)DEDRA (835_)835A4.00090Diesel1989–1999
LANCIA1.9 TDS (835EE, 835EF)DEDRA (835_)160D1.00090Diesel1989–1999
LANCIA1.9 TDS (835EE, 835EF)DEDRA (835_)835A4.04690Diesel1989–1999
PEUGEOT1.6EXPERT (224_)222A2(1580SPI)79Petrol1996–2000
PEUGEOT1.6EXPERT Platform/Chassis (223)222A2(1580SPI)79Petrol1996–2000
PEUGEOT1.6EXPERT Van (222)222A2(1580SPI)79Petrol1996–2000
YUGO1.4FLORIDA (VX65)160A1.00069Petrol1991–1995
YUGO1.4 CatFLORIDA (VX65)160A1.00071Petrol1988–2008
YUGO1.6FLORIDA (VX65)149A.00084Petrol1989–1995

Reviews

There are no reviews yet.

Be the first to review “AS-PL S4020 Startmotor — FIAT, LANCIA, INNOCENTI”

Your email address will not be published. Required fields are marked *

Related products
