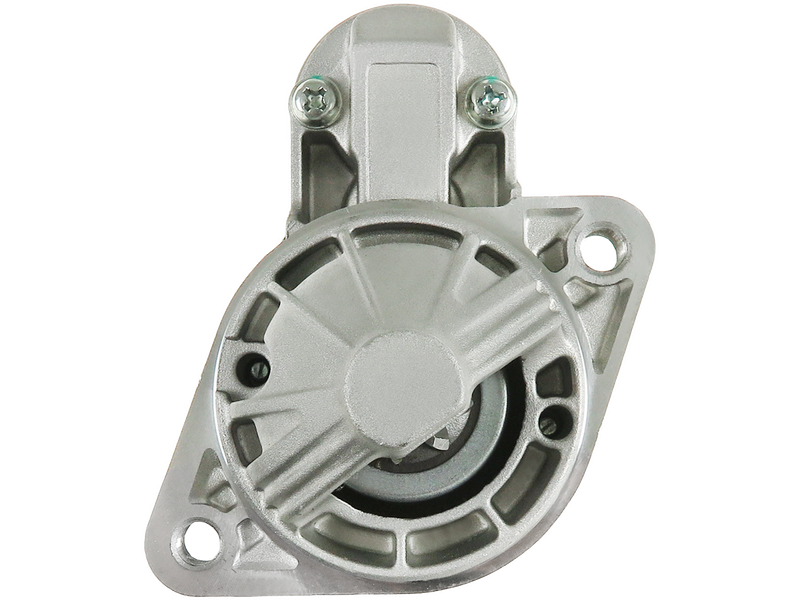

AS-PL S5020 Startmotor — MITSUBISHI, HYUNDAI, KIA

AS-PL S5020 Startmotor — MITSUBISHI, HYUNDAI, KIA

768,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MITSUBISHI

Spänning [ V ] 12
Effekt [ kW ] 1.20
Startmotors rotation CW
A-storlek [ mm ] 77.00
B-storlek [ mm ] 17.50
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 208.00
O.1 [ mm ] 105.00
C.1 [ mm ] M10x1.25
C.2 [ mm ] M10x1.25
AS-PLSTANDARD LINE
EAN5901259422993
ErsätterMITSUBISHI

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S5020 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBISHI.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.20
Startmotors rotation CW
A-storlek [ mm ] 77.00
B-storlek [ mm ] 17.50
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 208.00
O.1 [ mm ] 105.00
C.1 [ mm ] M10x1.25
C.2 [ mm ] M10x1.25

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
HYUNDAI1.3ACCENT Saloon (X-3)G4EH60Petrol1994–2000
HYUNDAI1.3ACCENT Saloon (X-3)G4CH60Petrol1994–2000
HYUNDAI1.3PONY (X-1)G13B68Petrol1985–1989
HYUNDAI1.3PONY (X-2)G4DG67Petrol1989–1995
HYUNDAI1.3PONY / EXCEL Saloon (X-2)G4DG67Petrol1990–1995
HYUNDAI1.3 i 12VACCENT Saloon (X-3)G4EH84Petrol1994–2000
HYUNDAI1.4PONY4G3368Petrol1977–1985
HYUNDAI1.4PONY Wagon4G3368Petrol1978–1986
HYUNDAI1.5PONY / EXCEL Saloon (X-2)G4DJ72Petrol1990–1995
HYUNDAI1.5PONY / EXCEL Saloon (X-2)G15B72Petrol1990–1995
HYUNDAI1.5 iPONY (X-2)G15B83Petrol1989–1995
HYUNDAI1.5 iPONY (X-2)G15B84Petrol1989–1995
HYUNDAI1.5 iPONY (X-2)G4DJ83Petrol1989–1995
HYUNDAI1.5 iPONY (X-2)G4DJ84Petrol1989–1995
HYUNDAI1.5 iPONY / EXCEL Saloon (X-2)G15B84Petrol1990–1995
HYUNDAI1.5 iPONY / EXCEL Saloon (X-2)G4DJ84Petrol1990–1995
HYUNDAI1.5 iS COUPE (SLC)G4DJ84Petrol1990–1996
HYUNDAI1.5 i 12VACCENT I (X-3)G4EK88Petrol1994–2000
HYUNDAI1.5 i 12VACCENT Saloon (X-3)G4EK88Petrol1994–2000
HYUNDAI1.5 i 16VACCENT Saloon (X-3)G4FK99Petrol1995–2000
HYUNDAI1.6 i.e. 16VLANTRA I (J-1)G4CR106Petrol1990–1995
HYUNDAI1.6 i.e. 16VLANTRA I (J-1)G4CR114Petrol1990–1995
HYUNDAI1.8 GLSSONATA III (Y-3)86Petrol1996–1998
HYUNDAI1.8 iSONATA II (Y-2)G4CM95Petrol1988–1993
HYUNDAI1.8 iSONATA III (Y-3)G4CM98Petrol1993–1998
HYUNDAI1.8 i.e. 16VLANTRA I (J-1)G4CN127Petrol1990–1995
HYUNDAI2.0SANTAMOG4CP105Petrol1998–2002
HYUNDAI2.0 16VSANTAMOG4JP139Petrol1999–2002
HYUNDAI2.0 16V 4x4SANTAMOG4CP-D139Petrol1999–2002
HYUNDAI2.0 iSONATA II (Y-2)G4CP109Petrol1991–1993
HYUNDAI2.0 iSONATA II (Y-2)G4CP101Petrol1988–1991
HYUNDAI2.0 iSONATA III (Y-3)G4EP95Petrol1996–1998
HYUNDAI2.0 iSONATA III (Y-3)G4CP105Petrol1994–1996
HYUNDAI2.0 i 16VSONATA II (Y-2)G4CP-D130Petrol1991–1993
HYUNDAI2.0 i 16VSONATA III (Y-3)G4CP-D139Petrol1993–1998
HYUNDAI2.0 i 16VSONATA III (Y-3)G4CP-DM125Petrol1996–1998
HYUNDAI2.4H-1 / STAREX Bus (A1)G4JS137Petrol2003–2004
HYUNDAI2.4H-1 / STAREX Bus (A1)G4CS112Petrol1997–2004
HYUNDAI2.4H-1 Van (A1)G4CS112Petrol2000–2004
HYUNDAI2.4H100 Bus (P)G4CS114Petrol1997–2000
HYUNDAI2.4H100 Bus (P)G4CS122Petrol1993–2000
HYUNDAI2.4H100 Platform/ChassisG4CS114Petrol1996–1997
HYUNDAI2.4H100 VanG4CS114Petrol1997–2003
HYUNDAI2.4H100 VanG4CS111Petrol1997–2004
HYUNDAI2.4 4WDH-1 / STAREX Bus (A1)G4JS135Petrol2001–2004
HYUNDAI2.4 4WDH-1 / STAREX Bus (A1)G4CS112Petrol1998–2004
HYUNDAI2.4 TDH100 VanG4CS122Petrol1993–1997
HYUNDAI2.4 iSONATA II (Y-2)G4CS113Petrol1988–1991
HYUNDAI3.0 i V6SONATA III (Y-3)G6AT146Petrol1993–1998
KIA2.0JOICE (MTE1P)G4CP139Petrol2000–2003
KIA2.0JOICE (MTE1P)G4CP120Petrol2001–2003
MAZDA2.6 (UFY0)B-SERIE (UF)G54B99Petrol1986–1988
MITSUBISHI1.3 12V (CK1A)LANCER VI (CJ_, CP_)4G13(12V)75Petrol1995–2003
MITSUBISHI1.6 (A174)LANCER II (A17_)4G32GS84Petrol1981–1983
MITSUBISHI1.6 (A174)LANCER II (A17_)4G32GS82Petrol1979–1983
MITSUBISHI1.6 (L032P, L062P)L 300 / DELICA II Van (L03_P)4G3265Petrol1980–1986
MITSUBISHI1.6 GTi 16V (C53A)COLT III (C5_A)4G61124Petrol1988–1990
MITSUBISHI1.8 (E32A)GALANT VI (E3_A)4G3790Petrol1988–1992
MITSUBISHI1.8 (E32A)GALANT VI Saloon (E3_A)4G3790Petrol1987–1992
MITSUBISHI1.8 4WD (C77A)LANCER IV Hatchback (C6_A, C7_A)4G3797Petrol1989–1992
MITSUBISHI1.8 4WD (D05V, D05W)SPACE WAGON (D0_V/W)4G3790Petrol1987–1988
MITSUBISHI1.8 GLX (D05V, D05W)SPACE WAGON (D0_V/W)4G3790Petrol1984–1988
MITSUBISHI1.8 GTi 16V (C68A)LANCER IV Hatchback (C6_A, C7_A)4G67136Petrol1989–1992
MITSUBISHI1.8 GTi 16V (C69A)LANCER IV Hatchback (C6_A, C7_A)4G93(DOHC16V)140Petrol1992–1993
MITSUBISHI1.8 GTi 16V Cat (C58A)COLT III (C5_A)4G67136Petrol1990–1992
MITSUBISHI2.0ECLIPSE Convertible4G63-T(DOHC16V)214Petrol1995–1999
MITSUBISHI2.0GALANT VII Saloon (E5_A, E7_A, E8_A)4G63(SOHC16V)136Petrol1992–1996
MITSUBISHI2.0L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V)4G63(SOHC16V)116Petrol1996–2001
MITSUBISHI2.0 (E39A, E38A, E33A)GALANT VI (E3_A)4G63(SOHC8V)109Petrol1989–1992
MITSUBISHI2.0 (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(SOHC8V)109Petrol1987–1992
MITSUBISHI2.0 (K62T)L200 (K7_T, K6_T, K5_T)4G63(SOHC16V)122Petrol1996–2007
MITSUBISHI2.0 (N33W)SPACE WAGON (N3_W, N4_W)4G63(SOHC16V)133Petrol1992–1998
MITSUBISHI2.0 (P03V, P13V)L 300 III Van (P0_V, P1_V, P2_V)4G63(SOHC16V)106Petrol1994–1996
MITSUBISHI2.0 (P03V, P13V)L 300 III Van (P0_V, P1_V, P2_V)G63B87Petrol1986–1996
MITSUBISHI2.0 (P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC8V)90Petrol1986–2004
MITSUBISHI2.0 (P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)G63B87Petrol1986–2004
MITSUBISHI2.0 (PA3V)DELICA / SPACE GEAR4G63(SOHC16V)113Petrol1995–2002
MITSUBISHI2.0 (PA3W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G63(SOHC16V)113Petrol1995–2002
MITSUBISHI2.0 16VSANTAMO (UG)4G63(DOHC16V)139Petrol1999–2004
MITSUBISHI2.0 16V (PA3V/W, PB3V, PA3W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G63(SOHC16V)115Petrol1995–2000
MITSUBISHI2.0 16V 4WDSANTAMO (UG)4G63(DOHC16V)139Petrol1999–2004
MITSUBISHI2.0 4WDL200 (K3_T, K2_T, K1_T, K0_T)4G63(SOHC8V)86Petrol1987–1994
MITSUBISHI2.0 4WD (D08W)SPACE WAGON (D0_V/W)4G63(SOHC8V)102Petrol1985–1991
MITSUBISHI2.0 4WD (E33A, E38A, E39A)GALANT VI (E3_A)4G63(SOHC8V)109Petrol1989–1992
MITSUBISHI2.0 4WD (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(SOHC8V)109Petrol1988–1992
MITSUBISHI2.0 4WD (L037G)L 300 / DELICA II Bus (L03_P/G, L0_2P)4G63(SOHC8V)88Petrol1986–1987
MITSUBISHI2.0 4WD (N43W)SPACE WAGON (N3_W, N4_W)4G63(SOHC16V)133Petrol1992–1998
MITSUBISHI2.0 4WD (P23W, P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC8V)88Petrol1986–2004
MITSUBISHI2.0 4WD (P23W, P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC8V)90Petrol1986–2004
MITSUBISHI2.0 4WD (P23W, P23V)L 300 III Van (P0_V, P1_V, P2_V)4G63(SOHC8V)86Petrol1988–1994
MITSUBISHI2.0 GLS (A163)GALANT IV (A16_)4G63(SOHC8V)102Petrol1980–1984
MITSUBISHI2.0 GLS (E15A)GALANT V (E1_A)4G63(SOHC8V)102Petrol1984–1990
MITSUBISHI2.0 GLS (E15A)GALANT V (E1_A)G63B90Petrol1986–1990
MITSUBISHI2.0 GLSI (E55A)GALANT VII (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSI (E55A)GALANT VII Saloon (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSI 4WD (E75A)GALANT VII (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSI 4WD (E75A)GALANT VII Saloon (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSTD (E57A)GALANT VII Saloon (E5_A, E7_A, E8_A)4D68T90Diesel1992–1996
MITSUBISHI2.0 GLXGALANT III (A12_)4G5286Petrol1977–1980
MITSUBISHI2.0 GLX (A123V)GALANT III Station Wagon (A12_V)4G5298Petrol1979–1980
MITSUBISHI2.0 GLX (A163V)GALANT IV Station Wagon (A16_V)4G63(SOHC8V)102Petrol1980–1983
MITSUBISHI2.0 GLX (D04W)SPACE WAGON (D0_V/W)G63B84Petrol1986–1988
MITSUBISHI2.0 GLX 4WD (D08W)SPACE WAGON (D0_V/W)G63B84Petrol1986–1988
MITSUBISHI2.0 GLXi (D04W)SPACE WAGON (D0_V/W)4G63(SOHC8V)101Petrol1988–1991
MITSUBISHI2.0 GLXi 4WD (D08W)SPACE WAGON (D0_V/W)4G63(SOHC8V)101Petrol1988–1991
MITSUBISHI2.0 GSR (A78A)LANCER CELESTE Coupe (A7_)4G5290Petrol1975–1981
MITSUBISHI2.0 GSR (A78A)LANCER CELESTE Coupe (A7_)4G52105Petrol1979–1981
MITSUBISHI2.0 GSR (A78A)LANCER CELESTE Coupe (A7_)4G5297Petrol1977–1981
MITSUBISHI2.0 GTI 16V (E39A, E38A, E33A)GALANT VI (E3_A)4G63(DOHC16V)144Petrol1988–1992
MITSUBISHI2.0 GTI 16V (E39A, E38A, E33A)GALANT VI (E3_A)4G63(DOHC16V)146Petrol1988–1992
MITSUBISHI2.0 GTI 16V 4x4 (E38A, E39A, E33A)GALANT VI (E3_A)4G63(DOHC16V)144Petrol1989–1992
MITSUBISHI2.0 GTI 16V Cat 4WD (E38A, E39A, E33A)GALANT VI Saloon (E3_A)4G63(DOHC16V)150Petrol1991–1992
MITSUBISHI2.0 GTi 16V (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(DOHC16V)144Petrol1987–1992
MITSUBISHI2.0 GTi 16V (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(DOHC16V)145Petrol1988–1992
MITSUBISHI2.0 GTi 16V 4WD (E39A)GALANT VI (E3_A)4G63(DOHC16V)145Petrol1988–1992
MITSUBISHI2.0 GTi 16V 4WD (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(DOHC16V)144Petrol1988–1992
MITSUBISHI2.0 RSECLIPSE II (D3_A)420A141Petrol1995–1999
MITSUBISHI2.0 TurboECLIPSE I (D2_A)4G63-T(DOHC16V)200Petrol1989–1994
MITSUBISHI2.0 Turbo ECi (A164)GALANT IV (A16_)4G63-T(ECI)170Petrol1982–1984
MITSUBISHI2.0 Turbo ECi (A176)LANCER II (A17_)4G63-T(SOHC8V)170Petrol1981–1983
MITSUBISHI2.0 Turbo ECi (A183A)STARION (A18_A)4G63-T/C180Petrol1985–1987
MITSUBISHI2.0 Turbo ECi (A183A)STARION (A18_A)4G63-T(ECI)170Petrol1982–1985
MITSUBISHI2.0 Turbo ECi (E15A)GALANT V (E1_A)4G63-T(SOHC8V)150Petrol1984–1990
MITSUBISHI2.0 i (P00W, P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC16V)113Petrol1994–1998
MITSUBISHI2.0 i 16V (D22A, D27A)ECLIPSE I (D2_A)4G63(DOHC16V)150Petrol1991–1995
MITSUBISHI2.0 i 16V 4WD (D22A, D27A)ECLIPSE I (D2_A)4G63(DOHC16V)150Petrol1991–1995
MITSUBISHI2.4L200 (K3_T, K2_T, K1_T, K0_T)4G64(8V)124Petrol1989–1996
MITSUBISHI2.4 (E16A)SAPPORO III (E16A)4G64(8V)124Petrol1987–1990
MITSUBISHI2.4 (P04W, P14W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G64(8V)112Petrol1990–2004
MITSUBISHI2.4 (PA4W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G64(16V)128Petrol1996–2005
MITSUBISHI2.4 (PA4W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G64(16V)132Petrol1995–2002
MITSUBISHI2.4 (PA4W, PB4W, PC4W)DELICA / SPACE GEAR4G64(16V)132Petrol1994–2004
MITSUBISHI2.4 4WD (K75T)L200 (K7_T, K6_T, K5_T)4G64(16V)132Petrol1996–2007
MITSUBISHI2.4 4WD (P24V, P24W)L 300 III Van (P0_V, P1_V, P2_V)G64B112Petrol1986–1997
MITSUBISHI2.4 4WD (P24V, P24W)L 300 III Van (P0_V, P1_V, P2_V)4G64(8V)112Petrol1986–1997
MITSUBISHI2.4 4WD (P24W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G64(8V)112Petrol1986–2004
MITSUBISHI2.4 4WD (P24W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)G64B109Petrol1986–1990
MITSUBISHI2.4 4WD (PD4W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G64(16V)128Petrol1996–2005
MITSUBISHI2.4 All-wheel Drive (PD4W)DELICA / SPACE GEAR4G64(16V)132Petrol1995–2000
MITSUBISHI2.4 GLS (E16A)GALANT V (E1_A)G64B112Petrol1985–1990
MITSUBISHI2.4 i 4WD (PD4V/W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G64(16V)132Petrol1995–2000
MITSUBISHI2.6 (L042G, L047G)PAJERO I Canvas Top (L04_G)G54B103Petrol1983–1990
MITSUBISHI2.6 (L042G, L047G)PAJERO I Canvas Top (L04_G)4G54103Petrol1983–1990
MITSUBISHI2.6 4WDPAJERO II (V3_W, V2_W, V4_W, V5_W)4G54103Petrol1991–1997
MITSUBISHI2.6 4WD (K33T)L200 (K3_T, K2_T, K1_T, K0_T)G54B103Petrol1989–1995
MITSUBISHI2.6 4WD (L042G, L047G)PAJERO I (L04_G, L14_G)4G54103Petrol1983–1987
MITSUBISHI2.6 Turbo ECi (A187A)STARION (A18_A)G54BT/C155Petrol1987–1990
MITSUBISHI2000 GS 16V (D32A)ECLIPSE II (D3_A)4G63(DOHC16V)146Petrol1995–1999
MITSUBISHI2000 GT 16VECLIPSE II (D3_A)4G63-T(DOHC16V)214Petrol1995–1999
MITSUBISHIEVO I (CD9A)LANCER V (CB_A, CD_A, CE_A)4G63Turbo250Petrol1992–1993
MITSUBISHIEVO II (CE9A)LANCER V (CB_A, CD_A, CE_A)4G63Turbo261Petrol1994–1995
MITSUBISHIEVO III (CE9A)LANCER V (CB_A, CD_A, CE_A)4G63Turbo269Petrol1995–1996
MITSUBISHIEVO IV (CN9A)LANCER IV (C6_A, C7_A)4G63Turbo280Petrol1996–1997
MITSUBISHIEVO VI (CP9A)LANCER VI (CJ_, CP_)4G63Turbo280Petrol1999–2001
PROTON313iPERSONA 300 (C9_M)G13B75Petrol1996–2000
PROTON315 GLi/GLSiPERSONA 300 (C9_M)4G15M90Petrol1996–2000
