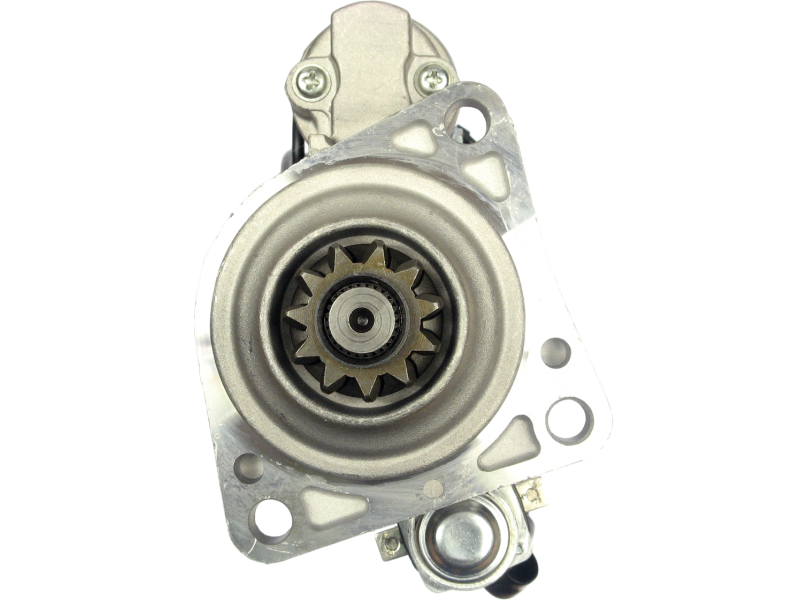

AS-PL S5081 Startmotor — RENAULT TRUCKS, VOLVO PENTA

AS-PL S5081 Startmotor — RENAULT TRUCKS, VOLVO PENTA

2 194,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MITSUBISHI

Spänning [ V ] 24
Effekt [ kW ] 5.50
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 366.00
O.1 [ mm ] 89.00
O.2 [ mm ] 90.00
O.3 [ mm ] 117.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] 12.00
AS-PLSTANDARD LINE
EAN5901259457476
ErsätterMITSUBISHI
OE-nummerM9T61479

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S5081 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBISHI.

OE-nummer: M9T61479

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.50
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 366.00
O.1 [ mm ] 89.00
O.2 [ mm ] 90.00
O.3 [ mm ] 117.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] 12.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
RENAULT TRUCKS370.18KERAXDXi113702005–
RENAULT TRUCKS370.18KERAXDXi113702005–
RENAULT TRUCKS370.18KERAXDXi113702005–
RENAULT TRUCKS370.18KERAXDXi113702005–
RENAULT TRUCKS370.26KERAXDXi113702005–
RENAULT TRUCKS370.26KERAXDXi113702005–
RENAULT TRUCKS370.26KERAXDXi113702005–
RENAULT TRUCKS370.26KERAXDXi113702005–
RENAULT TRUCKS370.26KERAXDXi113702005–
RENAULT TRUCKS370.26KERAXDXi113702005–
RENAULT TRUCKS370.32KERAXDXi113702005–
RENAULT TRUCKS370.32KERAXDXi113702005–
RENAULT TRUCKS370.32KERAXDXi113702005–
RENAULT TRUCKS410.18KERAXDXi114102005–
RENAULT TRUCKS410.18KERAXDXi114102005–
RENAULT TRUCKS410.18KERAXDXi114102005–
RENAULT TRUCKS410.18KERAXDXi114102005–
RENAULT TRUCKS410.26KERAXDXi114102005–
RENAULT TRUCKS410.26KERAXDXi114102005–
RENAULT TRUCKS410.26KERAXDXi114102005–
RENAULT TRUCKS410.26KERAXDXi114102005–
RENAULT TRUCKS410.26KERAXDXi114102005–
RENAULT TRUCKS410.26KERAXDXi114102005–
RENAULT TRUCKS410.32KERAXDXi114112005–
RENAULT TRUCKS410.32KERAXDXi114112005–
RENAULT TRUCKS410.32KERAXDXi114112005–
RENAULT TRUCKS450.18KERAXDXi114502005–
RENAULT TRUCKS450.18KERAXDXi114502005–
RENAULT TRUCKS450.18KERAXDXi114502005–
RENAULT TRUCKS450.26KERAXDXi114502005–
RENAULT TRUCKS450.26KERAXDXi114502005–
RENAULT TRUCKS450.26KERAXDXi114502005–
RENAULT TRUCKS450.26KERAXDXi114502005–
RENAULT TRUCKS450.26KERAXDXi114502005–
RENAULT TRUCKS450.26KERAXDXi114502005–
RENAULT TRUCKS450.32KERAXDXi114502005–
RENAULT TRUCKS450.32KERAXDXi114502005–
RENAULT TRUCKS450.32KERAXDXi114502005–
VOLVO PENTAEngineD11A0–
VOLVO PENTAEngineD9A0–
