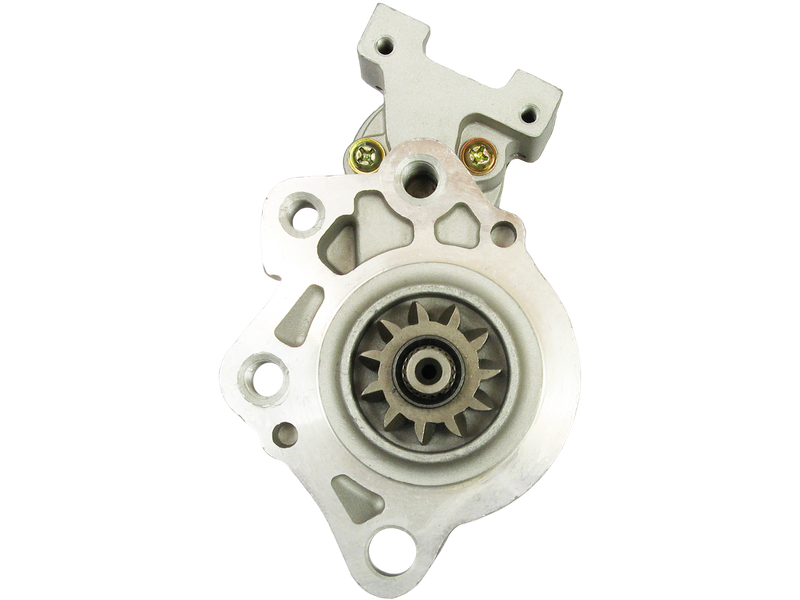

AS-PL S5085 Startmotor — MITSUBISHI

AS-PL S5085 Startmotor — MITSUBISHI

1 496,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MITSUBISHI

Spänning [ V ] 24
Effekt [ kW ] 5.00
Startmotors rotation CW
A-storlek [ mm ] 66.00
B-storlek [ mm ] 18.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 260.00
O.1 [ mm ] 111.50
O.2 [ mm ] 64.50
O.3 [ mm ] 50.00
O.4 [ mm ] 39.00
C.1 [ mm ] M12x1.75
C.2 [ mm ] 13.50
C.3 [ mm ] M12x1.75
C.4 [ mm ] M10x1.75
AS-PLSTANDARD LINE
EAN5901259464825
ErsätterMITSUBISHI
OE-nummerM8T85271

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S5085 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBISHI.

OE-nummer: M8T85271

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.00
Startmotors rotation CW
A-storlek [ mm ] 66.00
B-storlek [ mm ] 18.00
Antal kuggar [ qty. ] 11
Antal kuggar (passar in) [ qty. ] 11
Antal hål i huvudet [ qty. ] 4
Antal gängade hål [ qty. ] 3
L.1 [ mm ] 260.00
O.1 [ mm ] 111.50
O.2 [ mm ] 64.50
O.3 [ mm ] 50.00
O.4 [ mm ] 39.00
C.1 [ mm ] M12x1.75
C.2 [ mm ] 13.50
C.3 [ mm ] M12x1.75
C.4 [ mm ] M10x1.75

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
MITSUBISHICanter FE50E4M510–
MITSUBISHICanter FE69E4M510–
MITSUBISHICanter FE70D4M50T0–
MITSUBISHICanter FE82E4M510–
MITSUBISHICanter FG70D4M50T30–
MITSUBISHICanter FG73E4M510–
MITSUBISHICanter FG82D4M50T30–
MITSUBISHIFighter FK71D4M50T10–
MITSUBISHIRosa BE63D4M50T0–
MITSUBISHIRosa BG64E4M510–
