Mitsubishi S5175(MITSUBISHI) Startmotor — IVECO, ASTRA, SCANIA

Mitsubishi S5175(MITSUBISHI) Startmotor — IVECO, ASTRA, SCANIA

3 599,00 kr inkl. moms

PREMIUM LINE | Tillverkare: Mitsubishi | Ersätter: MITSUBISHI

Spänning [ V ] 24
Effekt [ kW ] 5.50
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 320.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
MitsubishiPREMIUM LINE
EAN5902129163015
ErsätterMITSUBISHI
OE-nummerM9T69371

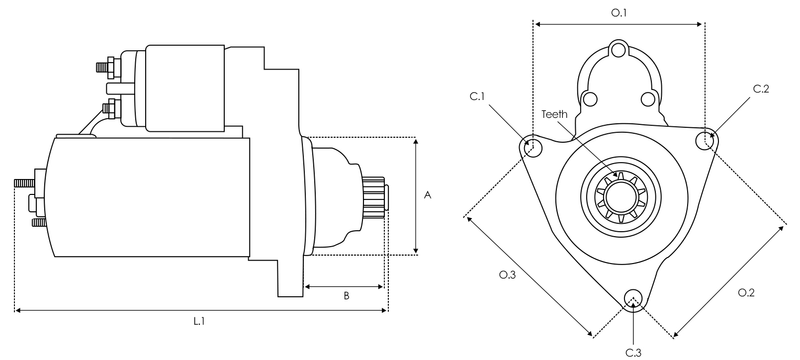

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S5175(MITSUBISHI) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBISHI.

OE-nummer: M9T69371

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.50
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 320.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ASTRA42.36HD 8F3BE0681J3602005–
ASTRA42.36 THD 8F3BE0681J3602005–
ASTRA42.40HD 8F3BE0681H4002005–
ASTRA42.40 THD 8F3BE0681H4002005–
ASTRA42.41HD 8F3BE3681D4102007–
ASTRA42.41 THD 8F3BE3681D4102007–
ASTRA42.44 THD 8F3BE3681G4402007–
ASTRA42.45HD 8F3BE0681D4502005–
ASTRA42.45 THD 8F3BE0681D4502005–
ASTRA42.48HD 8F3BE3681F4802007–
ASTRA42.48 THD 8F3BE3681F4802007–
ASTRA42.50HD 8F3BE0681K5002005–
ASTRA42.50 THD 8F3BE0681K5002005–
ASTRA42.52 THD 8F3BE3681E5202007–
ASTRA42.56 THD 8F3BE3681A5602007–
ASTRA44.36HD 8F3BE0681J3602005–
ASTRA44.36 THD 8F3BE0681J3602005–
ASTRA44.40 THD 8F3BE0681H4002005–
ASTRA44.40, 44.41HD 8F3BE3681D400-4102005–
ASTRA44.40, 44.41HD 8F3BE0681H400-4102005–
ASTRA44.41 THD 8F3BE3681D4102007–
ASTRA44.44 THD 8F3BE3681G4402007–
ASTRA44.44, 44.45HD 8F3BE0681D440-4502005–
ASTRA44.44, 44.45HD 8F3BE3681G440-4502005–
ASTRA44.45 THD 8F3BE0681D4502005–
ASTRA44.48HD 8F3BE3681F4802007–
ASTRA44.48 THD 8F3BE3681F4802007–
ASTRA44.50 THD 8F3BE0681K5002005–
ASTRA44.52 THD 8F3BE3681E5202007–
ASTRA44.56 THD 8F3BE3681A5602007–
ASTRA64.36HD 8F3BE0681J3602005–
ASTRA64.36 THD 8F3BE0681J3602005–
ASTRA64.50HD 9F3HFE611B5002014–
ASTRA66.52 THD 8F3BE3681E5202007–
ASTRA66.54HD 8F3BE0681A5402007–
ASTRA66.56HD 8F3BE3681A5602007–
ASTRA66.56 THD 8F3BE3681A5602007–
ASTRA84.36HD 8F3BE0681J3602005–
ASTRA84.40, 84.41HD 8F3BE3681D400-4102005–
ASTRA84.40, 84.41HD 8F3BE0681H400-4102005–
ASTRA84.48HD 8F3BE3681F4802007–
ASTRA84.50HD 8F3BE0681K5002005–
ASTRA84.50HD 9F3HFE611B5002014–
ASTRA84.52HD 8F3BE3681E5202007–
ASTRA84.54HD 8F3BE0681A5402005–
ASTRA84.56HD 8F3BE3681A5602007–
ASTRA86.40HD 8F3BE0681H4002005–
ASTRA86.44, 86.45HD 8F3BE3681G440-4502005–
ASTRA86.44, 86.45HD 8F3BE0681D440-4502005–
ASTRA86.48HD 8F3BE3681F4802007–
ASTRA86.50HD 8F3BE0681K5002005–
ASTRA86.52HD 8F3BE3681E5202007–
ASTRA86.54HD 8F3BE0681A5402005–
ASTRA86.56HD 8F3BE3681A5602007–
ASTRA88.45HD 8F3BE0681D4502005–
ASTRA88.48HD 8F3BE3681F4802007–
ASTRA88.50HD 8F3BE0681K5002005–
ASTRA88.52HD 8F3BE3681E5202007–
ASTRA88.54HD 8F3BE0681A5402005–
ASTRA88.56HD 8F3BE3681A5602007–
IVECO190 E 39, 190 E 39 /P, 190 E39 /FPEUROTECH MPF3AE0681E3901999–
IVECO190 E 43, 190 E 43 /PEUROTECH MPF3AE0681D4302001–
IVECO260 E 39 Y, 260 E 39 Y/P, 260 E 39 Y/FP, 260 E 39 Y/FSEUROTECH MPF3AE0681E3901999–
IVECO260 E 43 Y, 260 E 43 Y/PEUROTECH MPF3AE0681D4301999–
IVECO440 E 39 TX/PEUROTECH MPF3AE0681E3901999–
IVECOAD 190S40, AT 190S40STRALIS IF3AE0681B4002003–
IVECOAD 190S40, AT 190S40STRALIS IF3AE0681H4002003–
IVECOAD 190S43, AT 190S43STRALIS IF3AE0681D4302003–
IVECOAD 190S45, AT 190S45STRALIS IF3AE3681A4502006–
IVECOAD 190T38 W, AT 190T38 WTRAKKER IF3BE0681G3802005–2012
IVECOAD 190T38 W, AT 190T38 WTRAKKER IF3BE0681G3802004–2007
IVECOAD 190T38, AT 190T38TRAKKER IF3BE0681G3802004–2012
IVECOAD 190T38, AT 190T38TRAKKER IF3BE0681G3802004–2012
IVECOAD 190T44 W, AD 190T45 W, AT 190T44 W, AD 190T45WTRAKKER IF3BE3681C440-4502004–2012
IVECOAD 190T44 W, AD 190T45 W, AT 190T44 W, AD 190T45WTRAKKER IF3BE0681C440-4502004–2012
IVECOAD 190T44, AD 190T45, AT 190T44, AT 190T45TRAKKER IF3BE3681C440-4502004–2012
IVECOAD 190T44, AD 190T45, AT 190T44, AT 190T45TRAKKER IF3BE0681C440-4502004–2012
IVECOAD 190T44, AT 190T44, AD 19T45, AT 190T45TRAKKER IF3BE3681G4402005–2007
IVECOAD 260S40, AT 260S40STRALIS IF3AE0681B4002003–
IVECOAD 260S40, AT 260S40STRALIS IF3AE0681B4002003–
IVECOAD 260S40, AT 260S40STRALIS IF3AE0681H4002003–
IVECOAD 260S40, AT 260S40STRALIS IF3AE0681H4002003–
IVECOAD 260S42, AT 260S42STRALIS IF3AE3681B4222006–
IVECOAD 260S42, AT 260S42, AS 260S42STRALIS IF3AE3681B4222007–
IVECOAD 260S42, AT 260S42, AS 260S42STRALIS IF3AE3681B4222007–
IVECOAD 260S43, AT 260S43STRALIS IF3AE0681D4302003–
IVECOAD 260S43, AT 260S43STRALIS IF3AE0681D4302003–
IVECOAD 260S45, AT 260S45STRALIS IF3AE3681A4502006–
IVECOAD 260S45, AT 260S45, AS 260S45STRALIS IF3AE3681A4502007–
IVECOAD 260S45, AT 260S45, AS 260S45STRALIS IF3AE3681A4502007–
IVECOAD 260T38 , AT 260T38TRAKKER IF3BE0681G3802004–
IVECOAD 260T38 BTRAKKER IF3BE0681G3802005–2007
IVECOAD 260T38 W, AT 260T38 WTRAKKER IF3BE0681G3802005–2007
IVECOAD 260T38, AD 260T38 /P, AT 260T38TRAKKER IF3BE0681G3802005–2007
IVECOAD 260T41 W, AD 380T41 W, AT 260T41 W, AT 380T41 WTRAKKER IF3BE3681D4102006–2012
IVECOAD 260T44 W, AT 260T44 WTRAKKER IF3BE0681C4402005–2007
IVECOAD 260T44, AD 260T44 /P, AT 260T44TRAKKER IF3BE0681C4402005–2007
IVECOAD 260T45 W, AD 380T45 W, AT 260T45 W, AT 380T45 WTRAKKER IF3BE3681C4502006–2012
IVECOAD 260T48, AT 260T48TRAKKER IF3BE0681E4802005–2007
IVECOAD 340T38 B, AT 34T38 BTRAKKER IF3BE0681G3802005–2007
IVECOAD 340T41 BTRAKKER IF3BE3681D4112006–2012
IVECOAD 340T41, AT 340T41TRAKKER IF3BE3681D4102006–2012
IVECOAD 340T44 B, AT 340T44 BTRAKKER IF3BE0681C4402005–2007
IVECOAD 340T44, AT 340T44TRAKKER IF3BE0681C4402005–2007
IVECOAD 340T45 BTRAKKER IF3BE3681C4502006–2012
IVECOAD 340T45, AT 340T45TRAKKER IF3BE3681C4502006–2012
IVECOAD 380T38 BTRAKKER IF3BE0681G3802005–2012
IVECOAD 380T38 W, AT 380T38 WTRAKKER IF3BE0681G3802005–2007
IVECOAD 380T38, AT 380T38TRAKKER IF3BE0681G3802005–2007
IVECOAD 380T42 WTRAKKER IF3BE0681V4202005–2012
IVECOAD 380T44 BTRAKKER IF3BE0681C4402005–2007
IVECOAD 380T44 W, AT 380T44 WTRAKKER IF3BE0681C4402005–2012
IVECOAD 380T44, AT 380T44TRAKKER IF3BE0681C4402005–2007
IVECOAD 380T48, AD 380T48TRAKKER IF3BE0681E4802005–2007
IVECOAD 400T38 T, AT 400T38 TTRAKKER IF3BE0681G3802005–2012
IVECOAD 400T38 WT, AT 400T38 WTTRAKKER IF3BE0681G3802005–2007
IVECOAD 400T41 WT, AT 400T41 WTTRAKKER IF3BE3681D4102006–2012
IVECOAD 400T44 T, AT 400T44 TTRAKKER IF3BE0681C4402005–2007
IVECOAD 400T44 WT, AT 400T44 WTTRAKKER IF3BE0681C4402005–2012
IVECOAD 400T45 WT, AT 400T45 WTTRAKKER IF3BE3681C4502006–2012
IVECOAD 410T38TRAKKER IF3BE0681G3802005–2007
IVECOAD 410T38 B, AT 410T38 BTRAKKER IF3BE0681G3802005–2007
IVECOAD 410T41, AT 410T41TRAKKER IF3BE3681D4102006–2012
IVECOAD 410T44 B, AT 410T44 BTRAKKER IF3BE0681C4402005–2012
IVECOAD 410T44 W , AT 410T44 WTRAKKER IF3BE0681C4402005–2012
IVECOAD 410T44, AT 410T44TRAKKER IF3BE0681C4402005–2007
IVECOAD 410T45 WTRAKKER IF3BE3681C4502007–2012
IVECOAD 410T45 WTRAKKER IF3BE3681C4502006–2012
IVECOAD 410T45, AT 410T45TRAKKER IF3BE3681C4502006–2012
IVECOAD 410T48 B, AT 410T48 BTRAKKER IF3BE0681E4802005–2007
IVECOAD 410T48, AT 410T48TRAKKER IF3BE0681E4802005–2007
IVECOAD 410T50, AT 410T50TRAKKER IF3BE3681B5002006–2012
IVECOAD 440S40, AT 440S40STRALIS IF3AE0681B4002003–
IVECOAD 440S40, AT 440S40STRALIS IF3AE0681H4002003–
IVECOAD 440S40, AT 440S40STRALIS IF3AE0681B4002003–
IVECOAD 440S40, AT 440S40STRALIS IF3AE0681B4002003–
IVECOAD 440S40, AT 440S40STRALIS IF3AE0681H4002003–
IVECOAD 440S42, AT 440S42STRALIS IF3AE3681D4222006–
IVECOAD 440S42, AT 440S42STRALIS IF3AE3681B4222006–
IVECOAD 440S43, AT 440S43STRALIS IF3AE0681D4302003–
IVECOAD 440S43, AT 440S43STRALIS IF3AE0681D4302003–
IVECOAD 440S45, AT 440S45STRALIS IF3AE3681A4502006–
IVECOAD 720T38 T, AT 720T38 TTRAKKER IF3BE0681G3802005–2012
IVECOAD 720T38 WT, AT 720T38 WTTRAKKER IF3BE0681G3802005–2012
IVECOAD 720T44 T, AT 720T44 TTRAKKER IF3BE0681C4402005–2007
IVECOAD 720T44 WT, AT 720T44 WTTRAKKER IF3BE0681C4402005–2007
IVECOAD 720T48 T, AT 720T48 TTRAKKER IF3BE0681E4802005–2007
IVECOAD190S40P CNGSTRALIS IIF2CFE601E4002012–
IVECOAD190S42STRALIS IIF3GFE611D4202012–
IVECOAD190S42STRALIS IIF3AE3681D4212012–
IVECOAD190S42FPS-WAYF3GGE611C4202019–
IVECOAD190S42FPSTRALIS IIF3AE3681D4212012–
IVECOAD190S42FPSTRALIS IIF3GFE611D4202012–
IVECOAD190S42FP MY16STRALIS IIF3GFE611F4202016–
IVECOAD190S42PS-WAYF3GGE611C4202019–
IVECOAD190S42PSTRALIS IIF3AE3681D4212012–
IVECOAD190S42PSTRALIS IIF3GFE611D4202012–
IVECOAD190S42P MY16STRALIS IIF3GFE611F4202016–
IVECOAD190S42 MY16STRALIS IIF3GFE611F4202016–
IVECOAD190S46FPS-WAYF3GGE611B4602019–
IVECOAD190S46FPSTRALIS IIF3GFE611B4602012–
IVECOAD190S46PS-WAYF3GGE611B4602019–
IVECOAD190S46PSTRALIS IIF3GFE611B4602012–
IVECOAD190S46PSTRALIS IIF3AE3681Y4602012–
IVECOAD190S48STRALIS IIF3GFE611A4802012–
IVECOAD190S48FPS-WAYF3GGE611A4802019–
IVECOAD190S48FPSTRALIS IIF3GFE611A4802012–
IVECOAD190S48PS-WAYF3GGE611A4802019–
IVECOAD190S48PSTRALIS IIF3GFE611A4802012–
IVECOAD190S48P MY16STRALIS IIF3GFE611G4802016–
IVECOAD190S48 MY16STRALIS IIF3GFE611G4802016–
IVECOAD190T38TRAKKER IF3BEE681G3792007–2012
IVECOAD190T38WTRAKKER IF3BEE681G3792007–2012
IVECOAD190T41TRAKKER IF3BE3681D4112004–2012
IVECOAD190T41TRAKKER IIF3HFE611D4112012–
IVECOAD190T41TRAKKER IIF3BE3681D4112012–
IVECOAD190T41WTRAKKER IF3BE3681D4112004–2012
IVECOAD190T41WTRAKKER IIF3HFE611D4112012–
IVECOAD190T41WTRAKKER IIF3BE3681D4112012–
IVECOAD190T41WPTRAKKER IIF3HFE611D4112012–
IVECOAD190T42WTRAKKER IF3BEE681V4202007–2012
IVECOAD190T45TRAKKER IIF3HFE611C4502012–
IVECOAD190T45TRAKKER IIF3BE3681C4512012–
IVECOAD190T45WTRAKKER IIF3HFE611C4502012–
IVECOAD190T45WTRAKKER IIF3BE3681C4512012–
IVECOAD190T45WPTRAKKER IIF3HFE611C4502012–
IVECOAD190T45WPTRAKKER IIF3BE3681C4512012–
IVECOAD190X33STRALIS IIF2CFE611C3302017–
IVECOAD190X33PSTRALIS IIF2CFE611C3302017–
IVECOAD260S31FP MY16STRALIS IIF2CFE611D3102016–
IVECOAD260S31FP MY16STRALIS IIF2CFE611D3102016–
IVECOAD260S31P MY16STRALIS IIF2CFE611D3102016–
IVECOAD260S42FPS-WAYF3GGE611C4202019–
IVECOAD260S42FPS-WAYF3GGE611C4202019–
IVECOAD260S42FPSTRALIS IIF3AE3681D4212012–
IVECOAD260S42FPSTRALIS IIF3GFE611D4202012–
IVECOAD260S42FPSTRALIS IIF3GFE611D4202012–
IVECOAD260S42FP MY16STRALIS IIF3GFE611F4202016–
IVECOAD260S42FP MY16STRALIS IIF3GFE611F4202016–
IVECOAD260S42PS-WAYF3GGE611C4202019–

Visar 200 av 1286 fordon
