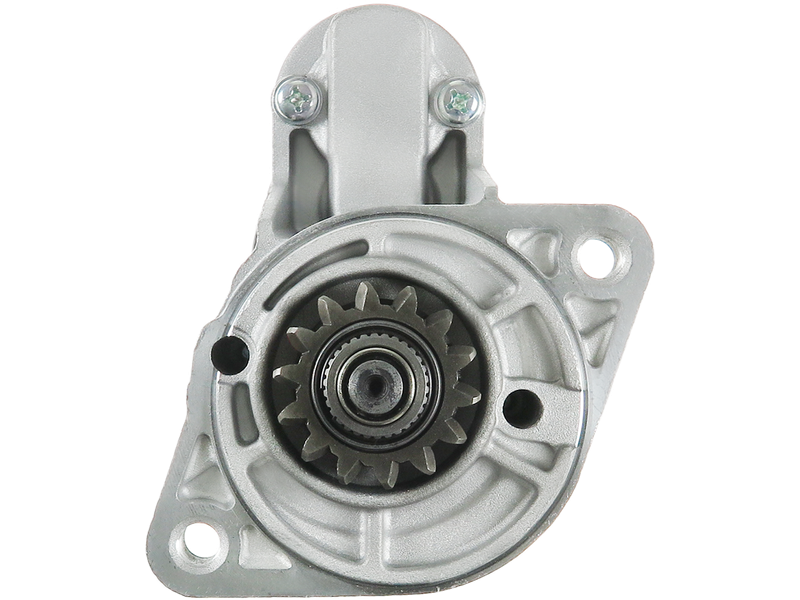

AS-PL S5438S Startmotor — MITSUBISHI, HYUNDAI, DOOSAN

AS-PL S5438S Startmotor — MITSUBISHI, HYUNDAI, DOOSAN

776,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MITSUBISHI

Spänning [ V ] 12
Effekt [ kW ] 1.20
Startmotors rotation CW
A-storlek [ mm ] 77.00
B-storlek [ mm ] 18.00
Antal kuggar [ qty. ] 14
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 207.00
O.1 [ mm ] 105.00
C.1 [ mm ] M10x1.25
C.2 [ mm ] M10x1.25
AS-PLSTANDARD LINE
EAN5902129130789
ErsätterMITSUBISHI
OE-nummerM0T60481

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S5438S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBISHI.

OE-nummer: M0T60481

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.20
Startmotors rotation CW
A-storlek [ mm ] 77.00
B-storlek [ mm ] 18.00
Antal kuggar [ qty. ] 14
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 2
L.1 [ mm ] 207.00
O.1 [ mm ] 105.00
C.1 [ mm ] M10x1.25
C.2 [ mm ] M10x1.25

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
DOOSAN1.0DX15L3E02009–
DOOSAN1.0DX18L3E02009–
DOOSAN1.0Solar 015L3E02002–2008
DOOSAN1.0Solar 018-VTL3E02004–2008
HYUNDAI1.3ACCENT Saloon (X-3)G4EH60Petrol1994–2000
HYUNDAI1.3ACCENT Saloon (X-3)G4CH60Petrol1994–2000
HYUNDAI1.3PONY (X-1)G13B68Petrol1985–1989
HYUNDAI1.3PONY (X-2)G4DG67Petrol1989–1995
HYUNDAI1.3PONY / EXCEL Saloon (X-2)G4DG67Petrol1990–1995
HYUNDAI1.3 i 12VACCENT Saloon (X-3)G4EH84Petrol1994–2000
HYUNDAI1.4PONY4G3368Petrol1977–1985
HYUNDAI1.4PONY Wagon4G3368Petrol1978–1986
HYUNDAI1.5PONY / EXCEL Saloon (X-2)G15B72Petrol1990–1995
HYUNDAI1.5PONY / EXCEL Saloon (X-2)G4DJ72Petrol1990–1995
HYUNDAI1.5 iPONY (X-2)G15B83Petrol1989–1995
HYUNDAI1.5 iPONY (X-2)G15B84Petrol1989–1995
HYUNDAI1.5 iPONY (X-2)G4DJ83Petrol1989–1995
HYUNDAI1.5 iPONY (X-2)G4DJ84Petrol1989–1995
HYUNDAI1.5 iPONY / EXCEL Saloon (X-2)G4DJ84Petrol1990–1995
HYUNDAI1.5 iPONY / EXCEL Saloon (X-2)G15B84Petrol1990–1995
HYUNDAI1.5 iS COUPE (SLC)G4DJ84Petrol1990–1996
HYUNDAI1.5 i 12VACCENT I (X-3)G4EK88Petrol1994–2000
HYUNDAI1.5 i 12VACCENT Saloon (X-3)G4EK88Petrol1994–2000
HYUNDAI1.5 i 16VACCENT Saloon (X-3)G4FK99Petrol1995–2000
HYUNDAI1.6 i.e. 16VLANTRA I (J-1)G4CR106Petrol1990–1995
HYUNDAI1.6 i.e. 16VLANTRA I (J-1)G4CR114Petrol1990–1995
HYUNDAI1.8 iSONATA II (Y-2)G4CM95Petrol1988–1993
HYUNDAI1.8 iSONATA III (Y-3)G4CM98Petrol1993–1998
HYUNDAI1.8 i.e. 16VLANTRA I (J-1)G4CN127Petrol1990–1995
HYUNDAI2.0 16VSANTAMOG4JP139Petrol1999–2002
HYUNDAI2.0 16V 4x4SANTAMOG4CP-D139Petrol1999–2002
HYUNDAI2.0 iSONATA II (Y-2)G4CP101Petrol1988–1991
HYUNDAI2.0 iSONATA II (Y-2)G4CP109Petrol1991–1993
HYUNDAI2.0 iSONATA III (Y-3)G4CP105Petrol1994–1996
HYUNDAI2.0 iSONATA III (Y-3)G4EP95Petrol1996–1998
HYUNDAI2.0 i 16VSONATA II (Y-2)G4CP-D130Petrol1991–1993
HYUNDAI2.0 i 16VSONATA III (Y-3)G4CP-DM125Petrol1996–1998
HYUNDAI2.0 i 16VSONATA III (Y-3)G4CP-D139Petrol1993–1998
HYUNDAI2.4H-1 / STAREX Bus (A1)G4CS112Petrol1997–2004
HYUNDAI2.4H-1 Van (A1)G4CS112Petrol2000–2004
HYUNDAI2.4H100 Bus (P)G4CS122Petrol1993–2000
HYUNDAI2.4H100 Bus (P)G4CS114Petrol1997–2000
HYUNDAI2.4H100 VanG4CS111Petrol1997–2004
HYUNDAI2.4 4WDH-1 / STAREX Bus (A1)G4CS112Petrol1998–2004
HYUNDAI2.5 DH-1 / STAREX Bus (A1)D4BH78Diesel1997–2004
HYUNDAI2.5 DH-1 / STAREX Bus (A1)D4BF78Diesel1997–2004
HYUNDAI2.5 DH-1 Platform/ChassisD4BH99Diesel2000–2006
HYUNDAI2.5 DH100 Bus (P)D4BA78Diesel1994–2000
HYUNDAI2.5 DH100 Bus (P)D4BX75Diesel1993–1994
HYUNDAI2.5 DH100 Platform/ChassisD4BA78Diesel1993–1997
HYUNDAI2.5 DH100 Platform/ChassisD4BF80Diesel1996–1997
HYUNDAI2.5 DH100 VanD4BX75Diesel1993–1994
HYUNDAI2.5 DH100 VanD4BA78Diesel1994–2000
HYUNDAI2.5 DTERRACAN (HP)D4BH101Diesel2001–2003
HYUNDAI2.5 TCiH-1 / STAREX Bus (A1)D4BH101Diesel2004–2007
HYUNDAI2.5 TCiH-1 / STAREX Bus (A1)D4BH99Diesel1997–2007
HYUNDAI2.5 TDGALLOPER I4D56-T85Diesel1991–1998
HYUNDAI2.5 TDGALLOPER II (JK-01)D4BF88Diesel1998–2003
HYUNDAI2.5 TDGALLOPER II (JK-01)D4BA88Diesel1998–2003
HYUNDAI2.5 TDH-1 / STAREX Bus (A1)D4BF80Diesel1997–2004
HYUNDAI2.5 TDH-1 Van (A1)D4BH99Diesel2000–2006
HYUNDAI2.5 TDH-1 Van (A1)D4BF80Diesel2000–2000
HYUNDAI2.5 TDH-1 Van (A1)D4BH101Diesel2001–2007
HYUNDAI2.5 TDH100 Bus (P)D4BF80Diesel1993–2000
HYUNDAI2.5 TDTERRACAN (HP)D4BH101Diesel2001–2006
HYUNDAI2.5 TD 4WDH-1 / STAREX Bus (A1)D4BH101Diesel2001–2004
HYUNDAI2.5 TD 4WDH-1 / STAREX Bus (A1)D4BF80Diesel1998–2004
HYUNDAI2.5 TD 4WDH-1 / STAREX Bus (A1)D4BH99Diesel2001–2004
HYUNDAI2.5 TD intercoolerGALLOPER I4D56-T95Diesel1991–1998
HYUNDAI2.5 TD intercoolerGALLOPER II (JK-01)D4BH99Diesel1998–2003
HYUNDAI2.5 TDiCH100 VanD4BF80Diesel1998–2003
HYUNDAI2.6 DH100 VanD4BB78Diesel1999–2004
KIA2.0JOICE (MTE1P)G4CP139Petrol2000–2003
MITSUBISHI1.6 (A174)LANCER II (A17_)4G32GS84Petrol1981–1983
MITSUBISHI1.6 (A174)LANCER II (A17_)4G32GS82Petrol1979–1983
MITSUBISHI1.6 (L032P, L062P)L 300 / DELICA II Van (L03_P)4G3265Petrol1980–1986
MITSUBISHI1.8 (E32A)GALANT VI (E3_A)4G3790Petrol1988–1992
MITSUBISHI1.8 (E32A)GALANT VI Saloon (E3_A)4G3790Petrol1987–1992
MITSUBISHI1.8 4WD (D05V, D05W)SPACE WAGON (D0_V/W)4G3790Petrol1987–1988
MITSUBISHI1.8 D (C14V)LANCER III Station Wagon (C1_V, C3_V)4D6560Diesel1986–1992
MITSUBISHI1.8 D (C14V)LANCER III Station Wagon (C1_V, C3_V)4D6558Diesel1985–1986
MITSUBISHI1.8 D (C64A)LANCER IV Hatchback (C6_A, C7_A)4D6560Diesel1988–1992
MITSUBISHI1.8 Diesel (C14AS)LANCER III (C1_A, C6_A)4D6560Diesel1986–1988
MITSUBISHI1.8 Diesel (C14AS)LANCER III (C1_A, C6_A)4D6558Diesel1984–1986
MITSUBISHI1.8 Diesel GLX (C54A)COLT III (C5_A)4D6560Diesel1988–1992
MITSUBISHI1.8 GL Diesel (C14A)COLT II (C1_A)4D6558Diesel1984–1986
MITSUBISHI1.8 GL Diesel (C14A)COLT II (C1_A)4D6560Diesel1986–1988
MITSUBISHI1.8 GLX (D05V, D05W)SPACE WAGON (D0_V/W)4G3790Petrol1984–1988
MITSUBISHI1.8 GLX Diesel (C64A)LANCER IV (C6_A, C7_A)4D6560Diesel1988–1992
MITSUBISHI1.8 GTi 16V (C68A)LANCER IV Hatchback (C6_A, C7_A)4G67136Petrol1989–1992
MITSUBISHI1.8 GTi 16V Cat (C58A)COLT III (C5_A)4G67136Petrol1990–1992
MITSUBISHI1.8 TD (D09V, D09W)SPACE WAGON (D0_V/W)4D65T75Diesel1986–1991
MITSUBISHI1.8 TD (N35W)SPACE WAGON (N3_W, N4_W)4D65T75Diesel1991–1998
MITSUBISHI1.8 Turbo-D (E14A)GALANT V (E1_A)4D65T82Diesel1984–1990
MITSUBISHI1.8 Turbo-D (E34A)GALANT VI (E3_A)4D65T75Diesel1988–1992
MITSUBISHI1.8 Turbo-D (E34A)GALANT VI Saloon (E3_A)4D65T75Diesel1987–1992
MITSUBISHI2.0L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V)4G63(SOHC16V)116Petrol1996–2001
MITSUBISHI2.0 (E39A, E38A, E33A)GALANT VI (E3_A)4G63(SOHC8V)109Petrol1989–1992
MITSUBISHI2.0 (K62T)L200 (K7_T, K6_T, K5_T)4G63(SOHC16V)122Petrol1996–2007
MITSUBISHI2.0 (P03V, P13V)L 300 III Van (P0_V, P1_V, P2_V)G63B87Petrol1986–1996
MITSUBISHI2.0 (P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC8V)90Petrol1986–2004
MITSUBISHI2.0 (P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)G63B87Petrol1986–2004
MITSUBISHI2.0 16V (PA3V/W, PB3V, PA3W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G63(SOHC16V)115Petrol1995–2000
MITSUBISHI2.0 4WD (D08W)SPACE WAGON (D0_V/W)4G63(SOHC8V)102Petrol1985–1991
MITSUBISHI2.0 4WD (E33A, E38A, E39A)GALANT VI (E3_A)4G63(SOHC8V)109Petrol1989–1992
MITSUBISHI2.0 4WD (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(SOHC8V)109Petrol1988–1992
MITSUBISHI2.0 4WD (L037G)L 300 / DELICA II Bus (L03_P/G, L0_2P)4G63(SOHC8V)88Petrol1986–1987
MITSUBISHI2.0 4WD (P23W, P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC8V)88Petrol1986–2004
MITSUBISHI2.0 4WD (P23W, P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC8V)90Petrol1986–2004
MITSUBISHI2.0 D (C67A)LANCER IV Hatchback (C6_A, C7_A)4D6868Diesel1992–1993
MITSUBISHI2.0 D (CB8W)LANCER V Station Wagon (CB_W, CD_W)4D6868Diesel1992–2003
MITSUBISHI2.0 Diesel (CB8A)LANCER V (CB_A, CD_A, CE_A)4D6868Diesel1992–1996
MITSUBISHI2.0 GLS (A163)GALANT IV (A16_)4G63(SOHC8V)102Petrol1980–1984
MITSUBISHI2.0 GLS (E15A)GALANT V (E1_A)4G63(SOHC8V)102Petrol1984–1990
MITSUBISHI2.0 GLSI (E55A)GALANT VII (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSI (E55A)GALANT VII Saloon (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSI 4WD (E75A)GALANT VII (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSI 4WD (E75A)GALANT VII Saloon (E5_A, E7_A, E8_A)4G63(SOHC16V)137Petrol1992–1996
MITSUBISHI2.0 GLSTD (E57A)GALANT VII (E5_A, E7_A, E8_A)4D68T90Diesel1992–1996
MITSUBISHI2.0 GLSTD (E57A)GALANT VII Saloon (E5_A, E7_A, E8_A)4D68T90Diesel1992–1996
MITSUBISHI2.0 GLXGALANT III (A12_)4G5286Petrol1977–1980
MITSUBISHI2.0 GLX (A123V)GALANT III Station Wagon (A12_V)4G5298Petrol1979–1980
MITSUBISHI2.0 GLX (D04W)SPACE WAGON (D0_V/W)G63B84Petrol1986–1988
MITSUBISHI2.0 GLX 4WD (D08W)SPACE WAGON (D0_V/W)G63B84Petrol1986–1988
MITSUBISHI2.0 GLXi (D04W)SPACE WAGON (D0_V/W)4G63(SOHC8V)101Petrol1988–1991
MITSUBISHI2.0 GLXi 4WD (D08W)SPACE WAGON (D0_V/W)4G63(SOHC8V)101Petrol1988–1991
MITSUBISHI2.0 GSR (A78A)LANCER CELESTE Coupe (A7_)4G5297Petrol1977–1981
MITSUBISHI2.0 GSR (A78A)LANCER CELESTE Coupe (A7_)4G5290Petrol1975–1981
MITSUBISHI2.0 GSR (A78A)LANCER CELESTE Coupe (A7_)4G52105Petrol1979–1981
MITSUBISHI2.0 GTI 16V (E39A, E38A, E33A)GALANT VI (E3_A)4G63(DOHC16V)144Petrol1988–1992
MITSUBISHI2.0 GTI 16V (E39A, E38A, E33A)GALANT VI (E3_A)4G63(DOHC16V)146Petrol1988–1992
MITSUBISHI2.0 GTI 16V 4x4 (E38A, E39A, E33A)GALANT VI (E3_A)4G63(DOHC16V)144Petrol1989–1992
MITSUBISHI2.0 GTi 16V (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(DOHC16V)145Petrol1988–1992
MITSUBISHI2.0 GTi 16V (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(DOHC16V)144Petrol1987–1992
MITSUBISHI2.0 GTi 16V 4WD (E39A, E38A, E33A)GALANT VI Saloon (E3_A)4G63(DOHC16V)144Petrol1988–1992
MITSUBISHI2.0 TD (N18W)SPACE RUNNER MPV (N1_W, N2_W)4D68T82Diesel1992–1999
MITSUBISHI2.0 TD (N38W)SPACE WAGON (N3_W, N4_W)4D68T82Diesel1992–1998
MITSUBISHI2.0 TDI (EA6A)GALANT VIII (EA_)4D68T90Diesel1996–2004
MITSUBISHI2.0 TDI (EA6W)GALANT VIII Estate (EA_, EC_)4D68T90Diesel1996–2003
MITSUBISHI2.0 Turbo ECi (A164)GALANT IV (A16_)4G63-T(ECI)170Petrol1982–1984
MITSUBISHI2.0 Turbo ECi (A176)LANCER II (A17_)4G63-T(SOHC8V)170Petrol1981–1983
MITSUBISHI2.0 Turbo ECi (A183A)STARION (A18_A)4G63-T(ECI)170Petrol1982–1985
MITSUBISHI2.0 Turbo ECi (A183A)STARION (A18_A)4G63-T/C180Petrol1985–1987
MITSUBISHI2.0 Turbo ECi (E15A)GALANT V (E1_A)4G63-T(SOHC8V)150Petrol1984–1990
MITSUBISHI2.0 i (P00W, P03W, P13W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G63(SOHC16V)113Petrol1994–1998
MITSUBISHI2.0 i 16V (D22A, D27A)ECLIPSE I (D2_A)4G63(DOHC16V)150Petrol1991–1995
MITSUBISHI2.0 i 16V 4WD (D22A, D27A)ECLIPSE I (D2_A)4G63(DOHC16V)150Petrol1991–1995
MITSUBISHI2.3 D (L038P)L 300 / DELICA II Bus (L03_P/G, L0_2P)4D5568Diesel1983–1986
MITSUBISHI2.3 D (L038P, L068P)L 300 / DELICA II Van (L03_P)4D5568Diesel1983–1986
MITSUBISHI2.3 TD (L043G, L048G)PAJERO I (L04_G, L14_G)4D55-T84Diesel1982–1986
MITSUBISHI2.3 TD (L043G, L048G)PAJERO I Canvas Top (L04_G)4D55-T84Diesel1982–1986
MITSUBISHI2.3 Turbo-D (A167)GALANT IV (A16_)4D55-T84Diesel1980–1984
MITSUBISHI2.3 Turbo-D (A167V)GALANT IV Station Wagon (A16_V)4D55-T84Diesel1983–1984
MITSUBISHI2.4 (P04W, P14W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G64(8V)112Petrol1990–2004
MITSUBISHI2.4 4WD (K75T)L200 (K7_T, K6_T, K5_T)4G64(16V)132Petrol1996–2007
MITSUBISHI2.4 4WD (P24W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4G64(8V)112Petrol1986–2004
MITSUBISHI2.4 GLS (E16A)GALANT V (E1_A)G64B112Petrol1985–1990
MITSUBISHI2.4 i 4WD (PD4V/W)L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)4G64(16V)132Petrol1995–2000
MITSUBISHI2.5 D (K14T)L200 (K3_T, K2_T, K1_T, K0_T)4D56(8V)70Diesel1986–1996
MITSUBISHI2.5 D (L039P)L 300 / DELICA II Platform/Chassis (L03_P)4D56(8V)69Diesel1986–1994
MITSUBISHI2.5 D (P05V, P05W, P15V)L 300 III Van (P0_V, P1_V, P2_V)4D56(8V)69Diesel1986–2006
MITSUBISHI2.5 D (P05V, P15V)L 300 III Van (P0_V, P1_V, P2_V)4D56(8V)75Diesel1991–2003
MITSUBISHI2.5 D (P05W, P15W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4D56(8V)75Diesel1991–2003
MITSUBISHI2.5 D (P05W, P15W, P25W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4D56(8V)69Diesel1986–2004
MITSUBISHI2.5 D 4WD (K24T)L200 (K3_T, K2_T, K1_T, K0_T)4D56(8V)70Diesel1987–1993
MITSUBISHI2.5 TD (L044G, L049G)PAJERO I (L04_G, L14_G)4D56-T87Diesel1987–1991
MITSUBISHI2.5 TD (L044G, L049G)PAJERO I Canvas Top (L04_G)4D56-T84Diesel1986–1989
MITSUBISHI2.5 TD (P15T)L 300 III Platform/Chassis (P1_T )4D56-T87Diesel1994–2000
MITSUBISHI2.5 TD 4WD (K34T)L200 (K3_T, K2_T, K1_T, K0_T)4D56-T87Diesel1992–1996
MITSUBISHI2.5 TD 4WD (L049G, L149G)PAJERO I (L04_G, L14_G)4D56-T84Diesel1986–1991
MITSUBISHI2.5 TD 4WD (P25V)L 300 III Van (P0_V, P1_V, P2_V)4D56-T87Diesel1991–2003
MITSUBISHI2.5 TD 4WD (P25W, P35W)L 300 III Bus (P0_W, P1_W, P2_W, P3_W)4D56-T87Diesel1987–2004
MITSUBISHI2.5 TD 4WD (V24W)PAJERO II (V3_W, V2_W, V4_W, V5_W)4D56-TD99Diesel1990–1999
MITSUBISHI2.5 TDi (V64W, V74W)PAJERO III (V7_W, V6_W)4D56-T115Diesel2001–2006
MITSUBISHI2.5 TDi (V64W, V74W)PAJERO III Canvas Top (V6_W, V7_W)4D56-T99Diesel2000–2006
MITSUBISHI2.6 (L042G, L047G)PAJERO I Canvas Top (L04_G)4G54103Petrol1983–1990
MITSUBISHI2.6 (L042G, L047G)PAJERO I Canvas Top (L04_G)G54B103Petrol1983–1990
MITSUBISHI2.6 4WD (K33T)L200 (K3_T, K2_T, K1_T, K0_T)G54B103Petrol1989–1995
MITSUBISHI2.6 Turbo ECi (A187A)STARION (A18_A)G54BT/C155Petrol1987–1990
MITSUBISHI2000 GS 16V (D32A)ECLIPSE II (D3_A)4G63(DOHC16V)146Petrol1995–1999
MITSUBISHI2000 GT 16VECLIPSE II (D3_A)4G63-T(DOHC16V)214Petrol1995–1999
PROTON420 DPERSONA 400 Hatchback (C9_C, C9_S)4D68T82Diesel1996–2000
PROTON420 GLS DPERSONA 400 (C9_S)4D6865Diesel1996–1999
PROTON420 GLS DPERSONA 400 Hatchback (C9_C, C9_S)4D6865Diesel1996–1999
PROTON420 TDPERSONA 400 (C9_S)4D68T82Diesel1996–2000

Reviews

There are no reviews yet.

Be the first to review “AS-PL S5438S Startmotor — MITSUBISHI, HYUNDAI, DOOSAN”

Your email address will not be published. Required fields are marked *

Related products
