Mitsubishi S5524(MITSUBISHI) Startmotor — MAN, TEMSA

Mitsubishi S5524(MITSUBISHI) Startmotor — MAN, TEMSA

4 323,00 kr inkl. moms

PREMIUM LINE | Tillverkare: Mitsubishi | Ersätter: MITSUBISHI

Spänning [ V ] 24
Effekt [ kW ] 5.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 288;.00
O.1 [ mm ] 127.00
O.2 [ mm ] 82.00
O.3 [ mm ] 94.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50
MitsubishiPREMIUM LINE
EAN5902129162803
ErsätterMITSUBISHI
OE-nummerM8T62671

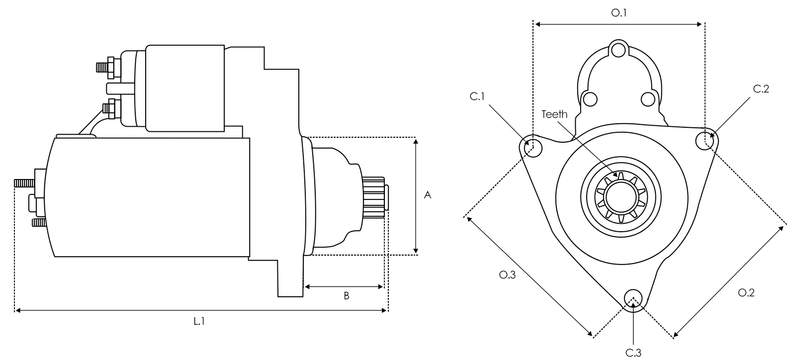

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S5524(MITSUBISHI) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBISHI.

OE-nummer: M8T62671

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 5.00
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 12
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 288;.00
O.1 [ mm ] 127.00
O.2 [ mm ] 82.00
O.3 [ mm ] 94.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
MAN10.180TGL ID0834LFLAB1802005–2022
MAN10.180TGL ID0834LFL411802005–2022
MAN10.180TGL ID0834LFL541802005–2022
MAN10.180TGL ID0834LFL541802005–2022
MAN10.180TGL ID0834LFL671802005–2022
MAN10.180TGL ID0834LFL671802005–2022
MAN10.180TGL ID0834LFL511802005–2022
MAN10.180TGL ID0834LFL511802005–2022
MAN10.180TGL ID0834LFL641802005–2022
MAN10.180TGL ID0834LFL751792012–2022
MAN10.180TGL ID0834LFL641802005–2022
MAN10.180TGL ID0834LFL411802005–2022
MAN10.210TGL ID0834LFL552062005–2022
MAN10.210TGL ID0834LFL522062005–2022
MAN10.210TGL ID0834LFL522062005–2022
MAN10.210TGL ID0834LFL422062005–2022
MAN10.210TGL ID0834LFL552062005–2022
MAN10.210TGL ID0834LFL422062005–2022
MAN10.220TGL ID0834LFL652202005–2022
MAN10.220TGL ID0834LFL652202005–2022
MAN10.220TGL ID0834LFL682202005–2022
MAN10.220TGL ID0834LFL682202005–2022
MAN10.220 FOC,10.220 FOCLL2000D0826LFL032201995–
MAN10.240TGL ID0836LFL502402005–2022
MAN10.240TGL ID0836LFL402402005–2022
MAN10.240TGL ID0836LFL402402005–2022
MAN10.240TGL ID0836LFL532402005–2022
MAN10.240TGL ID0836LFL532402005–2022
MAN10.240TGL ID0836LFL502402005–2022
MAN10.250TGL ID0836LFL752502008–2022
MAN10.250TGL ID0836LFL662502005–2022
MAN10.250TGL ID0836LFL662502005–2022
MAN10.250TGL ID0836LFL692502008–2022
MAN10.250TGL ID0836LFL632502005–2022
MAN10.250TGL ID0836LFL632502005–2022
MAN12.180TGL ID0834LFL511802005–2022
MAN12.180TGL ID0834LFL641802005–2022
MAN12.180TGL ID0834LFL751792012–2022
MAN12.180TGL ID0834LFL641802005–2022
MAN12.180TGL ID0834LFLAB1802005–2022
MAN12.180TGL ID0834LFL411802005–2022
MAN12.180TGL ID0834LFL411802005–2022
MAN12.180TGL ID0834LFL541802005–2022
MAN12.180TGL ID0834LFL541802005–2022
MAN12.180TGL ID0834LFL671802005–2022
MAN12.180TGL ID0834LFL671802005–2022
MAN12.180TGL ID0834LFL511802005–2022
MAN12.210TGL ID0834LFL552062005–2022
MAN12.210TGL ID0834LFL522062005–2022
MAN12.210TGL ID0834LFL422062005–2022
MAN12.210TGL ID0834LFL522062005–2022
MAN12.210TGL ID0834LFL552062005–2022
MAN12.210TGL ID0834LFL422062005–2022
MAN12.220TGL ID0834LFLAC2202005–2022
MAN12.220TGL ID0834LFL682202005–2022
MAN12.220TGL ID0834LFL762202005–2022
MAN12.220TGL ID0834LFL622202005–2022
MAN12.220TGL ID0834LFL792202005–2022
MAN12.220TGL ID0834LFL682202005–2022
MAN12.220TGL ID0834LFL912202005–2022
MAN12.220TGL ID0834LFL652202005–2022
MAN12.220TGL ID0834LFLAH2202005–2022
MAN12.220TGL ID0834LFL762202005–2022
MAN12.220TGL ID0834LFL652202005–2022
MAN12.220TGL ID0834LFL852202005–2022
MAN12.220TGL ID0834LFL622202005–2022
MAN12.220 HOCL/R-NLHOCLD0826LOH172201999–2009
MAN12.220 HOCL/R-NLHOCLD0826LOH152201999–2009
MAN12.240TGL ID0836LFL502402005–2022
MAN12.240TGL ID0836LFL502402005–2022
MAN12.240TGL ID0836LFL402402005–2022
MAN12.240TGL ID0836LFL532402005–2022
MAN12.240TGL ID0836LFL402402005–2022
MAN12.240TGL ID0836LFL532402005–2022
MAN12.240TGM ID0836LFL502402005–2022
MAN12.240TGM ID0836LFL532402005–2022
MAN12.240 HOCL-NLHOCLD0836LOH562402000–
MAN12.240 HOCL-NLHOCLD0836LOH522402000–
MAN12.245HOCLD0836LOH042452002–2006
MAN12.245HOCLD0836LOH042452004–2008
MAN12.250FOCD0836LOH652502004–
MAN12.250TGL ID0836LFL662502005–2022
MAN12.250TGL ID0836LFL632502005–2022
MAN12.250TGL ID0836LFL632502005–2022
MAN12.250TGL ID0836LFL752502005–2022
MAN12.250TGL ID0836LFL662502005–2022
MAN12.250TGL ID0836LFL602502005–2022
MAN12.250TGM ID0836LFL662502005–2022
MAN12.250TGM ID0836LFL752502008–2022
MAN12.250TGM ID0836LFL632502005–2022
MAN12.250TGM ID0836LFL692502008–2022
MAN12.260HOCLD0836LOH622602009–2014
MAN12.260HOCLD0836LOH632602005–2009
MAN12.260HOCLD0836LOH632602009–2014
MAN12.260HOCLD0836LOH622602005–2009
MAN12.280TGM ID0836LFL542802005–2022
MAN12.280TGM ID0836LFL512802005–2022
MAN12.290TGM ID0836LFL672902005–2022
MAN12.290TGM ID0836LFL702902008–2022
MAN12.290TGM ID0836LFL642902005–2022
MAN12.290TGM ID0836LFL762902008–2022
MAN13.220 HOCL/RHOCLD0826LOH03220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH05220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH17220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH04220-2302001–2004
MAN13.220 HOCL/RHOCLD0826LOH15220-2302001–2004
MAN13.240TGM ID0836LFL532402005–2022
MAN13.240TGM ID0836LFL402402006–2022
MAN13.240TGM ID0836LFL502402006–2022
MAN13.240TGM ID0836LFL532402006–2022
MAN13.240TGM ID0836LFL402402006–2022
MAN13.240TGM ID0836LFL502402006–2022
MAN13.240TGM ID0836LFL532402006–2022
MAN13.250TGM ID0836LFL662502005–2022
MAN13.250TGM ID0836LFL662502005–2022
MAN13.250TGM ID0836LFL662502005–2022
MAN13.250TGM ID0836LFL632502005–2022
MAN13.250TGM ID0836LFL632502005–2022
MAN13.250TGM ID0836LFL632502005–2022
MAN13.280TGM ID0836LFL412802006–2022
MAN13.280TGM ID0836LFL512802006–2022
MAN13.280TGM ID0836LFL542802006–2022
MAN13.280TGM ID0836LFL412802006–2022
MAN13.280TGM ID0836LFL512802006–2022
MAN13.280TGM ID0836LFL542802006–2022
MAN13.280TGM ID0836LFL542802005–2022
MAN13.290TGM ID0836LFL642902005–2022
MAN13.290TGM ID0836LFL672902005–2022
MAN13.290TGM ID0836LFL642902005–2022
MAN13.290TGM ID0836LFL642902005–2022
MAN13.290TGM ID0836LFL672902005–2022
MAN13.290TGM ID0836LFL672902005–2022
MAN14.220 HOCL/R-NLHOCLD0826LOH152201998–
MAN14.220 HOCL/R-NLHOCLD0826LUH112201998–
MAN14.220 HOCL/R-NLHOCLD0826LOH172201998–
MAN14.240 HOCL-NLHOCLD0836LOH522402000–
MAN14.240 HOCL-NLHOCLD0836LOH562402000–
MAN14.245HOCLD0836LOH042452004–2010
MAN14.250 HOCL-NLHOCLD0836LOH612502007–
MAN14.250 HOCL-NLHOCLD0826LOH102502007–
MAN14.260HOCLD0836LOH622602005–2009
MAN14.260HOCLD0836LOH632602005–2009
MAN14.280 HOCLHOCLD0836LOH402802002–2014
MAN14.280 HOCLHOCLD0836LOH402802002–2014
MAN14.280 HOCLHOCLD0836LOH552802002–2014
MAN14.280 HOCLHOCLD0836LOH552802002–2014
MAN14.280 HOCLHOCLD0836LOH512802002–2014
MAN14.290 HOCL-NLHOCLD0836LFL612902007–
MAN15.240TGM ID0836LFL532402005–2022
MAN15.240TGM ID0836LFL502402005–2022
MAN15.240TGM ID0836LFL402402005–2022
MAN15.240TGM ID0836LFL402402005–2022
MAN15.240TGM ID0836LFL532402005–2022
MAN15.250TGM ID0836LFL632502005–2022
MAN15.250TGM ID0836LFL692502008–2022
MAN15.250TGM ID0836LFL662502005–2022
MAN15.250TGM ID0836LFL662502005–2022
MAN15.250TGM ID0836LFL632502005–2022
MAN15.250TGM ID0836LFL752502008–2022
MAN15.280TGM ID0836LFL412802005–2022
MAN15.280TGM ID0836LFL512802005–2022
MAN15.280TGM ID0836LFL412802005–2022
MAN15.280TGM ID0836LFL542802005–2022
MAN15.280TGM ID0836LFL542802005–2022
MAN15.290TGM ID0836LFL672902005–2022
MAN15.290TGM ID0836LFL762902008–2022
MAN15.290TGM ID0836LFL672902005–2022
MAN15.290TGM ID0836LFL642902005–2022
MAN15.290TGM ID0836LFL702902008–2022
MAN15.290TGM ID0836LFL642902005–2022
MAN15.330TGM ID0836LFL443262005–2022
MAN15.330TGM ID0836LFL553262005–2022
MAN15.330TGM ID0836LFL553262005–2022
MAN15.330TGM ID0836LFL443262005–2022
MAN15.340TGM ID0836LFL683402005–2022
MAN15.340TGM ID0836LFL653402005–2022
MAN15.340TGM ID0836LFL653402005–2022
MAN15.340TGM ID0836LFL713402008–2022
MAN15.340TGM ID0836LFL773412012–2022
MAN15.340TGM ID0836LFL683402005–2022
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH05220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH17220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH04220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH15220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0836LOH03220-2301998–2001
MAN18.220 HOCL/R-NL, HOCL/SKD(SL)HOCLD0826LOH03220-2301998–2001
MAN18.240TGM ID0836LFL532402005–2022
MAN18.240TGM ID0836LFL402402005–2022
MAN18.240TGM ID0836LFL402402005–2022
MAN18.240TGM ID0836LFL402402005–2022
MAN18.240TGM ID0836LFL532402006–2022
MAN18.240TGM ID0836LFL402402006–2022
MAN18.240TGM ID0836LFL532402005–2022
MAN18.240TGM ID0836LFL532402005–2022
MAN18.240 HOCL-NLHOCLD0836LOH562402002–2009
MAN18.240 HOCL-NLHOCLD0836LOH522402002–2009
MAN18.250TGM ID0836LFL632502005–2022
MAN18.250TGM ID0836LFL632502005–2022
MAN18.250TGM ID0836LFL632502005–2022
MAN18.250TGM ID0836LFL632502005–2022

Visar 200 av 520 fordon
