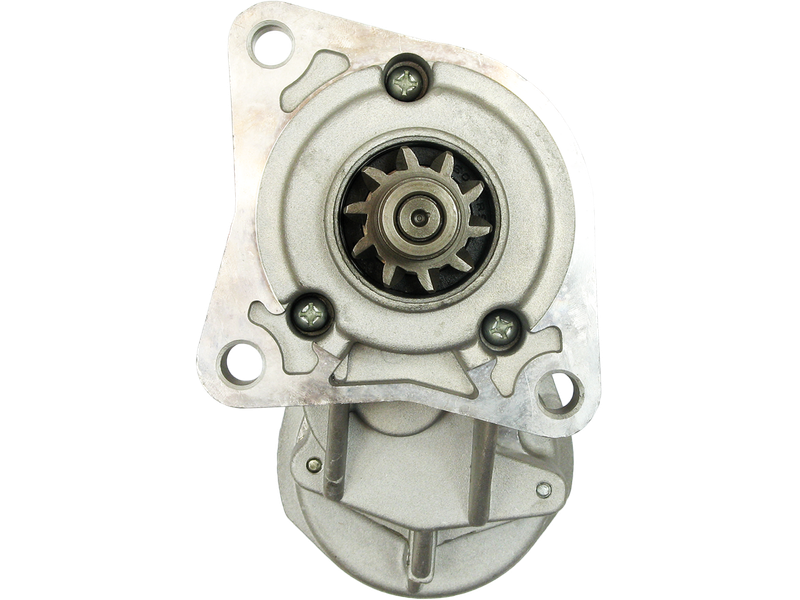

AS-PL S6071 Startmotor — CATERPILLAR

AS-PL S6071 Startmotor — CATERPILLAR

1 486,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Effekt [ kW ] 2.50
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 25.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 295.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50
AS-PLSTANDARD LINE
EAN5901259469578
ErsätterDENSO
OE-nummer128000-1060

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6071 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 128000-1060

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.50
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 25.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 295.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CATERPILLAR40C0–
CATERPILLART100D0–
CATERPILLART125D0–
CATERPILLART150D0–
CATERPILLART30B0–
CATERPILLART30C0–
CATERPILLART35B0–
CATERPILLART35C0–
CATERPILLART40B0–
CATERPILLART40C0–
CATERPILLART45B0–
CATERPILLART45C0–
CATERPILLART50B0–
CATERPILLART50C0–
CATERPILLART55B0–
CATERPILLART55C0–
CATERPILLART60D0–
CATERPILLART70D0–
CATERPILLART80D0–
CATERPILLART90D0–
CATERPILLARTC100D0–
CATERPILLARTC120D0–
CATERPILLARTC60C0–
CATERPILLARV1100–
CATERPILLARV1300–
CATERPILLARV1500–
CATERPILLARV25D0–
CATERPILLARV30D0–
CATERPILLARV35D0–
CATERPILLARV40DSA0–
CATERPILLARV40E0–
CATERPILLARV45C0–
CATERPILLARV50C0–
CATERPILLARV50DSA0–
CATERPILLARV50RE0–
CATERPILLARV55C0–
CATERPILLARV60D0–
CATERPILLARV70E0–
CATERPILLARV80D0–
CATERPILLARVC600–
CATERPILLARVC60C0–
CATERPILLARVC60DSA0–
