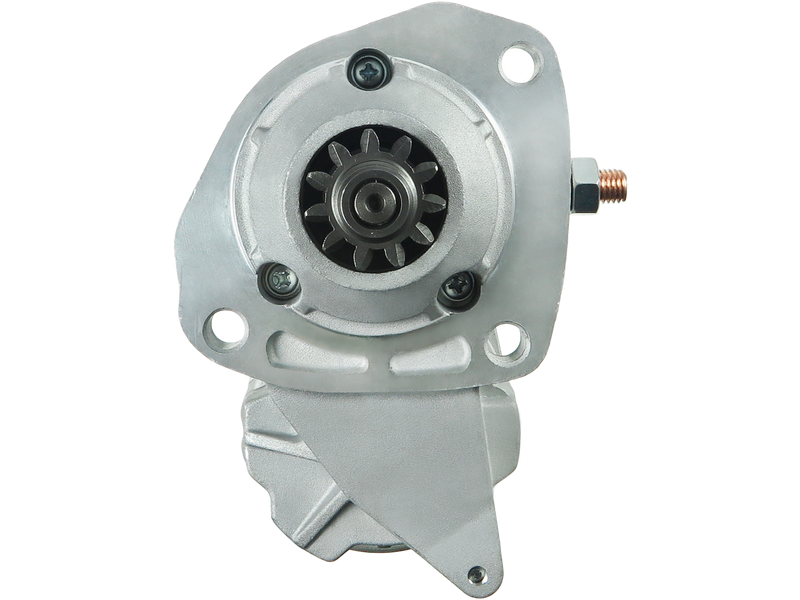

AS-PL S6094 Startmotor — JOHN DEERE

AS-PL S6094 Startmotor — JOHN DEERE

1 747,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ]	12
Effekt [ kW ]	4.00
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	48.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	317.00
O.1 [ mm ]	90.00
O.2 [ mm ]	127.00
O.3 [ mm ]	90.00
C.1 [ mm ]	12.50
C.2 [ mm ]	12.50
C.3 [ mm ]	12.50
Wet clutch	Yes

AS-PLSTANDARD LINE

EAN	5901259469042
Ersätter	DENSO
OE-nummer	2280006530

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6094 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 2280006530

Specifikationer

Spänning [ V ]	12
Effekt [ kW ]	4.00
Startmotors rotation	CW
A-storlek [ mm ]	89.00
B-storlek [ mm ]	48.00
Antal kuggar [ qty. ]	11
Antal kuggar (passar in) [ qty. ]	11
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	317.00
O.1 [ mm ]	90.00
O.2 [ mm ]	127.00
O.3 [ mm ]	90.00
C.1 [ mm ]	12.50
C.2 [ mm ]	12.50
C.3 [ mm ]	12.50
Wet clutch	Yes

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	Bränsle	År
JOHN DEERE	7720	Series 7020		170		2004–2007
JOHN DEERE	7820	Series 7020		185		2004–2007
JOHN DEERE	7920	Series 7020		200		2004–2007
JOHN DEERE	9120	Series 9020		284		2002–
JOHN DEERE	9220	Series 9020		325		2002–
JOHN DEERE	9320	Series 9020		375		2002–
JOHN DEERE	9420	Series 9020		425		2002–
JOHN DEERE	9520	Series 9020		450		2002–
