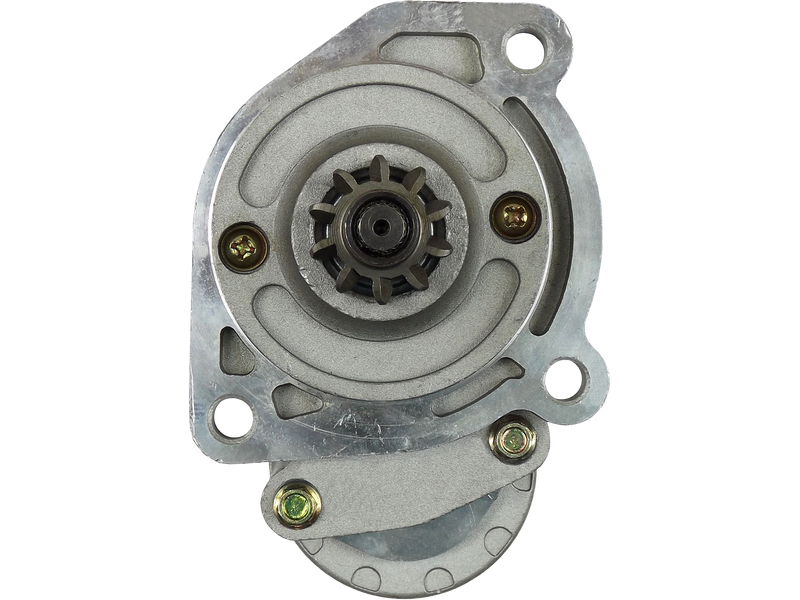

AS-PL S6136 Startmotor — CATERPILLAR, TOWMOTOR

AS-PL S6136 Startmotor — CATERPILLAR, TOWMOTOR

1 061,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Effekt [ kW ] 2.0
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 29.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 232.00
O.1 [ mm ] 89.00
O.2 [ mm ] 127.00
O.3 [ mm ] 89.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5901259493986
ErsätterDENSO

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6136 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.0
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 29.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 232.00
O.1 [ mm ] 89.00
O.2 [ mm ] 127.00
O.3 [ mm ] 89.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CATERPILLAR540SF-22701982–2001
CATERPILLAR600SF-22701982–2001
CATERPILLAR670SF-22701982–2001
CATERPILLART100C140401979–1984
CATERPILLART100CF-22701982–2001
CATERPILLART120CF-22701982–2001
CATERPILLART120C140401979–1984
CATERPILLART30B140401979–1984
CATERPILLART30BF-16301982–2001
CATERPILLART30C140401979–1984
CATERPILLART35BF-16301982–2001
CATERPILLART35B140401979–1984
CATERPILLART35C140401979–1984
CATERPILLART40B140401979–1984
CATERPILLART40BF-16301982–2001
CATERPILLART40C140401979–1984
CATERPILLART45B140401979–1984
CATERPILLART45BF-16301982–2001
CATERPILLART45C140401979–1984
CATERPILLART50BF-16301982–2001
CATERPILLART50B140401979–1984
CATERPILLART50C140401979–1984
CATERPILLART55B140401979–1984
CATERPILLART55BF-16301982–2001
CATERPILLART55C140401979–1984
CATERPILLART60BF-16301982–2001
CATERPILLART60B140401979–1984
CATERPILLART60C140401979–1984
CATERPILLART60CF-22701982–2001
CATERPILLART70CF-22701982–2001
CATERPILLART70C140401979–1984
CATERPILLART80CF-22701982–2001
CATERPILLART80C140401979–1984
CATERPILLART90CF-22701982–2001
CATERPILLART90C140401979–1984
CATERPILLARTC60C140401979–1984
CATERPILLARV30A140401982–1984
CATERPILLARV30C140401979–1984
CATERPILLARV35A140401982–1984
CATERPILLARV35C140401979–1984
CATERPILLARV40C140401979–1984
CATERPILLARV41F-16301979–1984
CATERPILLARV45C140401979–1984
CATERPILLARV50C140401979–1984
CATERPILLARV51F-22701979–1984
CATERPILLARV55BF-22701979–1984
CATERPILLARV55C140401979–1984
CATERPILLARV60BF-22701979–1984
CATERPILLARVC60C140401982–1984
TOWMOTORT100CF-22701982–1986
TOWMOTORT120CF-22701982–1986
TOWMOTORT25F-16301982–1986
TOWMOTORT30B140401979–1986
TOWMOTORT30C140401979–1986
TOWMOTORT35B140401979–1986
TOWMOTORT35C140401979–1986
TOWMOTORT40B140401979–1986
TOWMOTORT40C140401979–1986
TOWMOTORT45B140401979–1986
TOWMOTORT45C140401979–1986
TOWMOTORT50B140401979–1986
TOWMOTORT50C140401979–1986
TOWMOTORT55B140401979–1986
TOWMOTORT55C140401979–1986
TOWMOTORT60B140401979–1986
TOWMOTORT60CF-22701982–1982
TOWMOTORT60C140401981–1986
TOWMOTORT70CF-22701982–1986
TOWMOTORT80CF-22701982–1986
TOWMOTORT90CF-22701982–1986
TOWMOTORTC30F-16301982–1986
TOWMOTORV30C140401979–1986
TOWMOTORV35C140401979–1986
TOWMOTORV40C140401979–1986
TOWMOTORV50C140401979–1986
TOWMOTORV51F-22701981–1986
TOWMOTORV55BF-22701981–1986
TOWMOTORV60BF-22701981–1986
