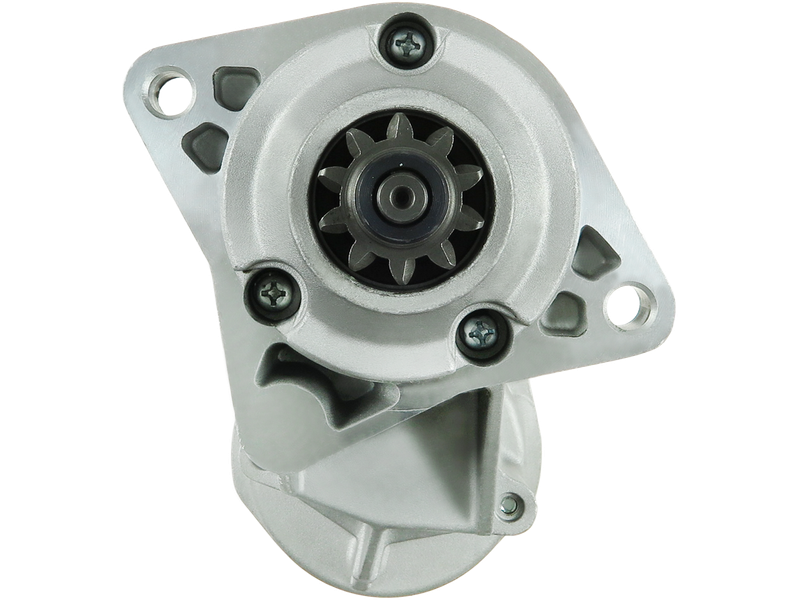

AS-PL S6232S Startmotor — CASE IH, NEW HOLLAND

AS-PL S6232S Startmotor — CASE IH, NEW HOLLAND

1 453,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 296.00
O.1 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
Wet clutch Yes
AS-PLSTANDARD LINE
EAN5902129057031
ErsätterDENSO
OE-nummer428000-1690

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6232S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 428000-1690

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 296.00
O.1 [ mm ] 127.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
Wet clutch Yes

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CASE IH420FPT432T02008–2012
CASE IH420 CTFPT432T02008–2012
CASE IH430FPT432T02005–2012
CASE IH435FPT432T02004–2015
CASE IH440445T/M202005–2012
CASE IH440 CT445T/M202006–2012
CASE IH445FPT432T02005–2012
CASE IH445 CTFPT432T02005–2012
CASE IH450445T/M202005–2012
CASE IH450 CT445T/M202005–2012
CASE IH465445T/M202005–2012
CASE IH580445T/M202001–2007
CASE IH580 Super R445TA/EG02006–2008
CASE IH581445T/M202001–2007
CASE IH590445T/M202001–2007
CASE IH695 STFPT434T/E02006–
NEW HOLLANDB110445T/M202006–2008
NEW HOLLANDB115445T/M202006–2008
NEW HOLLANDB115B445T/M202008–
NEW HOLLANDB95445T/M202006–2008
NEW HOLLANDB95B LR445T/M202008–
NEW HOLLANDC 185FPTF5C02006–2012
NEW HOLLANDC 190445T/M202006–2012
