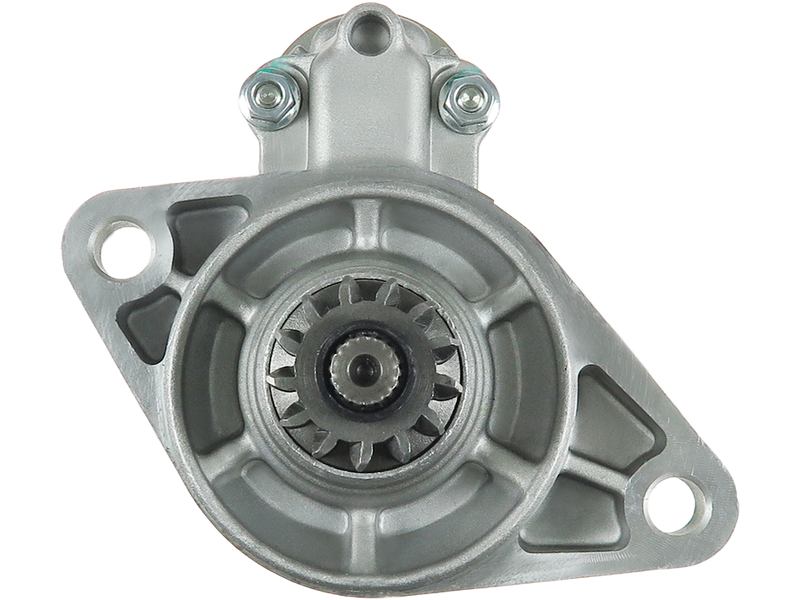

AS-PL S6343S Startmotor — VW, AUDI, SKODA

AS-PL S6343S Startmotor — VW, AUDI, SKODA

1 071,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Effekt [ kW ] 1.50
Startmotors rotation ACW
A-storlek [ mm ] 79.00
B-storlek [ mm ] 42.00
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 221.00
O.1 [ mm ] 119.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129110743
ErsätterDENSO
OE-nummer428000-8320

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6343S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 428000-8320

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.50
Startmotors rotation ACW
A-storlek [ mm ] 79.00
B-storlek [ mm ] 42.00
Antal kuggar [ qty. ] 13
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 221.00
O.1 [ mm ] 119.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
AUDI1.4 TFSIQ3 (8UB, 8UG)CZDB125Petrol2016–2018
AUDI1.4 TSIQ3 (8UB, 8UG)CZEA150Petrol2013–2018
AUDI1.4 TSIQ3 (8UB, 8UG)CZDA150Petrol2013–2018
AUDI1.4 TSIQ3 (8UB, 8UG)CHPB150Petrol2013–2018
AUDI1.8 TFSIA3 Convertible (8V7, 8VE)CJSB180Petrol2013–2016
AUDI1.8 TFSIA3 Convertible (8V7, 8VE)CJSA180Petrol2013–2016
AUDI1.8 TFSIA3 Limousine (8VS, 8VM)CJSB180Petrol2013–2016
AUDI1.8 TFSIA3 Limousine (8VS, 8VM)CJSA180Petrol2013–2016
AUDI1.8 TFSITT (FV3, FVP)CJSB180Petrol2015–2018
AUDI1.8 TFSITT (FV3, FVP)CJSA180Petrol2015–2018
AUDI1.8 TFSITT Roadster (FV9, FVR)CJSB180Petrol2015–2018
AUDI1.8 TFSITT Roadster (FV9, FVR)CJSA180Petrol2015–2018
AUDI1.8 TFSI quattroA3 (8V1, 8VK)CJSB180Petrol2012–2016
AUDI1.8 TFSI quattroA3 Convertible (8V7, 8VE)CJSB180Petrol2014–2016
AUDI1.8 TFSI quattroA3 Limousine (8VS, 8VM)CJSB180Petrol2013–2016
AUDI1.8 TFSI quattroA3 Sportback (8VA, 8VF)CJSB180Petrol2013–2016
AUDI2.0 TDIQ2 (GAB, GAG)DFGA150Diesel2016–
AUDI2.0 TDIQ2 (GAB, GAG)DTTC150Diesel2016–
AUDI2.0 TFSIA3 (8V1, 8VK)CZPB190Petrol2016–2017
AUDI2.0 TFSIA3 Convertible (8V7, 8VE)CZPB190Petrol2016–2020
AUDI2.0 TFSIA3 Limousine (8VS, 8VM)DKZA190Petrol2016–2020
AUDI2.0 TFSIA3 Limousine (8VS, 8VM)CHHB220Petrol2015–2020
AUDI2.0 TFSIA3 Limousine (8VS, 8VM)CZPB190Petrol2016–2020
AUDI2.0 TFSIA3 Limousine (8VS, 8VM)CNTC220Petrol2015–2020
AUDI2.0 TFSIA3 Sportback (8VA, 8VF)DKZA190Petrol2016–2020
AUDI2.0 TFSIA3 Sportback (8VA, 8VF)CZPB190Petrol2016–2020
AUDI2.0 TFSIQ3 (8UB, 8UG)CULB180Petrol2015–2018
AUDI2.0 TFSITT (FV3, FVP)CHHC230Petrol2014–
AUDI2.0 TFSITT Roadster (FV9, FVR)CHHC230Petrol2014–
AUDI2.0 TFSI quattroA3 (8V1, 8VK)CZPB190Petrol2016–2017
AUDI2.0 TFSI quattroA3 Convertible (8V7, 8VE)CZPB190Petrol2016–2020
AUDI2.0 TFSI quattroA3 Convertible (8V7, 8VE)CNTC220Petrol2014–2020
AUDI2.0 TFSI quattroA3 Limousine (8VS, 8VM)CZPB190Petrol2016–2020
AUDI2.0 TFSI quattroA3 Limousine (8VS, 8VM)DKZA190Petrol2016–2020
AUDI2.0 TFSI quattroA3 Sportback (8VA, 8VF)DKZA190Petrol2016–2020
AUDI2.0 TFSI quattroA3 Sportback (8VA, 8VF)CZPB190Petrol2016–2020
AUDI2.0 TFSI quattroQ2 (GAB, GAG)DKZA190Petrol2017–
AUDI2.0 TFSI quattroQ2 (GAB, GAG)CZPB190Petrol2017–
AUDI2.0 TFSI quattroQ3 (8UB, 8UG)CPSA211Petrol2011–2015
AUDI2.0 TFSI quattroQ3 (8UB, 8UG)CULB180Petrol2014–2018
AUDI2.0 TFSI quattroQ3 (8UB, 8UG)CULC220Petrol2014–2018
AUDI2.0 TFSI quattroQ3 (8UB, 8UG)CCZC170Petrol2011–2015
AUDI2.0 TFSI quattroTT (FV3, FVP)CHHC230Petrol2014–
AUDI2.0 TFSI quattroTT Roadster (FV9, FVR)CHHC230Petrol2014–
AUDI2.0 TTS TFSI quattroTT Roadster (FV9, FVR)CJXG310Petrol2014–
AUDI2.0 TTS quattroTT (FV3, FVP)CYFB292Petrol2015–
AUDI2.0 TTS quattroTT (FV3, FVP)DNUF306Petrol2018–
AUDI2.0 TTS quattroTT (FV3, FVP)CJXF286Petrol2015–
AUDI2.0 TTS quattroTT (FV3, FVP)CJXG310Petrol2014–
AUDI2.0 TTS quattroTT (FV3, FVP)DLRA292Petrol2015–
AUDI2.0 TTS quattroTT Roadster (FV9, FVR)CJXF286Petrol2015–
AUDI2.0 TTS quattroTT Roadster (FV9, FVR)DNUF306Petrol2018–
AUDI2.5 RS quattroQ3 (F3B)DAZA400Petrol2019–
AUDI2.5 RS quattroQ3 (F3B)DNWA400Petrol2019–
AUDI2.5 RS quattroQ3 Sportback (F3N)DAZA400Petrol2019–
AUDI2.5 RS quattroQ3 Sportback (F3N)DNWA400Petrol2019–
AUDI2.5 RS quattroTT (FV3, FVP)DNWA400Petrol2016–
AUDI2.5 RS quattroTT (FV3, FVP)DAZA400Petrol2016–
AUDI2.5 RS quattroTT Roadster (FV9, FVR)DNWA400Petrol2016–
AUDI2.5 RS quattroTT Roadster (FV9, FVR)DAZA400Petrol2016–
AUDI30 TDIQ2 (GAB, GAG)DGTE115Diesel2018–2020
AUDI30 g-tronA3 Sportback (8VA, 8VF)DHFA131Petrol/Compressed Natural Gas (CNG)2018–2020
AUDI35 TDIQ2 (GAB, GAG)DFGA150Diesel2016–
AUDI35 TDIQ2 (GAB, GAG)DTTC150Diesel2016–
AUDI35 TFSIQ2 (GAB, GAG)DXDB150Petrol2018–
AUDI35 TFSIQ2 (GAB, GAG)DPCA150Petrol2018–
AUDI35 TFSIQ2 (GAB, GAG)DADA150Petrol2018–
AUDI35 TFSIQ3 (F3B)DPCA150Petrol2018–
AUDI35 TFSIQ3 (F3B)DADA150Petrol2018–
AUDI35 TFSIQ3 (F3B)DXDB150Petrol2018–
AUDI35 TFSIQ3 Sportback (F3N)DPCA150Petrol2019–
AUDI35 TFSIQ3 Sportback (F3N)DXDB150Petrol2019–
AUDI35 TFSI Mild HybridQ3 (F3B)DFYA150Petrol/Electric2019–
AUDI35 TFSI Mild HybridQ3 Sportback (F3N)DFYA150Petrol/Electric2019–
AUDI40 TFSIA1 Sportback (GBA)DKZC200Petrol2018–
AUDI40 TFSIA1 Sportback (GBA)CZPC200Petrol2018–
AUDI40 TFSIA1 Sportback (GBA)DNND207Petrol2021–
AUDI40 TFSIA3 Convertible (8V7, 8VE)DKZA190Petrol2018–2020
AUDI40 TFSIA3 Limousine (8VS, 8VM)DKZA190Petrol2018–2020
AUDI40 TFSIA3 Sportback (8VA, 8VF)DKZA190Petrol2018–2020
AUDI40 TFSITT (FV3, FVP)DNNB197Petrol2018–
AUDI40 TFSITT (FV3, FVP)DKZB197Petrol2018–
AUDI40 TFSITT Roadster (FV9, FVR)DKZB197Petrol2018–
AUDI40 TFSITT Roadster (FV9, FVR)DNNB197Petrol2018–
AUDI40 TFSI quattroA3 Convertible (8V7, 8VE)DKZA190Petrol2018–2020
AUDI40 TFSI quattroA3 Limousine (8VS, 8VM)DKZA190Petrol2018–2020
AUDI40 TFSI quattroA3 Limousine (8YS, 8YM)DNNA190Petrol2021–
AUDI40 TFSI quattroA3 Sportback (8VA, 8VF)DKZA190Petrol2018–2020
AUDI40 TFSI quattroA3 Sportback (8YA, 8YF)DNNA190Petrol2021–
AUDI40 TFSI quattroQ2 (GAB, GAG)DNNA190Petrol2018–
AUDI40 TFSI quattroQ2 (GAB, GAG)DKZA190Petrol2018–
AUDI40 TFSI quattroQ3 (F3B)DNNA190Petrol2018–
AUDI40 TFSI quattroQ3 (F3B)DKTC190Petrol2018–
AUDI40 TFSI quattroQ3 Sportback (F3N)DNNA190Petrol2019–
AUDI40 TFSI quattroQ3 Sportback (F3N)DKTC190Petrol2019–
AUDI45 TFSITT (FV3, FVP)DKTB245Petrol2018–
AUDI45 TFSITT (FV3, FVP)DNPA245Petrol2018–
AUDI45 TFSITT Roadster (FV9, FVR)DNPA245Petrol2018–
AUDI45 TFSITT Roadster (FV9, FVR)DKTB245Petrol2018–
AUDI45 TFSI quattroQ3 (F3B)DKTA230Petrol2018–
AUDI45 TFSI quattroQ3 Sportback (F3N)DKTA230Petrol2019–
AUDI45 TFSI quattroTT (FV3, FVP)DKTB245Petrol2018–
AUDI45 TFSI quattroTT (FV3, FVP)DNPA245Petrol2018–
AUDI45 TFSI quattroTT Roadster (FV9, FVR)DNPA245Petrol2018–
AUDI45 TFSI quattroTT Roadster (FV9, FVR)DKTB245Petrol2018–
AUDIRS 2.5 quattroQ3 (8UB, 8UG)CZGA340Petrol2013–2018
AUDIRS 2.5 quattroQ3 (8UB, 8UG)CTSA310Petrol2013–2018
AUDIRS performance 2.5 quattroQ3 (8UB, 8UG)CZGB367Petrol2015–2018
AUDIRS3 quattroA3 Limousine (8VS, 8VM)DAZA400Petrol2017–2020
AUDIRS3 quattroA3 Limousine (8VS, 8VM)DNWA400Petrol2017–2020
AUDIRS3 quattroA3 Sportback (8VA, 8VF)DAZA400Petrol2017–2020
AUDIRS3 quattroA3 Sportback (8VA, 8VF)CZGB367Petrol2015–2016
AUDIRS3 quattroA3 Sportback (8VA, 8VF)DNWA400Petrol2017–2020
AUDIS3 quattroA3 (8V1, 8VK)DJHB290Petrol2016–2017
AUDIS3 quattroA3 (8V1, 8VK)CJXC300Petrol2012–2016
AUDIS3 quattroA3 (8V1, 8VK)CJXD290Petrol2016–2017
AUDIS3 quattroA3 (8V1, 8VK)CJXB280Petrol2013–2014
AUDIS3 quattroA3 (8V1, 8VK)DJHA310Petrol2016–2017
AUDIS3 quattroA3 (8V1, 8VK)CJXF286Petrol2014–2016
AUDIS3 quattroA3 (8V1, 8VK)CJXG310Petrol2016–2017
AUDIS3 quattroA3 Convertible (8V7, 8VE)DNUE300Petrol2014–2020
AUDIS3 quattroA3 Convertible (8V7, 8VE)DJHA310Petrol2016–2020
AUDIS3 quattroA3 Convertible (8V7, 8VE)CJXC300Petrol2014–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)DNUE300Petrol2013–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXB280Petrol2013–2014
AUDIS3 quattroA3 Limousine (8VS, 8VM)DJJA292Petrol2014–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXG310Petrol2016–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXF286Petrol2014–2016
AUDIS3 quattroA3 Limousine (8VS, 8VM)CJXC300Petrol2013–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)CYFB292Petrol2014–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)DLRA292Petrol2014–2020
AUDIS3 quattroA3 Limousine (8VS, 8VM)DJHA310Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXG310Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)DJHB290Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)DNUE300Petrol2012–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXD290Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXB280Petrol2013–2016
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXC300Petrol2012–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)DJHA310Petrol2016–2020
AUDIS3 quattroA3 Sportback (8VA, 8VF)CJXF286Petrol2014–2016
AUDISQ2 TFSI quattroQ2 (GAB, GAG)DNUE300Petrol2018–
AUDISQ2 TFSI quattroQ2 (GAB, GAG)DNFC300Petrol2018–
CUPRA1.5 TSIFORMENTOR (KM7, KMP)DPCA150Petrol2020–
CUPRA2.0 TSIFORMENTOR (KM7, KMP)DNPA245Petrol2021–
CUPRA2.0 TSIFORMENTOR (KM7, KMP)CZPB190Petrol2021–
CUPRA2.0 TSILEON (KL1, KU1, KUG)DNFC300Petrol2021–
CUPRA2.0 TSILEON (KL1, KU1, KUG)DNPA245Petrol2021–
CUPRA2.0 TSILEON Sportstourer (KL8, KU8, KUD)DNPA245Petrol2021–
CUPRA2.0 TSI 4DriveATECA (KH7, KHP, KBP)DNFC300Petrol2018–
CUPRA2.0 TSI 4DriveATECA (KH7, KHP, KBP)DNNA190Petrol2023–
CUPRA2.0 TSI 4DriveATECA (KH7, KHP, KBP)DNUE300Petrol2018–
CUPRA2.0 TSI 4DriveFORMENTOR (KM7, KMP)DNNA190Petrol2020–
CUPRA2.0 TSI 4DriveFORMENTOR (KM7, KMP)DNFB310Petrol2020–
CUPRA2.0 TSI 4DriveLEON Sportstourer (KL8, KU8, KUD)DNFB310Petrol2021–
CUPRA2.5 VZ5 4DriveFORMENTOR (KM7, KMP)DNWB390Petrol2021–
SEAT1.0 TSIARONA (KJ7, KJP)CHZJ115Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DKRF115Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DKLA95Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DXUA115Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DUSB95Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DKJA115Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)CHZL95Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DUSA115Petrol2017–
SEAT1.0 TSIARONA (KJ7, KJP)DLAC95Petrol2017–
SEAT1.0 TSIIBIZA V (KJ1, KJG)DKJA115Petrol2017–
SEAT1.0 TSIIBIZA V (KJ1, KJG)DUSA115Petrol2017–
SEAT1.0 TSIIBIZA V (KJ1, KJG)CHZJ115Petrol2017–
SEAT1.0 TSIIBIZA V (KJ1, KJG)DKRF115Petrol2017–
SEAT1.0 TSILEON SC (5F5)CHZD115Petrol2015–2018
SEAT1.0 TSILEON ST (5F8)DKRF115Petrol2015–2020
SEAT1.0 TSILEON ST (5F8)CHZD115Petrol2015–2020
SEAT1.2 TSILEON Hatchback Van (5F1)CYVB110Petrol2014–2018
SEAT1.2 TSILEON ST Estate Van (5F8)CYVB110Petrol2014–2018
SEAT1.4 TGILEON (5F1)CPWA110Petrol/Compressed Natural Gas (CNG)2013–2018
SEAT1.4 TGILEON ST (5F8)CPWA110Petrol/Compressed Natural Gas (CNG)2013–2018
SEAT1.4 TSIALHAMBRA (710, 711)DJKA150Petrol2015–2022
SEAT1.4 TSIALHAMBRA (710, 711)CNWB150Petrol2010–2015
SEAT1.4 TSIALHAMBRA (710, 711)CZDA150Petrol2015–2022
SEAT1.4 TSIALHAMBRA (710, 711)CAVA150Petrol2010–2015
SEAT1.4 TSIALHAMBRA (710, 711)CTHA150Petrol2010–2015
SEAT1.4 TSIATECA (KH7, KHP)DJKA150Petrol2016–
SEAT1.4 TSIATECA (KH7, KHP)CZEA150Petrol2016–
SEAT1.4 TSITOLEDO IV (KG3)CZCA125Petrol2015–2019
SEAT1.4 TSI 4DriveATECA (KH7, KHP)CZEA150Petrol2016–
SEAT1.5 TSI 4DriveATECA (KH7, KHP)DPCA150Petrol2018–
SEAT1.5 TSI 4DriveATECA (KH7, KHP)DADA150Petrol2018–
SEAT1.5 TSI ACTTARRACO (KN2)DXDB150Petrol2018–
SEAT1.5 TSI ACTTARRACO (KN2)DPCA150Petrol2018–
SEAT1.5 TSI ACTTARRACO (KN2)DADA150Petrol2018–
SEAT1.6 TDI 4DriveLEON ST (5F8)CXXB110Diesel2014–2020
SEAT1.6 TDI 4DriveLEON ST (5F8)CLHA105Diesel2014–2020
SEAT1.8 TFSILEON Hatchback Van (5F1)CJSA180Petrol2013–2018
SEAT1.8 TFSILEON ST Estate Van (5F8)CJSA180Petrol2013–2018
SEAT1.8 TSILEON (5F1)CJSA180Petrol2013–2018
SEAT1.8 TSILEON SC (5F5)CJSA180Petrol2013–2018
SEAT1.8 TSILEON ST (5F8)CJSA180Petrol2013–2018
SEAT1.8 TSI 4DriveLEON ST (5F8)CJSB180Petrol2014–2018
SEAT1.8 TSI 4DriveLEON ST (5F8)CJSA180Petrol2014–2018
SEAT2.0 CupraLEON (5F1)CJXA280Petrol2013–2020
SEAT2.0 CupraLEON (5F1)DNUC290Petrol2015–2020

Visar 200 av 528 fordon

Reviews

There are no reviews yet.

Be the first to review “AS-PL S6343S Startmotor — VW, AUDI, SKODA”

Your email address will not be published. Required fields are marked *

Related products
