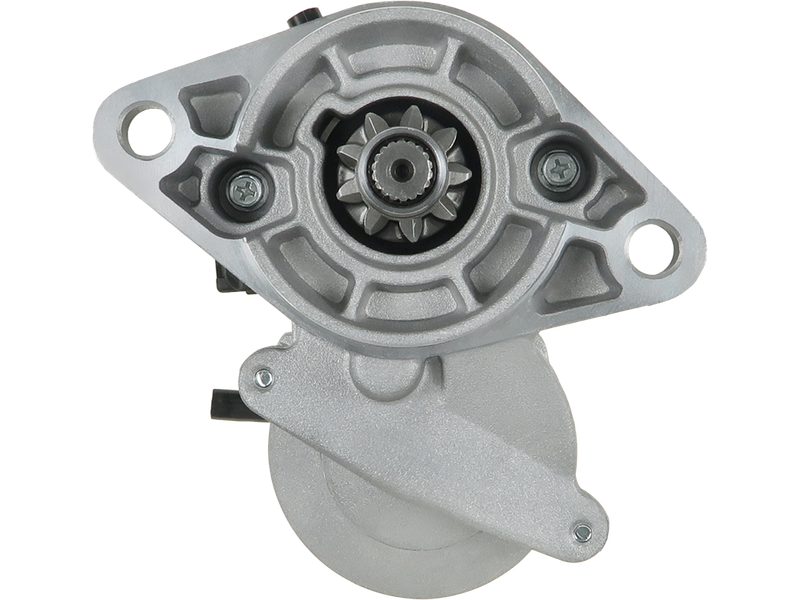

AS-PL S6524S Startmotor — TOYOTA

AS-PL S6524S Startmotor — TOYOTA

1 087,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 74.00
B-storlek [ mm ] 20.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 190.00
O.1 [ mm ] 115.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129234661
ErsätterDENSO
OE-nummer438000-1470

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6524S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 438000-1470

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.40
Startmotors rotation CW
A-storlek [ mm ] 74.00
B-storlek [ mm ] 20.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 190.00
O.1 [ mm ] 115.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
TOYOTA15 2.28FGCU4Y02012–2019
TOYOTA18 2.28FGCU4Y02012–2019
TOYOTA2.4 4WD (RN50, RN55, RN60)4 RUNNER I (_N5_, _N6_, _N7_)22REC112Petrol1987–1989
TOYOTA20 2.28FGCSU4Y02012–2019
TOYOTA35N 3.78FG1FS02014–2019
TOYOTA35U 3.78FG1FS02014–2019
TOYOTA35U 3.78FGC1FS02014–2019
TOYOTA40N 3.78FG1FS02014–2019
TOYOTA40U 3.78FG1FS02014–2019
TOYOTA45N 3.78FG1FS02014–2019
TOYOTA45U 3.78FG1FS02014–2019
TOYOTA45U 3.78FGC1FS02014–2019
TOYOTA50N 3.78FG1FS02014–2019
TOYOTA50U 3.78FG1FS02014–2019
TOYOTA55U 3.78FGC1FS02014–2019
TOYOTA60U 3.78FG1FS02014–2019
TOYOTA60U 3.78FGC1FS02014–2019
TOYOTA70U 3.78FG1FS02014–2019
TOYOTA70U 3.78FGC1FS02014–2019
TOYOTA80U 3.78FG1FS02014–2019
