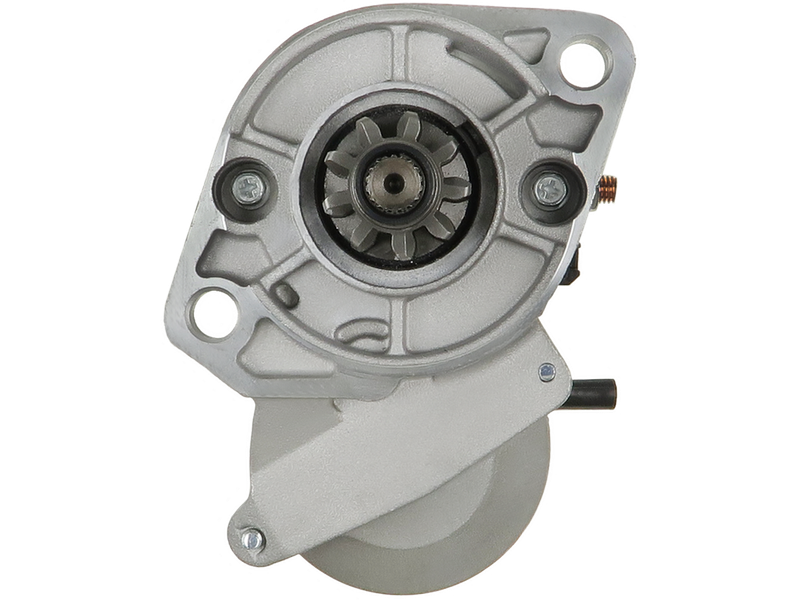

AS-PL S6527S Startmotor — KUBOTA

AS-PL S6527S Startmotor — KUBOTA

1 020,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Effekt [ kW ] 1.20
Startmotors rotation CW
A-storlek [ mm ] 82.50
B-storlek [ mm ] 25.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 180.00
O.1 [ mm ] 105.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
AS-PLSTANDARD LINE
EAN5902129220800
ErsätterDENSO

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6527S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.20
Startmotors rotation CW
A-storlek [ mm ] 82.50
B-storlek [ mm ] 25.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 180.00
O.1 [ mm ] 105.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
KUBOTAEngineD146201989–1999
KUBOTAKJS130DD17030–
KUBOTAKJS130DXD1703E0–
KUBOTAL2250DTD1302DI01985–1990
KUBOTAL2500DTD1403AE01998–2000
KUBOTAL2500FD1403AE01998–2000
KUBOTAL2550DTD1402DIA01985–1991
KUBOTAL2550DTGSTD1402DIA01985–1991
KUBOTAL2550FD1402DIA01985–1991
KUBOTAL2550GSTD1402DIA01985–1991
KUBOTAL2650DTD1402DIAE01990–1996
KUBOTAL2650DTGSTD1462DI01990–1996
KUBOTAL2650FD1402DIAE01991–1993
KUBOTAL2650GSTD1402DIAE01991–1993
KUBOTAL2800DTFD1403ME2A02005–2009
KUBOTAL2800DTRD1403ME2A02005–2009
KUBOTAL2800FFD1403ME2A02005–2009
KUBOTAL2800FRD1403ME2A02005–2009
KUBOTAL2800HSTD1403ME2A02005–2009
KUBOTAL2900DTD1503LA01994–1998
KUBOTAL2900DTGSTD1503LA01994–1998
KUBOTAL2900FD1503LA01994–1998
KUBOTAL2900GSTD1503LA01994–1998
KUBOTAL2950DTD1462DIAE01990–1993
KUBOTAL2950DTGSTD1462DIAE01990–1993
KUBOTAL2950FD1462DIAE01990–1993
KUBOTAL2950GSTD1462DIAE01991–1993
KUBOTAL3010DTD1503LAN01998–2002
KUBOTAL3010FD1503LAN01998–2002
KUBOTAL3010GSTD1503LAN01998–2002
KUBOTAL3010HSTD1503LAN01998–2002
KUBOTAL3130DTFD1503MAE-GST02003–2007
KUBOTAL3130DTRD1503MAE-GST02003–2007
KUBOTAL3130FFD1503MAE-GST02003–2007
KUBOTAL3130FRD1503MAE-GST02003–2007
KUBOTAL3130GSTFD1503MAE-GST02003–2007
KUBOTAL3130GSTRD1503MAE-GST02003–2007
KUBOTAL3130HSTCD1503MAE-GST02003–2007
KUBOTAL3130HSTFD1503MAE-GST02003–2007
KUBOTAL3130HSTRD1503MAE-GST02003–2007
KUBOTAL3240FD1703ME202007–2008
KUBOTAL3240GSTD1703ME202007–2008
KUBOTAL3240HSTD1703ME202007–2008
KUBOTAL3240HSTCD1703ME202007–2008
KUBOTAL3300DTD1703A01994–1998
KUBOTAL3300DTGSTD1703A01994–1998
KUBOTAL3300FD1703A01994–1998
KUBOTAL3300GSTD1703A01994–1998
KUBOTAL3400DTFD1703MAE2A02005–2009
KUBOTAL3400DTRD1703MAE2A02005–2009
KUBOTAL3400FFD1703MAE2A02005–2009
KUBOTAL3400FRD1703MAE2A02005–2009
KUBOTAL3400HSTD1703MAE2A02005–2009
KUBOTAL3410DTD1703A01998–2002
KUBOTAL3410GSTD1703A01998–2002
KUBOTAL3410HSTD1703A01998–2002
KUBOTAL3430DTFD1703MAE02003–2007
KUBOTAL3430DTRD1703MAE02003–2007
KUBOTAL3430GSTFD1703MAE02003–2007
KUBOTAL3430GSTRD1703MAE02003–2007
KUBOTAL3430HSTCD1703MAE02003–2007
KUBOTAL3430HSTFD1703MAE02003–2007
KUBOTAL3430HSTRD1703MAE02003–2007
KUBOTAL35D146201999–2004
KUBOTAL35TLD1703TLB01999–2004
KUBOTAL35TLBD1703TLB01999–2004
