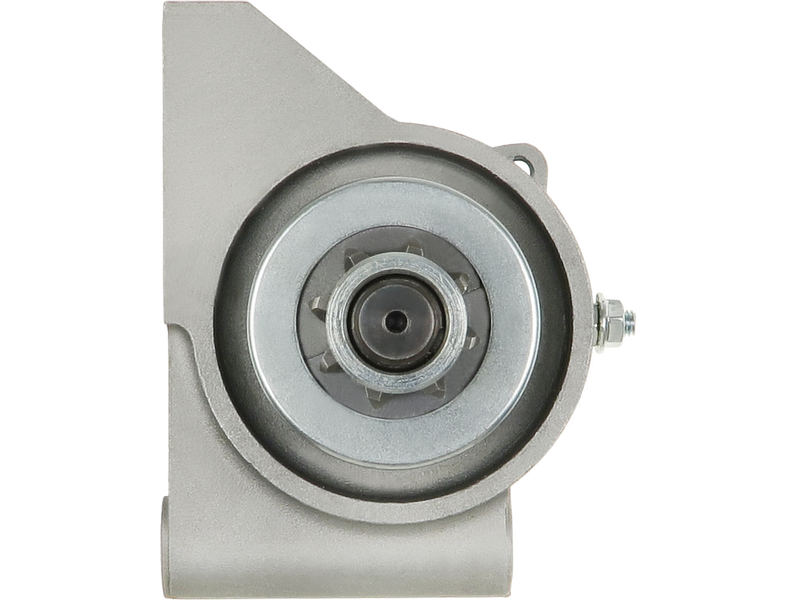

AS-PL S6581S Startmotor — SKI-DOO, LYNX

AS-PL S6581S Startmotor — SKI-DOO, LYNX

605,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 12
Startmotors rotation CW
B-storlek [ mm ] 26.00
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 228.00
O.1 [ mm ] 153.00
O.2 [ mm ] 83.00
O.3 [ mm ] 13,6.00
C.1 [ mm ] 9.00
C.2 [ mm ] 7.50
C.3 [ mm ] 9.50
AS-PLSTANDARD LINE
EAN5902129223528
ErsätterDENSO

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6581S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

Specifikationer

Spänning [ V ] 12
Startmotors rotation CW
B-storlek [ mm ] 26.00
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 228.00
O.1 [ mm ] 153.00
O.2 [ mm ] 83.00
O.3 [ mm ] 13,6.00
C.1 [ mm ] 9.00
C.2 [ mm ] 7.50
C.3 [ mm ] 9.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
LYNXAdventure GT 600594cc02006–2008
LYNXAdventure LX 600594cc02006–2006
LYNXRanger 600597cc02003–2006
LYNXRanger LCE02002–2003
LYNXRave XT N-Duro 550553cc02006–2006
LYNXRave XT N-Duro 600597cc02006–2007
LYNXRave XT N-Duro 800799cc02006–2007
LYNXSport Touring 600597cc02003–2005
LYNXSport Touring 80002003–2004
LYNXST-600597cc02003–2006
LYNXSuper Touring 50002002–2002
LYNXSuper Touring 600597cc02002–2003
LYNXSuper Touring 70002002–2002
LYNXSuper Touring 80002002–2002
LYNXXtrim SC 600594cc02008–2008
LYNXYeti 600594cc02008–2008
LYNXYeti 600HO TUV SDI594cc02006–2008
SKI-DOOExpedition 600 HO SDI597cc02005–2005
SKI-DOOExpedition TUV-600 SDI597cc02006–2008
SKI-DOOGrand Touring 500503cc02002–2003
SKI-DOOGrand Touring 500 Sport503cc02003–2003
SKI-DOOGrand Touring 600597cc02002–2003
SKI-DOOGrand Touring 600 SE597cc02003–2003
SKI-DOOGrand Touring 600 Sport597cc02003–2003
SKI-DOOGrand Touring 700698cc02002–2003
SKI-DOOGrand Touring 700 SE698cc02003–2003
SKI-DOOGrand Touring 700 Sport698cc02003–2003
SKI-DOOGrand Touring 800796cc02002–2002
SKI-DOOGrand Touring 800 SE SDI796cc02003–2003
SKI-DOOGSX 500F494cc02005–2006
SKI-DOOGSX 500SS494cc02004–2008
SKI-DOOGSX 600597cc02004–2005
SKI-DOOGSX 600 Limited597cc02006–2009
SKI-DOOGSX 600 Sport597cc02006–2007
SKI-DOOGSX 800796cc02004–2008
SKI-DOOGTX 500F494cc02005–2005
SKI-DOOGTX 500SS494cc02005–2009
SKI-DOOGTX 600597cc02005–2009
SKI-DOOGTX 800796cc02005–2007
SKI-DOOLegend 500 Sport494cc02002–2003
SKI-DOOLegend 500 SS494cc02004–2004
SKI-DOOLegend 600597cc02002–2002
SKI-DOOLegend 600 HO SDI597cc02004–2004
SKI-DOOLegend 600 SE597cc02003–2003
SKI-DOOLegend 600 Sport597cc02003–2003
SKI-DOOLegend 700698cc02004–2004
SKI-DOOLegend 700 GS698cc02002–2002
SKI-DOOLegend 700 SE698cc02003–2003
SKI-DOOLegend 700 Sport698cc02002–2003
SKI-DOOLegend 800 SDI796cc02004–2004
SKI-DOOLegend 800 SE796cc02002–2002
SKI-DOOLegend 800 SE SDI796cc02003–2003
SKI-DOOMach Z 1000 SDI1004cc02005–2007
SKI-DOOMach Z X1004cc02007–2007
SKI-DOOMX Z 10001004cc02007–2007
SKI-DOOMX Z 500 Adrenaline494cc02003–2003
SKI-DOOMX Z 500 Trail494cc02003–2003
SKI-DOOMX Z 500SS Adrenaline494cc02004–2007
SKI-DOOMX Z 500SS Trail494cc02004–2009
SKI-DOOMX Z 550 Fan553cc02004–2006
SKI-DOOMX Z 600 Adrenaline HO594cc02003–2010
SKI-DOOMX Z 600 Adrenaline HO SDI594cc02005–2008
SKI-DOOMX Z 600 Blizzard HO594cc02007–2007
SKI-DOOMX Z 600 Renegade HO594cc02003–2005
SKI-DOOMX Z 600 Renegade HO SDI594cc02005–2007
SKI-DOOMX Z 600 Renegade X594cc02004–2009
SKI-DOOMX Z 600 Sport HO594cc02003–2003
SKI-DOOMX Z 600 Trail597cc02003–2003
SKI-DOOMX Z 600 Trail HO597cc02004–2005
SKI-DOOMX Z 600 X HO594cc02001–2011
SKI-DOOMX Z 700 Adrenaline698cc02003–2003
SKI-DOOMX Z 800 Adrenaline HO & X799cc02003–2007
SKI-DOOMX Z 800 Blizzard HO799cc02007–2007
SKI-DOOMX Z 800 Renegade799cc02003–2003
SKI-DOOMX Z 800 Renegade HO & X799cc02004–2007
SKI-DOOMX Z 800 Sport799cc02003–2003
SKI-DOOMX Z 800 X799cc02001–2003
SKI-DOOMX Z REV 007 Bond Special ED594cc02003–2003
SKI-DOOMX Z X 600 HO SDI597cc02006–2007
SKI-DOOMX ZX 800 HO SDI799cc02007–2007
SKI-DOOScandic 600 SUV597cc02003–2008
SKI-DOOScandic Wide Track 600597cc02001–2008
SKI-DOOSummit 1000 Highmark1004cc02005–2007
SKI-DOOSummit 600 Adrenaline HO597cc02007–2008
SKI-DOOSummit 800799cc02005–2006
