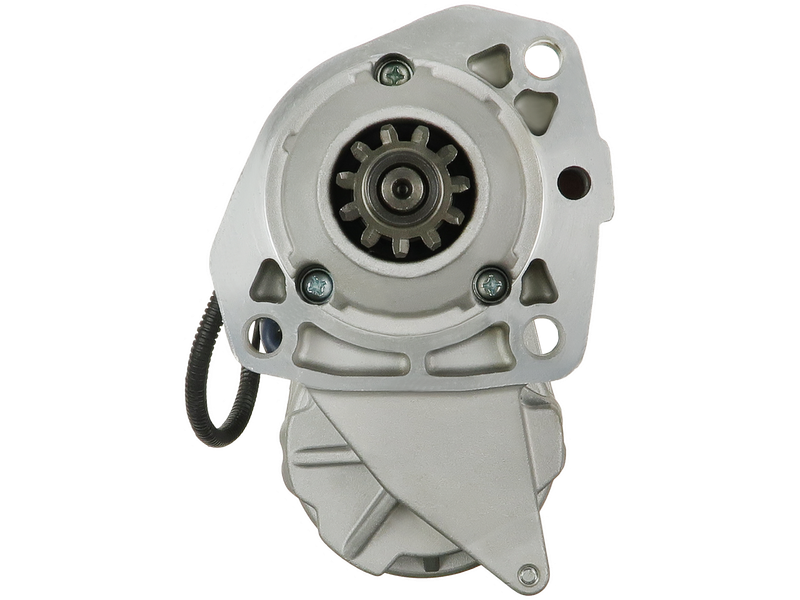

AS-PL S6593S Startmotor — JOHN DEERE

AS-PL S6593S Startmotor — JOHN DEERE

1 839,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 24
Effekt [ kW ] 7.80
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 320.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] 12.00
AS-PLSTANDARD LINE
EAN5902129229599
ErsätterDENSO
OE-nummer228000-9150

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6593S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 228000-9150

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 7.80
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 47.00
Antal kuggar [ qty. ] 11
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 320.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 12.00
C.2 [ mm ] 12.00
C.3 [ mm ] 12.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
JOHN DEERE624KR0–
JOHN DEERE640L0–
JOHN DEERE643L0–
JOHN DEERE643L-II0–
JOHN DEERE644K0–
JOHN DEERE644K Hybrid0–
JOHN DEERE648L0–
JOHN DEERE648L-II0–
JOHN DEERE655K0–
JOHN DEERE670G0–
JOHN DEERE670GP0–
JOHN DEERE672G0–
JOHN DEERE672GP0–
JOHN DEERE724K0–
JOHN DEERE744K0–
JOHN DEERE744K-II0–
JOHN DEERE748L0–
JOHN DEERE748L-II0–
JOHN DEERE755K0–
JOHN DEERE770C0–
JOHN DEERE770C-II0–
JOHN DEERE770CH0–
JOHN DEERE770CH-II0–
JOHN DEERE770D0–
JOHN DEERE770G0–
JOHN DEERE770GP0–
JOHN DEERE772CH0–
JOHN DEERE772CH-II0–
JOHN DEERE772D0–
JOHN DEERE772G0–
JOHN DEERE772GP0–
JOHN DEERE824K0–
JOHN DEERE824K-II0–
JOHN DEERE870D0–
JOHN DEERE870G0–
JOHN DEERE870GP0–
JOHN DEERE872D0–
JOHN DEERE872G0–
JOHN DEERE872GP0–
JOHN DEEREE330LC0–
JOHN DEEREE3600–
JOHN DEEREE4000–
