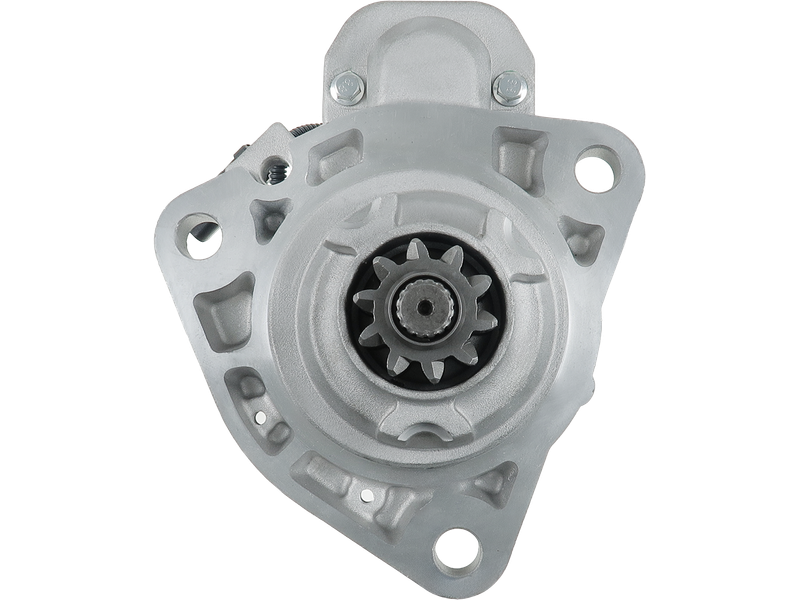

AS-PL S6646S Startmotor — CATERPILLAR, PRENTICE

AS-PL S6646S Startmotor — CATERPILLAR, PRENTICE

1 802,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: DENSO

Spänning [ V ] 24
Effekt [ kW ] 7.80
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 340.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
AS-PLSTANDARD LINE
EAN5902129244080
ErsätterDENSO
OE-nummer438000-0100

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S6646S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från DENSO.

OE-nummer: 438000-0100

Specifikationer

Spänning [ V ] 24
Effekt [ kW ] 7.80
Startmotors rotation CW
A-storlek [ mm ] 92.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 340.00
O.1 [ mm ] 127.00
O.2 [ mm ] 127.00
O.3 [ mm ] 127.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CATERPILLAR2570C0–
CATERPILLAR2570D0–
CATERPILLAR2670C0–
CATERPILLAR2670D0–
CATERPILLAR5270–
CATERPILLAR563C0–
CATERPILLAR563D0–
CATERPILLAR573C0–
CATERPILLAR573D0–
CATERPILLAR9530–
CATERPILLAR953D0–
CATERPILLAR953K0–
CATERPILLAR96301994–1995
CATERPILLAR963D0–
CATERPILLAR963K0–
CATERPILLARD50–
CATERPILLARD5R0–
CATERPILLARD5R20–
CATERPILLARD6K02006–2014
CATERPILLARD6N0–
CATERPILLARLGP0–
CATERPILLARXL0–
PRENTICEXL0–
