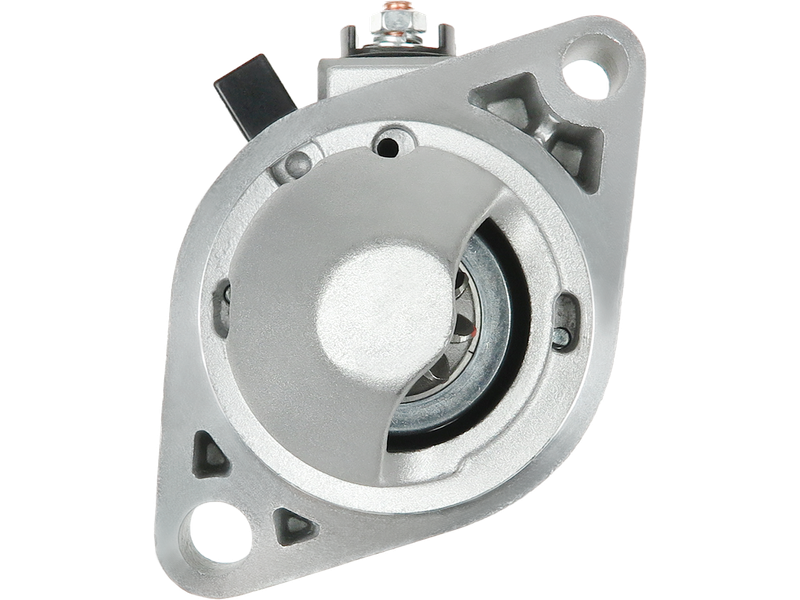

AS-PL S9039 Startmotor — HONDA, ACURA

AS-PL S9039 Startmotor — HONDA, ACURA

1 378,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MITSUBA

Spänning [ V ] 12
Effekt [ kW ] 1.60
Startmotors rotation CW
A-storlek [ mm ] 75.00
B-storlek [ mm ] 34.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 236.00
O.1 [ mm ] 115.00
C.1 [ mm ] 11.00
C.2 [ mm ] 13.00
AS-PLSTANDARD LINE
EAN5901259424164
ErsätterMITSUBA
OE-nummerSM612-09

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9039 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBA.

OE-nummer: SM612-09

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.60
Startmotors rotation CW
A-storlek [ mm ] 75.00
B-storlek [ mm ] 34.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 236.00
O.1 [ mm ] 115.00
C.1 [ mm ] 11.00
C.2 [ mm ] 13.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ACURA2.4 VtecTSX (CL_)K24A2200Petrol2003–2008
HONDA2.0 (CL7)ACCORD VII (CL, CN)K20A6155Petrol2003–2008
HONDA2.0 (CL7)ACCORD VII (CL, CN)K20Z2155Petrol2003–2008
HONDA2.0 (CM1)ACCORD VII Tourer (CM, CN)K20Z2155Petrol2003–2008
HONDA2.0 (CM1)ACCORD VII Tourer (CM, CN)K20A6155Petrol2003–2008
HONDA2.4ELEMENT (YH)K24A4162Petrol2002–2005
HONDA2.4 (CL9)ACCORD VII (CL, CN)K24A3190Petrol2003–2008
HONDA2.4 (CL9)ACCORD VII (CL, CN)K24A190Petrol2003–2008
HONDA2.4 (CM2)ACCORD VII Tourer (CM, CN)K24A3190Petrol2003–2008
HONDA2.4 4WDELEMENT (YH)K24A8169Petrol2006–2011
HONDA2.4 4x4ELEMENT (YH)K24A4162Petrol2002–2005
HONDA2.4 Vtec 4x4 (YH2)ELEMENT (YH)K24A6160Petrol2002–2011
