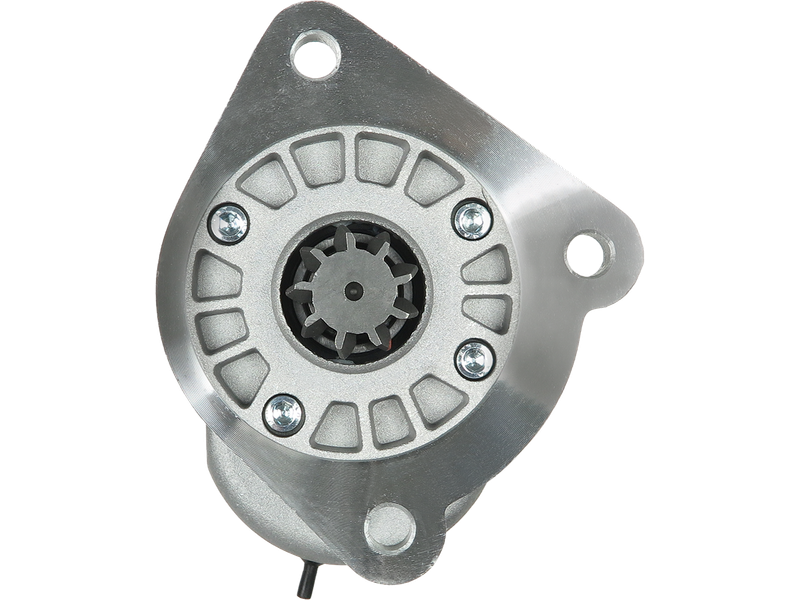

AS-PL S9043 Startmotor — RENAULT AGRICULTURE, FENDT

AS-PL S9043 Startmotor — RENAULT AGRICULTURE, FENDT

1 109,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MAGNETON

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 22.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 235.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5901259437621
ErsätterMAGNETON
OE-nummer9142801

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9043 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MAGNETON.

OE-nummer: 9142801

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 22.00
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 235.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
FENDT1 DFarmerD325-3341971–
FENDT102, 102 SFarmerD325-339-411972–
FENDT103 SFarmerD225-3481972–
FENDT103 SFarmerD226-348-501972–
FENDT103 SAFarmerD225-3481972–
FENDT104 SFarmerD226-3551976–
FENDT104 SAFarmerD226-3551976–
FENDT105 SFarmerD225-4601972–
FENDT105 SFarmerD226-4601975–
FENDT106 SFarmerD225-4651972–
FENDT106 SFarmerD226-4651975–
FENDT106 SAFarmerD225-4651972–
FENDT108 SFarmerD226-4651975–
FENDT108 SAFarmerD226-4651975–
FENDT231 GTGTD325-3351987–
FENDT231 GTGTD327-3351987–
FENDT305 LSFarmerD227-461-631980–
FENDT600 LSFavoritD227-6861976–
FENDT610 LSFavoritD226-6901984–
FENDT610 LSFavoritD227-695-971979–1984
FENDT610 LSAFavoritD227-695-971979–1984
FENDT610 LSAFavoritD226-6901984–
FENDT610 SFavoritD225-6851972–1976
FENDT610 SAFavoritD225-6851972–1976
FENDT611 SFavoritD226-61051972–1976
FENDT611 SAFavoritD226-61051972–1976
FENDT611 SLFavoritD226-61051976–1978
FENDT611 SLFavoritD226-61051976–1978
FENDT612 LSFavoritD226-61351983–1987
FENDT612 LSAFavoritD226-61451988–1993
FENDT612 SFavoritD226-61201972–1976
FENDT612 SLFavoritD226-61201976–1984
FENDT614 LSFavoritD226-61351977–1984
FENDT614 LSAFavoritD226-61551983–1993
FENDT614 SAFavoritD226-61351974–1976
RENAULT AGRICULTURE103-12D226-40–
RENAULT AGRICULTURE103-14D226-40–
RENAULT AGRICULTURE110-14D226-60–
RENAULT AGRICULTURE113-12D226-60–
RENAULT AGRICULTURE113-14D227-60–
RENAULT AGRICULTURE1151-4115CV0–
RENAULT AGRICULTURE1181-4118CV0–
RENAULT AGRICULTURE120-14D226-60–
RENAULT AGRICULTURE120-54D226-60–
RENAULT AGRICULTURE133-14D226-60–
RENAULT AGRICULTURE133-54D226-60–
RENAULT AGRICULTURE145-14D228-60–
RENAULT AGRICULTURE145-54D228-60–
RENAULT AGRICULTURE21520D226-30–
RENAULT AGRICULTURE2261660CV0–
RENAULT AGRICULTURE24077D226-30–
RENAULT AGRICULTURE2517368CV0–
RENAULT AGRICULTURE25903D226-40–
RENAULT AGRICULTURE27729D226-40–
RENAULT AGRICULTURE29556D226-40–
RENAULT AGRICULTURE30130CV0–
RENAULT AGRICULTURE31382D226-40–
RENAULT AGRICULTURE35034D226-40–
RENAULT AGRICULTURE35135CV0–
RENAULT AGRICULTURE36136CV0–
RENAULT AGRICULTURE42142CV0–
RENAULT AGRICULTURE45646CV0–
RENAULT AGRICULTURE46048CV0–
RENAULT AGRICULTURE46146CV0–
RENAULT AGRICULTURE46246V0–
RENAULT AGRICULTURE48056CV0–
RENAULT AGRICULTURE48651CV0–
RENAULT AGRICULTURE48951CV0–
RENAULT AGRICULTURE49065CV0–
RENAULT AGRICULTURE49682CV0–
RENAULT AGRICULTURE49890CV0–
RENAULT AGRICULTURE5030CV0–
RENAULT AGRICULTURE5033CV0–
RENAULT AGRICULTURE5144CV0–
RENAULT AGRICULTURE5330CV0–
RENAULT AGRICULTURE55155CV0–
RENAULT AGRICULTURE551-455CV0–
RENAULT AGRICULTURE55655CV0–
RENAULT AGRICULTURE5646CV0–
RENAULT AGRICULTURE58-14D226-30–
RENAULT AGRICULTURE58-32D226-30–
RENAULT AGRICULTURE58-34D226-30–
RENAULT AGRICULTURE6046CV0–
RENAULT AGRICULTURE61-1460CV0–
RENAULT AGRICULTURE65-14D226-30–
RENAULT AGRICULTURE65-32D226-30–
RENAULT AGRICULTURE65-34D226-30–
RENAULT AGRICULTURE65165CV0–
RENAULT AGRICULTURE651-465CV0–
RENAULT AGRICULTURE65265CV0–
RENAULT AGRICULTURE65665CV0–
RENAULT AGRICULTURE68-1468CV0–
RENAULT AGRICULTURE68168CV0–
RENAULT AGRICULTURE7046CV0–
RENAULT AGRICULTURE70-14D226-40–
RENAULT AGRICULTURE70-32D226-40–
RENAULT AGRICULTURE70-34D226-40–
RENAULT AGRICULTURE75-14D226-40–
RENAULT AGRICULTURE75-32D226-40–
RENAULT AGRICULTURE75-34D226-40–
RENAULT AGRICULTURE751-475CV0–
RENAULT AGRICULTURE78178CV0–
RENAULT AGRICULTURE8055CV0–
RENAULT AGRICULTURE80-14D226-40–
RENAULT AGRICULTURE8251CV0–
RENAULT AGRICULTURE85-14D226-40–
RENAULT AGRICULTURE85-32D226-40–
RENAULT AGRICULTURE85-34D226-40–
RENAULT AGRICULTURE85185CV0–
RENAULT AGRICULTURE8655CV0–
RENAULT AGRICULTURE8958CV0–
RENAULT AGRICULTURE89189CV0–
RENAULT AGRICULTURE9062CV0–
RENAULT AGRICULTURE9065CV0–
RENAULT AGRICULTURE90-32D-226-40–
RENAULT AGRICULTURE90-34D-226-40–
RENAULT AGRICULTURE9172CV0–
RENAULT AGRICULTURE9262CV0–
RENAULT AGRICULTURE9480CV0–
RENAULT AGRICULTURE95-14D226-40–
RENAULT AGRICULTURE95195CV0–
RENAULT AGRICULTURE9690CV0–
RENAULT AGRICULTURE9890CV0–
RENAULT AGRICULTURE98198CV0–
RENAULT AGRICULTUREVarious ModelsTD226-40–
