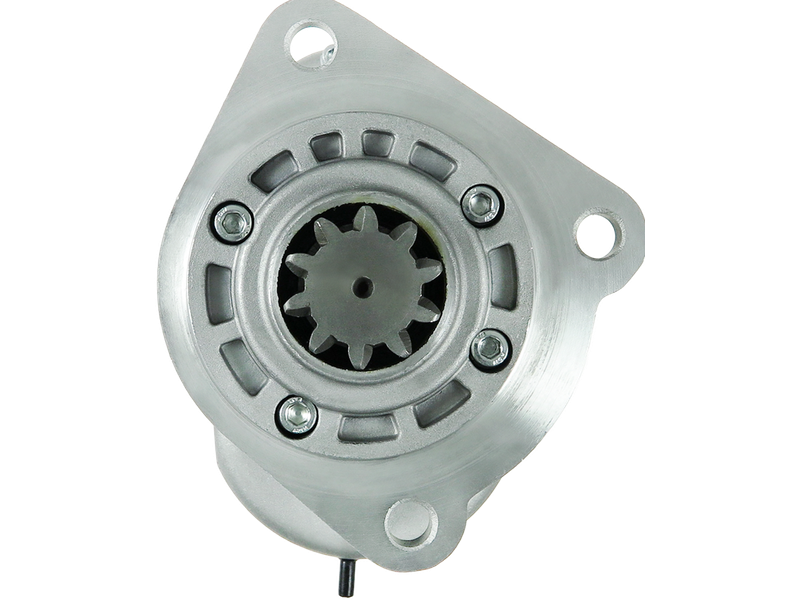

AS-PL S9051 Startmotor — JCB, HY-MAC, INGERSOLL RAND

AS-PL S9051 Startmotor — JCB, HY-MAC, INGERSOLL RAND

1 105,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MAGNETON

Spänning [ V ] 12
Effekt [ kW ] 2.7
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 31.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 239.00
O.1 [ mm ] 89.00
O.2 [ mm ] 89.00
O.3 [ mm ] 126.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50
AS-PLSTANDARD LINE
EAN5901259437751
ErsätterMAGNETON
OE-nummer9142720

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9051 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MAGNETON.

OE-nummer: 9142720

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.7
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 31.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 239.00
O.1 [ mm ] 89.00
O.2 [ mm ] 89.00
O.3 [ mm ] 126.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
C.3 [ mm ] 11.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ATLAS COPCOCompresor01975–
BARBER GREENESA 13101976–
BARBER GREENESA 14001976–
BARBER GREENESA 14101976–
BEDFORDSP Coach 30001975–1984
BEDFORDTL 1000 330 / 1260 33001980–1982
BEDFORDTL 1260 33001980–1982
BEDFORDTL 1630 33001982–1986
BEDFORDTL 860 33001980–1982
CASE IH182001975–1997
CASE IHACCO 182001975–1997
CASE IHTX 3601975–1997
COMPAIRHYDROVANE 100DS01976–
COMPAIRHYDROVANE 85DS01976–
DENNISDominant / MunicipalPerkins6.35401979–1979
HY-MACCrawler Excavator 1080CumminsV504C01973–
HY-MACCrawler Excavator 1080CumminsV8-18501973–
HY-MACCrawler Excavator 1290CumminsNH221B-101973–
HY-MACCrawler Excavator 1290CumminsNH220B01973–
HY-MACCrawler Excavator 580C01970–
HY-MACCrawler Excavator 59001973–
HY-MACCrawler Excavator 69001973–
HY-MACCrawler Excavator 880CCumminsV8-18501973–
HY-MACCrawler Excavator 880CCumminsV504C01973–
HY-MACExcavator 880CVolvo01973–
HY-MACWheeled Excavator 59501973–
HY-MACWheeled Excavator 59601973–
INGERSOLL RAND140SLPerkins01976–
INGERSOLL RAND175SLPerkins01976–
INGERSOLL RAND250SLPerkins01976–
INGERSOLL RANDDR140SPerkins01976–
INGERSOLL RANDDR175SPerkins01976–
INGERSOLL RANDDR250SPerkins01976–
JCBBackhoe-Loader 3CX-401994–
JCBBackhoe-Loader 4WD01991–
JCBExcavator 807C01982–
JCBFastrac 111573601995–1997
JCBFastrac 113573601995–1997
JCBFastrac 12563501991–1993
JCBFastrac 12563601993–
JCBFastrac 13563601993–
JCBFastrac 14563601991–1993
JCBFastrac 15563601993–
JCBFastrac 18563601994–
JCBLoader 43001983–
JCBLoader TU01982–1991
JCBPower Slide Excavator 81101985–
JCBPower Slide Excavator 81201985–
JCBPower Slide Excavator 81401985–
JCBPower Slide Excavator 81701985–
JCBPower Slide Excavator 81801985–
JCBPower Slide Excavator 82001985–
LANDINILegendPerkins10066HR30–
LINDE351030–
LINDE3520–
LINER CONCRETEGiraffe Forklift01976–
MARSHALLTractors MF 120001969–1992
MARSHALLTractors MF 20001971–1979
MARSHALLTractors TM 1600Pipelayer01973–1978
MARSHALLTractors TM 1700Pipelayer01973–1978
MARSHALLTractors TM 7501971–1971
MASSEY FERGUSONTM 85F01973–1978
MASSEY FERGUSONTM 9001973–1978
PERKINSEngine1004.40–
RELIANCE MERCURYRM 15001977–1980
RELIANCE MERCURYRM 4001977–1980
RELIANCE MERCURYRM 5001977–1980
RELIANCE MERCURYRM 6001977–1980
RELIANCE MERCURYRM 7001977–1980
SANDERSONFram Handler 6-2201987–
SANDERSONFram Handler 7-2501992–
