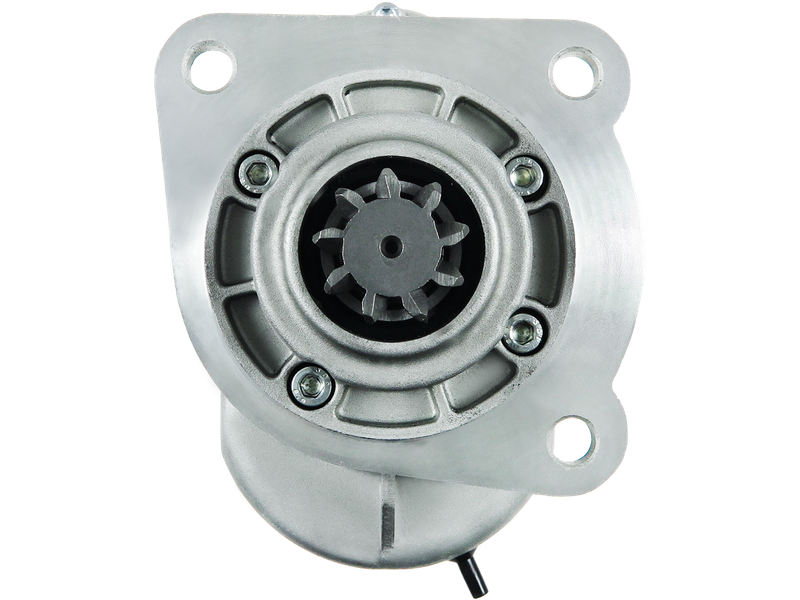

AS-PL S9054 Startmotor — IVECO, VOLVO, FIAT

AS-PL S9054 Startmotor — IVECO, VOLVO, FIAT

1 087,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MAGNETON

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.50
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 235.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5901259437782
ErsätterMAGNETON
OE-nummer9142744

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9054 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MAGNETON.

OE-nummer: 9142744

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.50
Antal kuggar [ qty. ] 9
Antal kuggar (passar in) [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 235.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
FIAT1000S10008065.04.2001101976–1979
FIAT13001000CP3-100129-1311973–1976
FIAT1300S1000CP3-1001501976–1979
FIAT1300S1000CP3-1001501976–1979
FIAT850800C03-8084-861969–1975
FIAT850800C03-8084-861969–1975
FIAT880800C03-130881978–1980
FIAT880800C03-130881978–1980
IVECO109-14ZETA8060.04.6891351983–1985
IVECO109-14ZETA8060.05.289137-1391985–1991
IVECO109-14 HZETA8060.04.6891351983–1985
IVECO109-14 HZETA8060.05.289137-1391985–1991
IVECO75 E 14, 75 E 14 PEUROCARGO I-III8040.45.40001361991–2015
IVECO75 E 14, 75 E 14 PEUROCARGO I-III8040.45.41801361991–2015
IVECO79-13ZETA8060.04.6601311979–1983
IVECO79-13ZETA8060.04.6601311979–1983
IVECO79-13ZETA8060.04.6601311979–1983
IVECO79-13ZETA8060.04.0601311979–1983
IVECO79-13ZETA8060.04.0601311979–1983
IVECO79-13ZETA8060.04.0601311979–1983
IVECO79-14ZETA8060.04.6601351983–1985
IVECO79-14ZETA8060.05.2801371985–1991
IVECO79-14ZETA8060.05.2801371985–1991
IVECO79-14ZETA8060.04.6601351983–1985
IVECO79-14 HZETA8060.05.2801371985–1991
IVECO79-14 HZETA8060.04.6601351983–1985
IVECO79-14 HZETA8060.04.6601351983–1985
IVECO79-14 HZETA8060.05.2801371985–1991
IVECO79-14 VZETA8060.04.6601351983–1985
IVECO79-14 VZETA8060.05.2801371985–1991
IVECO79-14 VZETA8060.05.2801371985–1991
IVECO79-14 VZETA8060.04.6601351983–1985
IVECO95-14ZETA8060.04.6691351983–1985
IVECO95-14 HZETA8060.04.6691351983–1985
VOLVOF 609F6D60A1201975–1980
VOLVOF 610F6TD60C147-1541980–1986
VOLVOF 611F6TD60C1541980–1986
VOLVOF 611F6D60A1201975–1980
VOLVOF 613,F 614F6TD60B174-1801975–1986
VOLVOF 613,F 614F6TD60A174-1801975–1986
VOLVOF 615 SF6TD60B1801978–1981
VOLVOF 617 SF6TD60B1801978–1986
VOLVOF 7F7TD70FS2201978–1985
VOLVOF 7F7TD70G2201978–1985
VOLVOF 7F7TD70FS2451978–1985
VOLVOF 7F7TD70FS2451978–1985
VOLVOF 7F7TD70F2201978–1985
VOLVOF 7F7TD70FS2201978–1985
VOLVOF 7F7TD70G2201978–1985
VOLVOF 7F7TD70F2201978–1985
VOLVOF 7F7TD70FS2201978–1985
VOLVOF 7F7TD70FS2451978–1985
VOLVOF 7F7TD70G2201978–1985
VOLVOF 7F7TD70F2201978–1985
VOLVOF 7F7TD70FS2451978–1985
VOLVOF 7F7TD70FS2201978–1985
VOLVOF 7F7TD70G2201978–1985
VOLVOF 7F7TD70F2201978–1985
VOLVON7N7TD70ES2111973–1980
