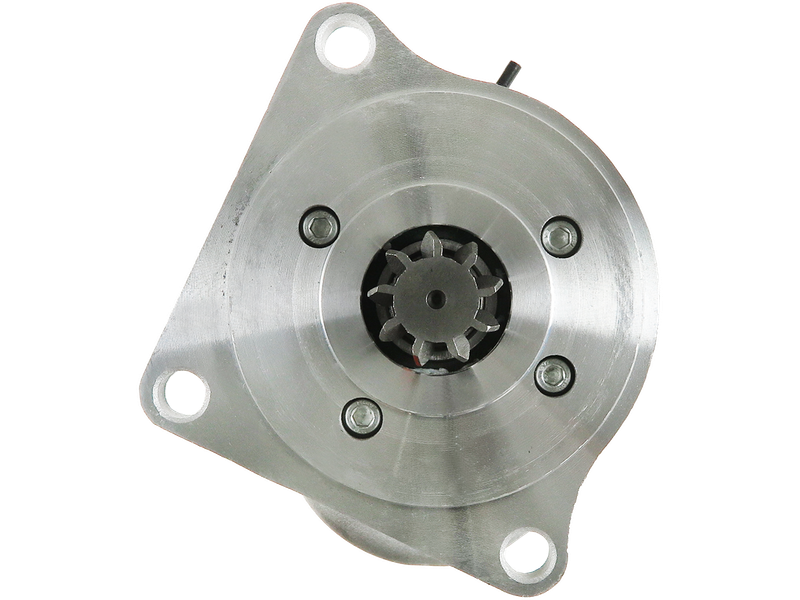

AS-PL S9055 Startmotor — IVECO, NEW HOLLAND, FIAT

1 133,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MAGNETON

Spänning [ V ]	12
Effekt [ kW ]	2.70
Startmotors rotation	CW
A-storlek [ mm ]	110.00
B-storlek [ mm ]	28.00
Antal kuggar [ qty. ]	9
Antal kuggar (passar in) [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	236.00
O.1 [ mm ]	104.00
O.2 [ mm ]	105.00
O.3 [ mm ]	147.00
C.1 [ mm ]	12.50
C.2 [ mm ]	12.50
C.3 [ mm ]	12.50

AS-PLSTANDARD LINE

EAN	5901259437799
Ersätter	MAGNETON
OE-nummer	9142680

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9055 Category: Startmotorer Tags: AS-PL, STANDARD LINE

Description

Denna produkt ersätter originaldelar från MAGNETON.

OE-nummer: 9142680

Specifikationer

Spänning [ V ]	12
Effekt [ kW ]	2.70
Startmotors rotation	CW
A-storlek [ mm ]	110.00
B-storlek [ mm ]	28.00
Antal kuggar [ qty. ]	9
Antal kuggar (passar in) [ qty. ]	9
Antal hål i huvudet [ qty. ]	3
Antal gängade hål [ qty. ]	0
L.1 [ mm ]	236.00
O.1 [ mm ]	104.00
O.2 [ mm ]	105.00
O.3 [ mm ]	147.00
C.1 [ mm ]	12.50
C.2 [ mm ]	12.50
C.3 [ mm ]	12.50

Fordonskompatibilitet

Märke	Modell	Typ	Motor	Hk	År
AGRIFULL		703.6	8045.06.206	0	1984–
AGRIFULL		70DT Frutteto3.6	8045.06.208	0	1985–
AGRIFULL		80.763.7	8045.04.276	0	1984–1984
AGRIFULL		80C3.9	8045.05.207	0	1990–
AGRIFULL		80DTF3.9	8045.05.309	0	1990–
AGRIFULL		80F3.9	8045.05.209	0	1990–
AGRIFULL		A70LM3.6	8045.06.206	0	1990–
AGRIFULL	3.5	670	8045.02.378	0	1980–1984
AGRIFULL	3.5	80 66	8045.02.276	0	1984–1984
AGRIFULL	3.5	80 70C	8045.02.211	0	1980–1983
AGRIFULL	3.5	80 70F	8045.02.278	0	1980–1984
AGRIFULL	3.6	65	8045.06.320	0	1985–1989
AGRIFULL	3.6	65 DT	8045.06.220	0	1985–
AGRIFULL	3.6	65 LM	8045.06.321	0	1990–
AGRIFULL	3.6	70	8045.06.307	0	1990–
AGRIFULL	3.6	70 .86F	8045.06.208	0	1992–
AGRIFULL	3.6	70 C	8045.06.307	0	1990–
AGRIFULL	3.6	70 C	8045.06.306	0	1985–1989
AGRIFULL	3.6	70 C-L	8045.06.206	0	1985–
AGRIFULL	3.6	70 Frutteto	8045.06.309	0	1990–
AGRIFULL	3.6	70 Frutteto	8045.06.308	0	1985–1989
AGRIFULL	3.9	80	8045.05.206	0	1984–1989
AGRIFULL	3.9	80	8045.05.207	0	1990–
AGRIFULL	3.9	80 C	8045.05.206	0	1985–1989
AGRIFULL	3.9	80 DTF	8045.05.308	0	1986–1989
AGRIFULL	3.9	80 F	8045.05.208	0	1986–1989
AGRIFULL	3.9	82.86 F	8045.05.208	0	1992–
AIFO		Engine	8065.02.000	0	1973–1980
AIFO		Engine	8061.04.000	0	1979–1983
AIFO		Engine	8031.04.300	0	1979–1983
AIFO		Engine	8061.04.051	0	1981–1983
AIFO		Engine	8041.04.300	0	1979–1983
AIFO		Engine	8061.04.061	0	1981–1983
AIFO		Engine	8060.02.811	0	1973–1980
AIFO		Engine	8061.04.050	0	1979–1983
AIFO		Engine	8041.04.200	0	1980–1980
AIFO		Engine	8061.04.060	0	1978–1983
AIFO		Engine	8060.02.800	0	1973–1981
BENFRA	2.8	215 I	8031I002	0	1979–1985
BENFRA	3.9	1.45	8041SI25	0	1989–
BENFRA	3.9	4.11	8041SI25	0	1989–
BENFRA	3.9	7.07	8041SI25	0	1989–1991
BENFRA	5.9	9.09 CH	8061SI25	0	1985–1991
BENFRA	5.9	9.10 CH	8061SI25	0	1985–1991
CASE IH	JX 80, JX 90	JX-SERIES		80-90	2007–2008
CASE IH	JX 80, JX 90	JX-SERIES		80-90	2007–2008
CASE IH	JX 95	JX-SERIES		94	2007–2008
CASE IH	JX 95	JX-SERIES		94	2007–2008
FIAT	580	500 Serie	8035.04.270	58	1978–1984
FIAT	580	500 Serie	8035.04.270	58	1978–1984
FIAT	600	600 Serie	8045.02	60	1971–1972
FIAT	600	600 Serie	8045.02	60	1971–1972
FIAT	65-88	88	8045.06.326	65	1989–1993
FIAT	65-88	88	8045.06.319	65	1989–1993
FIAT	65-88	88	8045.06.213	65	1989–1993
FIAT	65-88	88	8045.06.319	65	1989–1993
FIAT	65-88	88	8045.06.225	65	1989–1993
FIAT	65-88	88	8045.06.326	65	1989–1993
FIAT	65-88	88	8045.06.225	65	1989–1993
FIAT	65-88	88	8045.06.213	65	1989–1993
FIAT	65-90	90	8045.06.213	65	1987–1992
FIAT	666	600 Serie	8045.02	68	1982–1986
FIAT	666	600 Serie	8045.02	68	1982–1986
FIAT	680	600 Serie	8045.02	68	1978–1984
FIAT	680	600 Serie	8045.02	68	1978–1984
FIAT	70-88	88	8045.06.208	69-71	1989–1993
FIAT	70-88	88	8045.06.200	69-71	1989–1993
FIAT	70-90	90	8045.06.208	70	1984–1992
FIAT	70-90	90	8045.06.200	70	1984–1992
FIAT	72-94	94	8045.06.200	69-71	1993–1996
FIAT	80-88	88	8045.05.000	80	1989–1993
FIAT	85-90	90	8045.25.210	84-86	1987–1992
FIAT	85-90	90	8045.25.310	84-86	1987–1992
FIAT	88-94	88	8045.25.210	84-86	1993–1996
FIAT	880/5	800	8055.04.200	88	1980–1984
FIAT	880/5	800	8055.04.200	88	1980–1984
FIAT	L65	L	8045.06.225	65	1996–1998
FIAT	L65	L	8045.06.326	65	1996–1998
FIAT	L65	L	8045.06.213	65	1996–1998
FIAT	L65	L	8045.06.319	65	1996–1998
FIAT	TL80	TL	8045.05.000	80	1998–2004
IVECO		Engine	8041I05.50	0	1990–
IVECO		Engine	8031I05.00	0	1990–
IVECO		Engine	806125.010	0	1985–
IVECO		Engine	806105.260	0	1986–1988
IVECO		Engine	805104.100	0	1984–1984
IVECO		Engine	804105.260	0	1986–1988
IVECO		Engine	8061SI35.05	0	1991–
IVECO		Engine	806105.300I25	0	1986–1989
IVECO		Engine	806104.060	0	1983–1984
IVECO		Engine	8051I05.00	0	1990–
IVECO		Engine	8041I05.00	0	1990–
IVECO		Engine	803105.300	0	1985–1989
IVECO		Engine	8061	0	1990–
IVECO		Engine	806125.000	0	1986–
IVECO		Engine	806105.000	0	1985–1989
IVECO		Engine	8041SI25.00	0	1990–
IVECO		Engine	804104.300	0	1983–1984
IVECO		Engine	8061I05.00	0	1990–
IVECO		Engine	806105.260	0	1990–
IVECO		Engine	806104.001	0	1984–1984
IVECO		Engine	805105.200	0	1985–1989
IVECO		Engine	804105.300	0	1985–1989
IVECO		Engine	803104.300	0	1983–1984
IVECO		Engine	8061SRI25.00	0	1989–
IVECO		Engine	806124.000	0	1984–1985
IVECO		Engine	806104.061	0	1983–1983
IVECO		Engine	806104.000	0	1983–1984
IVECO	109-14	ZETA	8060.04.689	135	1983–1985
IVECO	109-14	ZETA	8060.05.289	137-139	1985–1991
IVECO	109-14 H	ZETA	8060.04.689	135	1983–1985
IVECO	109-14 H	ZETA	8060.05.289	137-139	1985–1991
IVECO	2.9	DI 20C	8035.05.359	0	1986–1990
IVECO	3.9	8041	8041.05..	0	1986–1988
IVECO	4.9	8051	8051.05..	0	1984–2000
IVECO	5.5	8061	8061.04..	0	1983–1986
IVECO	5.9	8061	8061..	0	1986–2000
IVECO	75 E 14, 75 E 14 P	EUROCARGO I-III	8040.45.4000	136	1991–2015
IVECO	75 E 14, 75 E 14 P	EUROCARGO I-III	8040.45.4180	136	1991–2015
IVECO	79-13	ZETA	8060.04.660	131	1979–1983
IVECO	79-13	ZETA	8060.04.660	131	1979–1983
IVECO	79-13	ZETA	8060.04.660	131	1979–1983
IVECO	79-13	ZETA	8060.04.060	131	1979–1983
IVECO	79-13	ZETA	8060.04.060	131	1979–1983
IVECO	79-13	ZETA	8060.04.060	131	1979–1983
IVECO	79-14	ZETA	8060.04.660	135	1983–1985
IVECO	79-14	ZETA	8060.05.280	137	1985–1991
IVECO	79-14	ZETA	8060.05.280	137	1985–1991
IVECO	79-14	ZETA	8060.04.660	135	1983–1985
IVECO	79-14 H	ZETA	8060.04.660	135	1983–1985
IVECO	79-14 H	ZETA	8060.05.280	137	1985–1991
IVECO	79-14 H	ZETA	8060.05.280	137	1985–1991
IVECO	79-14 H	ZETA	8060.04.660	135	1983–1985
IVECO	79-14 V	ZETA	8060.04.660	135	1983–1985
IVECO	79-14 V	ZETA	8060.05.280	137	1985–1991
IVECO	79-14 V	ZETA	8060.05.280	137	1985–1991
IVECO	79-14 V	ZETA	8060.04.660	135	1983–1985
IVECO	95-14	ZETA	8060.04.669	135	1983–1985
IVECO	95-14 H	ZETA	8060.04.669	135	1983–1985
LAVERDA	4.6	3300	8051.04.100	0	1983–1986
LAVERDA	4.9	3300 AL	8051I005	0	1983–
LAVERDA	5.2	3350	8065I	0	1983–1986
LAVERDA	5.2	3450	8065I	0	1983–1984
LAVERDA	5.5	3350 AL	8061SI	0	1983–1986
LAVERDA	5.5	3500	8061I05	0	1985–
LAVERDA	5.5	3600	8061SI	0	1983–1986
LAVERDA	5.5	3750	8061SI25	0	1985–
LAVERDA	5.9	3400	8061I005	0	1986–
LAVERDA	5.9	3550	8061SI05	0	1985–
LAVERDA	5.9	3650	8061I05	0	1985–
NEW HOLLAND	3.6	65 56	8045.06.220	0	1990–
NEW HOLLAND	3.6	65 66	8045.06.220	0	1987–
NEW HOLLAND	3.6	65 88	8045.06.319	0	1989–
NEW HOLLAND	3.6	65 90	8045.06.225	0	1987–
NEW HOLLAND	3.6	70 56	8045.06.206	0	1990–
NEW HOLLAND	3.6	70 56	8045.06.307	0	1990–
NEW HOLLAND	3.6	70 66	8045.06.206	0	1984–
NEW HOLLAND	3.6	70 66F	8045.06.208	0	1990–
NEW HOLLAND	3.6	70 75	8045.06.206	0	1990–
NEW HOLLAND	3.6	70 86F	8045.06.208	0	1992–
NEW HOLLAND	3.6	70 88	8045.06.317	0	1989–
NEW HOLLAND	3.6	70 90	8045.06.200	0	1984–
NEW HOLLAND	3.6	7066 DT	8045.06.307	0	1990–
NEW HOLLAND	3.6	7076 V	8045.06.309	0	1990–
NEW HOLLAND	3.6	7076 V	8045.06.208	0	1990–
NEW HOLLAND	3.9	80 88	8045.05.216	0	1989–
NEW HOLLAND	3.9	82 86F	8045.05.208	0	1992–
NEW HOLLAND	5.100	TD 5		98	2011–
NEW HOLLAND	5.100	TD 5		98	2011–
NEW HOLLAND	5.105	TD 5		106	2011–
NEW HOLLAND	5.115	TD 5		113	2011–
NEW HOLLAND	5.5	3500	8061I05	0	1985–
NEW HOLLAND	5.75	TD 5		76	2011–
NEW HOLLAND	5.75	TD 5		76	2011–
NEW HOLLAND	5.9	3550	8061SI05	0	1985–
NEW HOLLAND	5.9	3750	8061SI25	0	1985–
NEW HOLLAND	5.9	517 H	8061SI35	0	1939–
NEW HOLLAND	5.9	517 I	8061SI35	0	1939–
NEW HOLLAND	5.9	517 M	8061SI35	0	1939–
NEW HOLLAND	5.9	L 517H	8061SI35	0	1992–
NEW HOLLAND	5.90	TD 5		88	2011–
NEW HOLLAND	5.90	TD 5		88	2011–
NEW HOLLAND	5.95	TD 5		95	2011–
NEW HOLLAND	TL100	TL		101	1999–2003
NEW HOLLAND	TL100	TL		101	1999–2003
NEW HOLLAND	TL80	TL		82	1999–2003
NEW HOLLAND	TL80	TL		82	1999–2003
NEW HOLLAND	TL90	TL		91	1999–2003
NEW HOLLAND	TL90	TL		91	1999–2003
NEW HOLLAND	TN60DA	TN-A		59	2004–2008
NEW HOLLAND	TN60DA	TN-A		59	2004–2008
NEW HOLLAND	TN60SA	TN-A		59	2004–2008
NEW HOLLAND	TN65F	TN	8045.06	60	1999–2002
NEW HOLLAND	TN70DA, TN75DA	TN-A		72-76	2004–2008
NEW HOLLAND	TN70DA, TN75DA	TN-A		72-76	2004–2008
NEW HOLLAND	TN75FA	TNF-A	8045.05	73-76	2004–
NEW HOLLAND	TN75FA	TNF-A	8045.05	72-76	2004–
NEW HOLLAND	TN85FA	TNF-A		84	2004–
NEW HOLLAND	TN85FA	TNF-A		84	2004–
NEW HOLLAND	TN90F	TN		90	1999–2001

Visar 200 av 205 fordon
