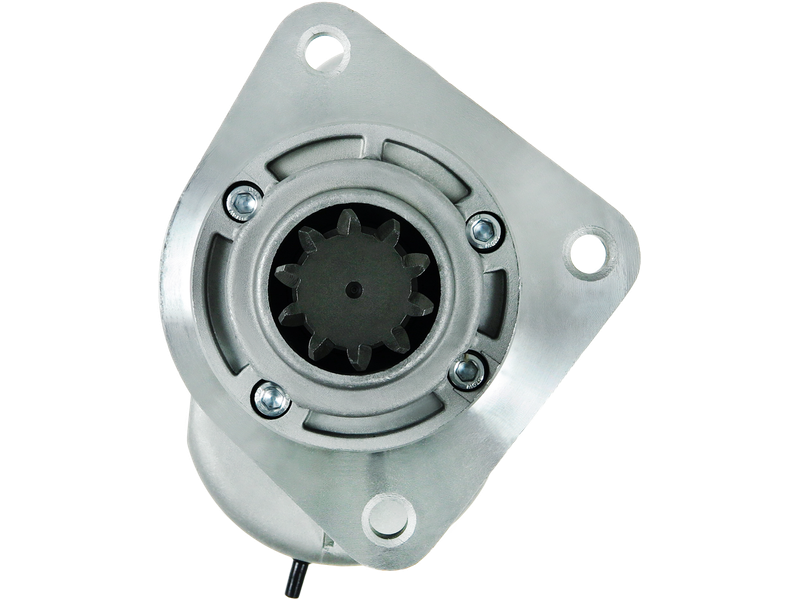

AS-PL S9061 Startmotor — VALMET, SISU, ZETOR

AS-PL S9061 Startmotor — VALMET, SISU, ZETOR

1 087,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MAGNETON

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 88.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 236.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50
AS-PLSTANDARD LINE
EAN5901259438000
ErsätterMAGNETON
OE-nummer9142741

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9061 Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MAGNETON.

OE-nummer: 9142741

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 2.70
Startmotors rotation CW
A-storlek [ mm ] 88.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 10
Antal kuggar (passar in) [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 236.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
SISUEngineTD27DS40–
SISUEngineSISU411BS0–
SISUEngineTD33DS50–
SISUEngineSISU411C0–
SISUEngineSISU310B0–
SISUEngineTD44DS80–
SISUEngineTD27DS30–
SISUEngineSISU311C0–
SISUEngineTD33DS40–
SISUEngineSISU411B0–
SISUEngineTD33DS60–
SISUEngineSISU4110–
SISUEngineSISU311CS0–
URSUSC-330M01986–1993
URSUSC-3350–
URSUSC-36001976–1992
VALMET11000–
VALMET1102411BS0–
VALMET11120–
VALMET1203411CX0–
VALMET305TD27DS30–
VALMET405TD27DS40–
VALMET455TD33DS40–
VALMET500310B01969–1975
VALMET502310B01969–1975
VALMET504D27B0–
VALMET505TD33DS50–
VALMET542310B01969–1975
VALMET600001990–
VALMET602311C/311CS0–
VALMET604D33C/TD33C0–
VALMET605TD33DS60–
VALMET655D44D70–
VALMET660001990–
VALMET70001971–1972
VALMET702S411B/411BS0–
VALMET703411C0–
VALMET705TD44DS70–
VALMET71201971–1972
VALMET755TD0–
VALMET802411CS0–
VALMET803411CS0–
VALMET805TD44DS80–
VALMET855TD44DS80–
VALMET90001969–
VALMET903411CS90–
ZETOR3320MajorZ5201451992–2006
ZETOR3340MajorZ5201451992–2006
ZETOR4320MajorZ6201571992–2006
ZETOR4340MajorZ6201571992–2006
ZETOR5320MajorZ7201631992–2006
ZETOR5340MajorZ7201631992–2006
ZETOR6320, 7320MajorZ730168-781992–2006
ZETOR6320, 7320MajorZ770168-781992–2006
ZETOR6340, 7340MajorZ770168-781992–2006
ZETOR6340, 7340MajorZ730168-781992–2006
