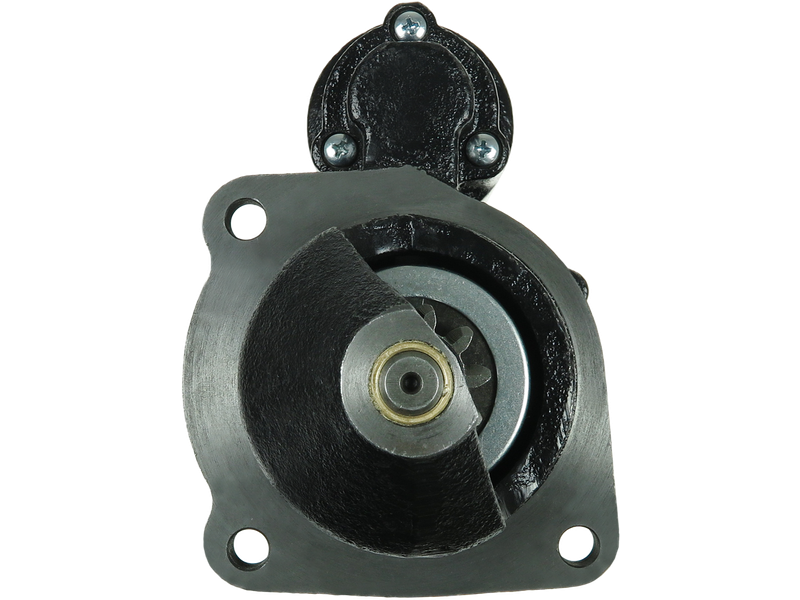

AS-PL S9284S Startmotor — CASE IH, INTERNATIONAL, INTERNATIONAL HARV.

AS-PL S9284S Startmotor — CASE IH, INTERNATIONAL, INTERNATIONAL HARV.

1 519,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.50
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 286.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50
AS-PLSTANDARD LINE
EAN5902129055860
ErsätterISKRA / LETRIKA
OE-nummer11.132.010

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9284S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: 11.132.010

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.50
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 286.00
O.1 [ mm ] 90.00
O.2 [ mm ] 90.00
O.3 [ mm ] 127.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CASE IH32203-17901994–1997
CASE IH32304-20601994–1997
CASE IH380 B01981–1993
CASE IH380CKD-17901973–1980
CASE IH3853-15501984–1990
CASE IH3953-15501985–1993
CASE IH4210D-23901994–1996
CASE IH4210IHD-23901994–1996
CASE IH42104-23901994–1997
CASE IH4230D-26801994–1996
CASE IH42304-26801994–1997
CASE IH4230IHD-26801994–1996
CASE IH4240IHDT-26801994–1996
CASE IH4240DT-26801994–1996
CASE IH42404-26801994–1997
CASE IH454D-17901971–1975
CASE IH474IHD-20601973–1975
CASE IH474D-20601973–1975
CASE IH484D-17901977–1982
CASE IH4853-17901985–1990
CASE IH485 401988–
CASE IH485XLD-17901982–1991
CASE IH495D-17901991–1994
CASE IH4953-17901991–1994
CASE IH574IHD-23901971–1976
CASE IH574D-23901971–1976
CASE IH584D-20601977–1982
CASE IH584IHD-20601977–1982
CASE IH585 XLD-20601982–1991
CASE IH585 XLIHD-20601982–1991
CASE IH595D-20601991–1994
CASE IH5954-20601991–1994
CASE IH595IHD-20601991–1994
CASE IH674D-23901973–1981
CASE IH674IHD-23901973–1981
CASE IH684IHD-23901977–1982
CASE IH684D-23901977–1982
CASE IH685XLD-23901982–1991
CASE IH685XLIHD-23901982–1991
CASE IH695IHD-23901991–1994
CASE IH695D-23901991–1994
CASE IH6954-23901991–1994
CASE IH78401990–2008
CASE IH784D-24601977–1974
CASE IH784IHD-24601977–1981
CASE IH78501981–1986
CASE IH785D-24601981–1985
CASE IH785IHD-24601981–1985
CASE IH785 XL01981–1986
CASE IH79501990–1994
CASE IH8854-26801985–1994
CASE IH885 XLIHD-26801983–1990
CASE IH885 XLD-26801983–1990
CASE IH8954-26801991–1994
CASE IH9954-26801991–1994
CASE IH2.932203-17901994–1997
CASE IH2.94853-17901985–1990
CASE IH2.94953-17901985–1994
CASE IH2.9495 XL3-17901985–1994
CASE IH3.0454IHD-17901971–1975
CASE IH3.0484IHD-17901977–1982
CASE IH3.0485XLIHD-17901982–1991
CASE IH3.0495IHD-17901991–1994
CASE IH3.432304-20601994–1997
CASE IH3.442104-23901991–1997
CASE IH3.45854-20601983–1990
CASE IH3.4585 L4-20601983–1994
CASE IH3.4585 XL4-20601983–1994
CASE IH3.45954-20601983–1994
CASE IH3.4595 XL4-20601983–1994
CASE IH3.96854-23901985–1994
CASE IH3.96954-23901985–1994
CASE IH4.442304-26801994–1997
CASE IH4.442404-26801994–1997
CASE IH4.48854-26801985–1990
CASE IH4.4885 N4-26801985–1994
CASE IH4.4885 XL4-26801985–1994
CASE IH4.48954-26801985–1994
CASE IH4.49954-26801991–1994
INTERNATIONAL240D-23901976–1981
INTERNATIONAL240D-17901976–1981
INTERNATIONAL250D-17901976–1981
INTERNATIONAL250D-23901976–1981
INTERNATIONAL260D-17901976–1981
INTERNATIONAL260D-23901976–1981
INTERNATIONAL270D-17901976–1981
INTERNATIONAL270D-23901976–1981
INTERNATIONAL340001975–2008
INTERNATIONAL350001975–2008
INTERNATIONAL47401973–1976
INTERNATIONAL484D-17901978–1984
INTERNATIONAL584D-20601978–1984
INTERNATIONAL684D-23901978–1984
INTERNATIONAL784D-24601978–1984
INTERNATIONAL884D-26801979–1984
INTERNATIONALI-450001975–1982
INTERNATIONALI-45401972–1976
INTERNATIONALI-574C-20001972–1976
INTERNATIONALI-674C-20001972–1976
INTERNATIONALTD-240D-23901976–1981
INTERNATIONALTD-240D-17901976–1981
INTERNATIONALTD-250D-17901976–1981
INTERNATIONALTD-250D-23901976–1981
INTERNATIONALTD-260D-17901976–1981
INTERNATIONALTD-260D-23901976–1981
INTERNATIONALTD-270D-23901976–1981
INTERNATIONALTD-270D-17901976–1981
INTERNATIONALTD-340001975–2008
INTERNATIONALTD-350001975–2008
INTERNATIONAL HARV.383CM-SeriesD-155351972–1975
INTERNATIONAL HARV.533 VA-SeriesD-155451973–1987
INTERNATIONAL HARV.553CM-SeriesD-179521972–1974
INTERNATIONAL HARV.553 ACM-SeriesD-179521972–1974
MASSEY FERGUSONMF-5001970–1971
