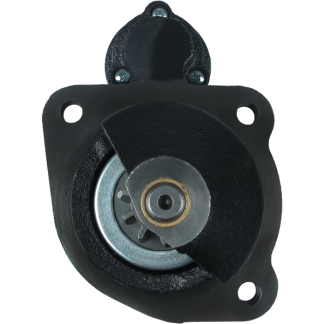

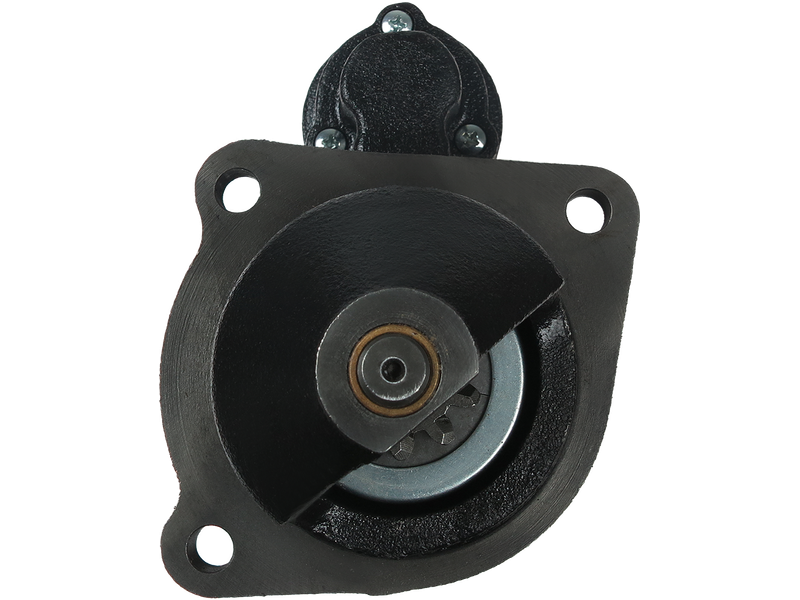

AS-PL S9504S Startmotor — CLAAS

1 550,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 4.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 29.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 351.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129184744
ErsätterISKRA / LETRIKA
OE-nummerAZF4254

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9504S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: AZF4254

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 4.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 29.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 351.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CLAAS4.4Axos 3100
CLAAS4.4Axos 3200
CLAAS4.4Axos 3300
CLAAS4.4Axos 3400
