Letrika S9505(LETRIKA) Startmotor — INTERNATIONAL HARV., CASE IH

Letrika S9505(LETRIKA) Startmotor — INTERNATIONAL HARV., CASE IH

4 278,00 kr inkl. moms

PREMIUM LINE | Tillverkare: Letrika | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 287.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50
LetrikaPREMIUM LINE
EAN5902129191872
ErsätterISKRA / LETRIKA
OE-nummerMS18

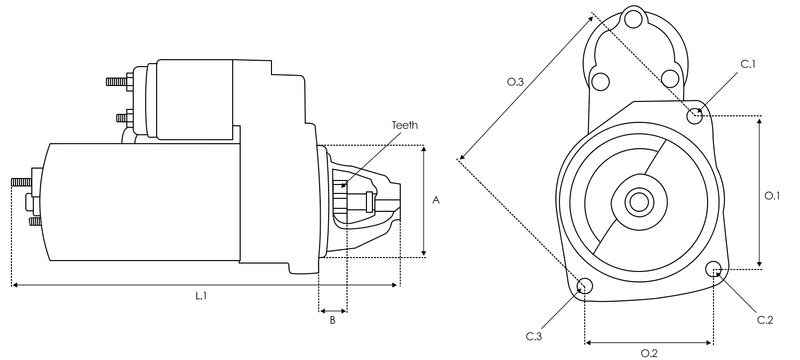

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9505(LETRIKA) Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: MS18

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 49.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 287.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CASE IH22101972–1974
CASE IH30 B01975–1976
CASE IH50 B01973–1979
CASE IH60 B01971–1984
CASE IHTD8 B01969–1976
CASE IHVG8890–
CASE IH2.5531D-31001986–1986
CASE IH3.4644D-20601986–1986
CASE IH3.4644D-20601974–1980
CASE IH3.4644AD-20601986–1986
CASE IH3.4654D-20601972–1974
CASE IH3.4733D-20601980–1989
CASE IH3.4733 AD-20601980–1989
CASE IH3.4733 EAD-20601980–1989
CASE IH3.9321D-23901986–
CASE IH3.9724 AD-23901969–1974
CASE IH3.9743D-23901981–1989
CASE IH3.9743 XLAD-23901981–1989
CASE IH3.9745 SD-23901980–1989
CASE IH3.9745 SAD-23901980–1989
CASE IH3.9844D-31001975–1990
CASE IH3.98444-206-26801975–1990
CASE IH3.9844D-38501975–1990
CASE IH3.9844 AD-38501975–1990
CASE IH3.9844 AD-31001975–1990
CASE IH3.9844 A4-206-26801975–1990
CASE IH3.9844 S4-206-26801975–1990
CASE IH3.9844 SD-38501975–1990
CASE IH3.9844 SD-31001975–1990
CASE IH3.9844 SAD-31001975–1990
CASE IH3.9844 SA4-206-26801975–1990
CASE IH3.9844 SAD-38501975–1990
CASE IH4.3844 AD-24601986–1990
CASE IH4.4844D-26801986–1990
CASE IH4.4844 SD-26801986–1990
CASE IH4.4844 SAD-26801986–1990
CASE IH5.1431D-31001986–
CASE IH5.91046D-35801971–1977
CASE IH5.91055D-35801981–1982
CASE IH5.91056D-35801981–1989
CASE IH5.91056 XLD-35801981–1989
CASE IH5.9531D-35801986–1986
CASE IH5.9955D-35801981–1993
CASE IH5.9955 AD-35801981–1993
CASE IH5.9955 XLAD-35801981–1993
INTERNATIONAL HARV.1046CM-SeriesD-35899-1011971–1977
INTERNATIONAL HARV.1046 ACM-SeriesD-35899-1011971–1977
INTERNATIONAL HARV.1055C-SeriesD-35899-1011977–1982
INTERNATIONAL HARV.1055 AC-SeriesD-35899-1011977–1982
INTERNATIONAL HARV.1055 XLAC-SeriesD-35899-1011981–1982
INTERNATIONAL HARV.1056 XLC-SeriesD-3581051982–1992
INTERNATIONAL HARV.1056 XLAC-SeriesD-3581051982–1992
INTERNATIONAL HARV.1246CM-SeriesDT-3581201972–1979
INTERNATIONAL HARV.1246 ACM-SeriesDT-3581201972–1979
INTERNATIONAL HARV.433, 433 EA-SeriesD-155351975–1990
INTERNATIONAL HARV.453 VCM-SeriesD-155451971–1975
INTERNATIONAL HARV.453, 453 ECM-SeriesD-155451971–1975
INTERNATIONAL HARV.533 AA-SeriesD-155451975–1990
INTERNATIONAL HARV.533, 533 EA-SeriesD-155451975–1990
INTERNATIONAL HARV.554B-SeriesD-206541974–1975
INTERNATIONAL HARV.554 AB-SeriesD-206541974–1975
INTERNATIONAL HARV.633 A, 633 EAA-SeriesD-179521975–1989
INTERNATIONAL HARV.633 VA-SeriesD-179521976–1987
INTERNATIONAL HARV.633, 633 EA-SeriesD-179521975–1989
INTERNATIONAL HARV.644B-SeriesD-206601974–1980
INTERNATIONAL HARV.644 AB-SeriesD-206601974–1980
INTERNATIONAL HARV.654CM-SeriesD-206601972–1974
INTERNATIONAL HARV.654 ACM-SeriesD-206601972–1974
INTERNATIONAL HARV.724CM-SeriesD-239671969–1974
INTERNATIONAL HARV.724 ACM-SeriesD-239671969–1974
INTERNATIONAL HARV.733 A, 733 EAA-SeriesD-206601980–1989
INTERNATIONAL HARV.733, 733 EA-SeriesD-206601980–1989
INTERNATIONAL HARV.743743D-239671980–1989
INTERNATIONAL HARV.743A743D-239671980–1989
INTERNATIONAL HARV.743XL743D-239671981–1989
INTERNATIONAL HARV.743XLA743D-239671981–1989
INTERNATIONAL HARV.744B-SeriesD-23967-711974–1980
INTERNATIONAL HARV.744 AB-SeriesD-23967-711974–1980
INTERNATIONAL HARV.745 SCM-SeriesD-239721980–1989
INTERNATIONAL HARV.745 SACM-SeriesD-239721980–1989
INTERNATIONAL HARV.824CM-SeriesD-239741971–1973
INTERNATIONAL HARV.824 ACM-SeriesD-239741971–1973
INTERNATIONAL HARV.833 AA-SeriesD-239671981–1989
INTERNATIONAL HARV.844S844D-268801975–1989
INTERNATIONAL HARV.844SA844D-268801975–1989
INTERNATIONAL HARV.844XLA844D-268801981–1990
INTERNATIONAL HARV.856XL856DT-239851983–1991
INTERNATIONAL HARV.856XLA856DT-239851983–1991
INTERNATIONAL HARV.955C-SeriesD-35884-901979–1982
INTERNATIONAL HARV.955 AC-SeriesD-35884-901979–1982
INTERNATIONAL HARV.955 XLC-SeriesD-358901981–1982
INTERNATIONAL HARV.955 XLAC-SeriesD-358901981–1982
