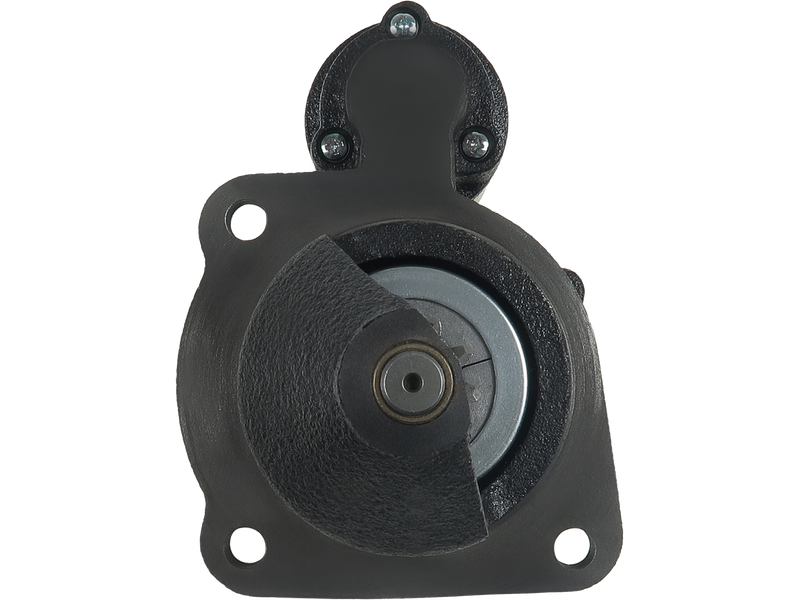

AS-PL S9522S Startmotor — ZETOR

AS-PL S9522S Startmotor — ZETOR

1 602,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 291.00
O.1 [ mm ] 127.00
O.2 [ mm ] 90.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00
AS-PLSTANDARD LINE
EAN5902129244301
ErsätterISKRA / LETRIKA
OE-nummerAZE4205

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9522S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: AZE4205

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 48.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 291.00
O.1 [ mm ] 127.00
O.2 [ mm ] 90.00
O.3 [ mm ] 90.00
C.1 [ mm ] 11.00
C.2 [ mm ] 11.00
C.3 [ mm ] 11.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ZETOR100, 110Forterra95-1062008–
ZETOR110, 120Proxima106-1172013–
ZETOR115, 125ForterraZ1405110-1222011–2013
ZETOR115, 125ForterraZ1505110-1222011–2013
ZETOR120, 130ForterraZ1506117-1262008–
ZETOR140ForterraZ16061362008–
ZETOR150ForterraZ17061472008–
ZETOR70, 80Proxima65-762013–
ZETOR70, 80Proxima65-762013–
ZETOR80MajorZ1105762012–
ZETOR8641ForterraZ1203822001–2008
ZETOR90, 100Proxima87-952013–
ZETOR90, 100Proxima87-952013–
ZETOR95, 105ForterraZ130590-1012011–2012
ZETOR95, 105ForterraZ100590-1012011–2012
ZETOR9641ForterraZ1003922001–2008
