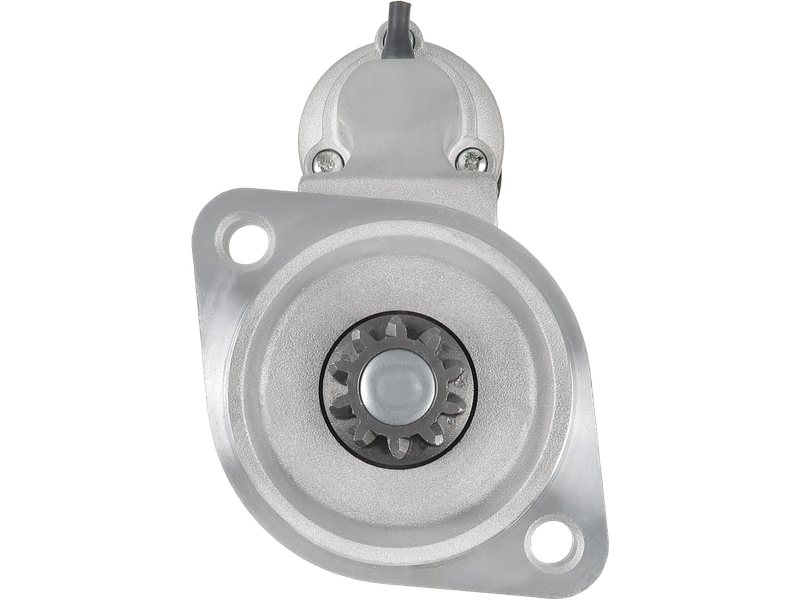

AS-PL S9528S Startmotor — JOHN DEERE

AS-PL S9528S Startmotor — JOHN DEERE

2 133,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 82.00
B-storlek [ mm ] 35.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 272.00
O.1 [ mm ] 105.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
AS-PLSTANDARD LINE
EAN5902129240709
ErsätterISKRA / LETRIKA
OE-nummerAZE4654

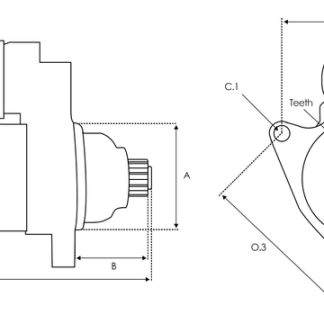

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9528S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: AZE4654

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 82.00
B-storlek [ mm ] 35.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 272.00
O.1 [ mm ] 105.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
JOHN DEERE5070MSeries 569-712011–
JOHN DEERE5080MSeries 54045HAT80802011–
JOHN DEERE5080RSeries 54045HL284802011–
JOHN DEERE5080RSeries 54045HAT80802011–
JOHN DEERE5085GF, 5085GL, 5085GN, 5085GVSeries 5852009–
JOHN DEERE5090GSeries 54045HAT81902011–
JOHN DEERE5090M, 5095MSeries 54045HAT8190-912011–
JOHN DEERE5090M, 5095MSeries 54045HL28690-912011–
JOHN DEERE5090RSeries 54045HL284902011–
JOHN DEERE5090RSeries 54045HAT81902011–
JOHN DEERE5100MSeries 54045HL28699-1012011–
JOHN DEERE5100MSeries 54045HAT8299-1012011–
JOHN DEERE5100MSeries 54045HAT8299-1012011–
JOHN DEERE5100MSeries 54045HL28699-1012011–
JOHN DEERE5100RSeries 54045HAT8299-1012011–
JOHN DEERE5115MSeries 5852013–
