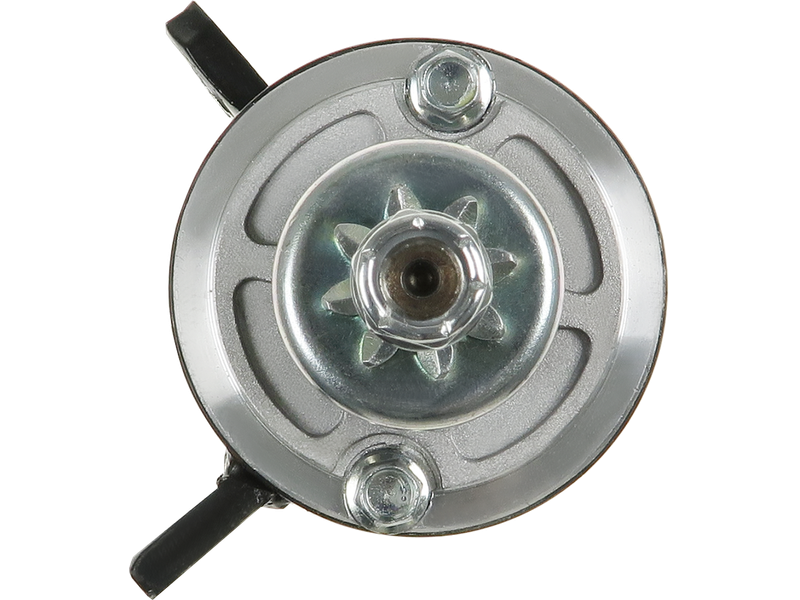

AS-PL S9559S Startmotor — JOHNSON, EVINRUDE

629,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: PRESTOLITE

Spänning [ V ] 12
Effekt [ kW ] 0.90
Startmotors rotation ACW
B-storlek [ mm ] 44.50
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 252.00
O.1 [ mm ] 79.00
O.2 [ mm ] 127.00
O.3 [ mm ] 164.00
C.1 [ mm ] 9.80
C.2 [ mm ] 7.80
C.3 [ mm ] 9.80
AS-PLSTANDARD LINE
EAN5902129219040
ErsätterPRESTOLITE

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9559S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från PRESTOLITE.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 0.90
Startmotors rotation ACW
B-storlek [ mm ] 44.50
Antal kuggar [ qty. ] 8
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 252.00
O.1 [ mm ] 79.00
O.2 [ mm ] 127.00
O.3 [ mm ] 164.00
C.1 [ mm ] 9.80
C.2 [ mm ] 7.80
C.3 [ mm ] 9.80

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
EVINRUDE2.5E 150149.4ci-150H.P.01977–1979
EVINRUDE2.5E 200149.4ci-200H.P.01977–1979
EVINRUDE2.5E150CX149.4ci-150H.P.01988–1991
EVINRUDE2.5E150STL149.4ci-150H.P.01984–1991
EVINRUDE2.5E150TL149.4ci-150H.P.01984–1991
EVINRUDE2.5E150TRL149.4ci-150H.P.01980–1983
EVINRUDE2.5E150TRX149.4ci-150H.P.01980–1983
EVINRUDE2.5E150TX149.4ci-150H.P.01984–1991
EVINRUDE2.5E155WTL149.4ci-155H.P.01985–1995
EVINRUDE2.5E155WTX149.4ci-155H.P.01985–1995
EVINRUDE2.5E175149.4ci-175H.P.01977–1979
EVINRUDE2.5E175TRL149.4ci-175H.P.01980–1983
EVINRUDE2.5E175TRX149.4ci-175H.P.01980–1983
EVINRUDE2.5E185TL149.4ci-185H.P.01984–1985
EVINRUDE2.5E185TX149.4ci-185H.P.01984–1985
EVINRUDE2.5E200TRL149.4ci-200H.P.01980–1983
EVINRUDE2.5E200TRX149.4ci-200H.P.01980–1983
EVINRUDE2.6E175STL160.3ci-175H.P.01990–1991
EVINRUDE2.6E175TL160.3ci-175H.P.01986–1989
EVINRUDE2.6E175TX160.3ci-175H.P.01985–1991
EVINRUDE2.7E200STL160.3ci-200H.P.01986–1987
EVINRUDE2.7E200TX160.3ci-200H.P.01987–1987
EVINRUDE2.7E225160.3ci-225H.P.01977–1979
EVINRUDE2.7E225CL160.3ci-225H.P.01987–1987
EVINRUDE2.7E225CX160.3ci-225H.P.01987–1987
EVINRUDE2.7E225PL160.3ci-225H.P.01987–1987
EVINRUDE2.7E225PTL160.3ci-225H.P.01986–1986
EVINRUDE2.7E225PTX160.3ci-225H.P.01986–1986
EVINRUDE2.7E225PX160.3ci-225H.P.01987–1987
EVINRUDE2.7E225TL160.3ci-225H.P.01986–1987
EVINRUDE2.7E225TX160.3ci-225H.P.01986–1987
EVINRUDE2.7E235160.3ci-235H.P.01977–1979
EVINRUDE2.7E235STL160.3ci-235H.P.01984–1985
EVINRUDE2.7E235TL160.3ci-235H.P.01984–1985
EVINRUDE2.7E235TRL160.3ci-235H.P.01980–1983
EVINRUDE2.7E235TRX160.3ci-235H.P.01980–1983
EVINRUDE2.7E235TX160.3ci-235H.P.01984–1985
JOHNSON150149.4ci-150H.P.01977–1979
JOHNSON150CX149.4ci-150H.P.01988–1991
JOHNSON150STL149.4ci-150H.P.01984–1990
JOHNSON150TL149.4ci-150H.P.01980–1991
JOHNSON150TRL149.4ci-150H.P.01983–1983
JOHNSON150TRX149.4ci-150H.P.01983–1983
JOHNSON150TX149.4ci-150H.P.01980–1991
JOHNSON155CTL149.4ci-155H.P.01987–1987
JOHNSON155CWTX149.4ci-155H.P.01987–1987
JOHNSON155WTL149.4ci-155H.P.01985–1992
JOHNSON155WTLM149.4ci-155H.P.01988–1988
JOHNSON155WTLZ149.4ci-155H.P.01989–1989
JOHNSON155WTX149.4ci-155H.P.01985–1992
JOHNSON155WTXM149.4ci-155H.P.01988–1988
JOHNSON155WTXZ149.4ci-155H.P.01989–1989
JOHNSON175149.4ci-175H.P.01977–1979
JOHNSON175STL160.3ci-175H.P.01990–1991
JOHNSON175TL160.3ci-175H.P.01986–1989
JOHNSON175TL149.4ci-175H.P.01980–1982
JOHNSON175TRL149.4ci-175H.P.01983–1983
JOHNSON175TRX149.4ci-175H.P.01983–1983
JOHNSON175TX160.3ci-175H.P.01986–1991
JOHNSON175TX149.4ci-175H.P.01980–1981
JOHNSON175TXL149.4ci-175H.P.01982–1982
JOHNSON185TL149.4ci-185H.P.01984–1985
JOHNSON185TX149.4ci-185H.P.01984–1985
JOHNSON200149.4ci-200H.P.01977–1979
JOHNSON200STL160.3ci-200H.P.01986–1986
JOHNSON200TL149.4ci-200H.P.01980–1982
JOHNSON200TRL149.4ci-200H.P.01983–1983
JOHNSON200TRX149.4ci-200H.P.01983–1983
JOHNSON200TX149.4ci-200H.P.01980–1981
JOHNSON200TXL149.4ci-200H.P.01982–1982
JOHNSON225160.3ci-225H.P.01977–1979
JOHNSON225CL165.0ci-225H.P.01987–1987
JOHNSON225CX165.0ci-225H.P.01987–1987
JOHNSON225PL165.0ci-225H.P.01987–1987
JOHNSON225PTL160.3ci-225H.P.01986–1986
JOHNSON225PTX160.3ci-225H.P.01986–1986
JOHNSON225PX165.0ci-225H.P.01987–1987
JOHNSON225TL160.3ci-225H.P.01986–1986
JOHNSON225TL165.0ci-225H.P.01987–1987
JOHNSON225TX165.0ci-225H.P.01987–1987
JOHNSON225TX160.3ci-225H.P.01986–1986
JOHNSON235STL160.3ci-235H.P.01984–1985
JOHNSON235TL160.3ci-235H.P.01980–1985
JOHNSON235TRL160.3ci-235H.P.01983–1983
JOHNSON235TRX160.3ci-235H.P.01983–1983
JOHNSON235TX160.3ci-235H.P.01980–1985
JOHNSON235TXL160.3ci-235H.P.01982–1982
