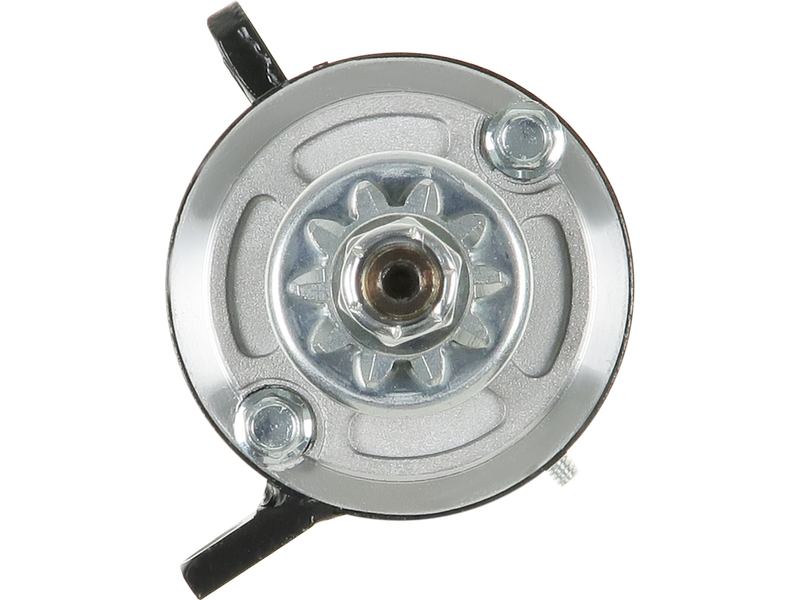

AS-PL S9564S Startmotor — EVINRUDE, JOHNSON

629,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: PRESTOLITE

Spänning [ V ] 12
Effekt [ kW ] 0.60
Startmotors rotation ACW
B-storlek [ mm ] 44.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 227.00
O.1 [ mm ] 122.00
O.2 [ mm ] 70.00
O.3 [ mm ] 84.00
C.1 [ mm ] 9.00
C.2 [ mm ] 8.00
C.3 [ mm ] 10.00
AS-PLSTANDARD LINE
EAN5902129219101
ErsätterPRESTOLITE

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9564S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från PRESTOLITE.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 0.60
Startmotors rotation ACW
B-storlek [ mm ] 44.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 227.00
O.1 [ mm ] 122.00
O.2 [ mm ] 70.00
O.3 [ mm ] 84.00
C.1 [ mm ] 9.00
C.2 [ mm ] 8.00
C.3 [ mm ] 10.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
EVINRUDE1.6E10099.6ci-100H.P.01969–1979
EVINRUDE1.6E100ML99.6ci-100H.P.01980–1980
EVINRUDE1.6E100STL99.6ci-100H.P.01989–1990
EVINRUDE1.6E100STL XP99.6ci-100H.P.01991–1993
EVINRUDE1.6E100TL99.6ci-100H.P.01980–1980
EVINRUDE1.6E100TX99.6ci-100H.P.01980–1980
EVINRUDE1.6E100WML99.6ci-100H.P.01985–1986
EVINRUDE1.6E100WTL Commercial99.6ci-100H.P.01992–1997
EVINRUDE1.6E100WTL Super99.6ci-100H.P.01985–1991
EVINRUDE1.6E100WTX Commercial99.6ci-100H.P.01992–1997
EVINRUDE1.6E100WTX Super99.6ci-100H.P.01986–1991
EVINRUDE1.6E110ML99.6ci-110H.P.01986–1989
EVINRUDE1.6E110TL99.6ci-110H.P.01986–1989
EVINRUDE1.6E110TX99.6ci-110H.P.01987–1989
EVINRUDE1.6E112TSL99.6ci-112H.P.01994–1996
EVINRUDE1.6E112TSX99.6ci-112H.P.01994–1996
EVINRUDE1.6E11599.6ci-115H.P.01973–1979
EVINRUDE1.6E115J99.6ci-115H.P.01991–1993
EVINRUDE1.6E115JKL99.6ci-115H.P.01994–1995
EVINRUDE1.6E115JL99.6ci-115H.P.01994–1997
EVINRUDE1.6E115ML99.6ci-115H.P.01980–1984
EVINRUDE1.6E115TL99.6ci-115H.P.01980–1985
EVINRUDE1.6E115TX99.6ci-115H.P.01980–1984
EVINRUDE1.6E14099.6ci-140H.P.01973–1979
EVINRUDE1.6E140ML99.6ci-140H.P.01980–1980
EVINRUDE1.6E140TL99.6ci-140H.P.01984–1984
EVINRUDE1.6E140TRL99.6ci-140H.P.01980–1983
EVINRUDE1.6E140TRX99.6ci-140H.P.01980–1983
EVINRUDE1.6E140TX99.6ci-140H.P.01984–1984
EVINRUDE1.6E8599.6ci-85H.P.01964–1979
EVINRUDE1.6E85ML99.6ci-85H.P.01980–1980
EVINRUDE1.6E85TL99.6ci-85H.P.01980–1980
EVINRUDE1.6E85TTL99.6ci-85H.P.01991–1995
EVINRUDE1.6E85TX99.6ci-85H.P.01980–1980
EVINRUDE1.6E88MSL99.6ci-88H.P.01987–1996
EVINRUDE1.6E88TSL99.6ci-88H.P.01994–1996
EVINRUDE1.6E9099.6ci-90H.P.01970–1977
EVINRUDE1.6E90ML99.6ci-90H.P.01981–1986
EVINRUDE1.6E90TL99.6ci-90H.P.01981–1995
EVINRUDE1.6E90TSL99.6ci-90H.P.01996–1998
EVINRUDE1.6E90TX99.6ci-90H.P.01981–1986
EVINRUDE1.7E115TSL105.4ci-115H.P.01997–1998
EVINRUDE1.7E115TSX105.4ci-115H.P.01997–1998
EVINRUDE1.8E125110ci-125H.P.01973–1977
EVINRUDE2.0E135122ci-135H.P.01973–1977
JOHNSON10099.6ci-100H.P.01969–1979
JOHNSON100CTL99.6ci-100H.P.01987–1987
JOHNSON100CWTX99.6ci-100H.P.01987–1987
JOHNSON100ML99.6ci-100H.P.01980–1980
JOHNSON100STL99.6ci-100H.P.01989–1995
JOHNSON100TRL99.6ci-100H.P.01980–1980
JOHNSON100TRX99.6ci-100H.P.01980–1980
JOHNSON100WML99.6ci-100H.P.01985–1986
JOHNSON100WT99.6ci-100H.P.01985–1997
JOHNSON110ML99.6ci-110H.P.01986–1989
JOHNSON110TL99.6ci-110H.P.01986–1989
JOHNSON110TX99.6ci-110H.P.01987–1989
JOHNSON112TSL99.6ci-112H.P.01994–1996
JOHNSON11599.6ci-115H.P.01973–1979
JOHNSON115J Jet99.6ci-80H.P.01991–1997
JOHNSON115ML99.6ci-115H.P.01980–1984
JOHNSON115TL99.6ci-115H.P.01980–1996
JOHNSON115TSL99.6ci-115H.P.01997–1998
JOHNSON115TSX99.6ci-115H.P.01997–1998
JOHNSON115TX99.6ci-115H.P.01980–1985
JOHNSON125110ci-125H.P.01973–1977
JOHNSON135122.0ci-135H.P.01973–1977
JOHNSON14099.6ci-140H.P.01973–1979
JOHNSON140ML99.6ci-140H.P.01980–1980
JOHNSON140TL99.6ci-140H.P.01980–1984
JOHNSON140TRL99.6ci-140H.P.01983–1983
JOHNSON140TRX99.6ci-140H.P.01983–1983
JOHNSON140TX99.6ci-140H.P.01980–1984
JOHNSON140TXL99.6ci-140H.P.01982–1982
JOHNSON8599.6ci-85H.P.01964–1979
JOHNSON85ML99.6ci-85H.P.01980–1980
JOHNSON85TL99.6ci-85H.P.01980–1980
JOHNSON85TTL99.6ci-85H.P.01991–1995
JOHNSON88MSL99.6ci-88H.P.01987–1996
JOHNSON88TSL99.6ci-88H.P.01994–1996
JOHNSON9099.6ci-90H.P.01970–1977
JOHNSON90J99.6ci-65H.P.01991–1995
JOHNSON90ML99.6ci-90H.P.01981–1986
JOHNSON90TL99.6ci-90H.P.01981–1994
JOHNSON90TSL99.6ci-90H.P.01997–1998
JOHNSON90TX99.6ci-90H.P.01981–1986
JOHNSON90TXL99.6ci-90H.P.01982–1982
