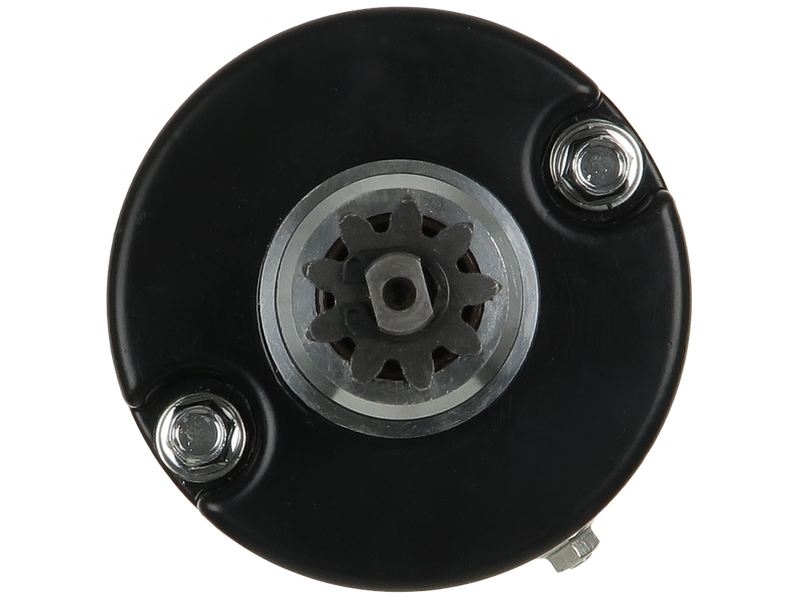

AS-PL S9746S Startmotor — BOMBARDIER, JOHN DEERE

490,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MITSUBA

Spänning [ V ] 12
Effekt [ kW ] 0.70
Startmotors rotation ACW
B-storlek [ mm ] 39.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 209.00
O.1 [ mm ] 25.00
O.2 [ mm ] 45.00
O.3 [ mm ] 25.00
C.1 [ mm ] 7.00
C.2 [ mm ] M6x1.0
C.3 [ mm ] 7.00
AS-PLSTANDARD LINE
EAN5902129223085
ErsätterMITSUBA

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9746S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBA.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 0.70
Startmotors rotation ACW
B-storlek [ mm ] 39.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 1
L.1 [ mm ] 209.00
O.1 [ mm ] 25.00
O.2 [ mm ] 45.00
O.3 [ mm ] 25.00
C.1 [ mm ] 7.00
C.2 [ mm ] M6x1.0
C.3 [ mm ] 7.00

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
BOMBARDIERQuest 500 2x2498cc02002–2004
BOMBARDIERQuest 500 4x4498cc02002–2004
BOMBARDIERQuest 500 XT498cc02002–2004
BOMBARDIERQuest 650644cc02002–2004
BOMBARDIERQuest 650 XT644cc02002–2004
BOMBARDIERQuest Max 650644cc02004–2004
BOMBARDIERTraxter 500 CVT498cc02005–2005
BOMBARDIERTraxter 650 Auto CVT644cc02005–2005
BOMBARDIERTraxter 650 Max Auto CVT644cc02005–2005
JOHN DEEREBuck Auto 4-TEC500cc02005–2007
JOHN DEEREBuck Auto 4-TEC650cc02005–2007
JOHN DEERETrail Buck 4-TEC650cc02005–2006
JOHN DEERETrail Buck 4-TEC500cc02005–2006
