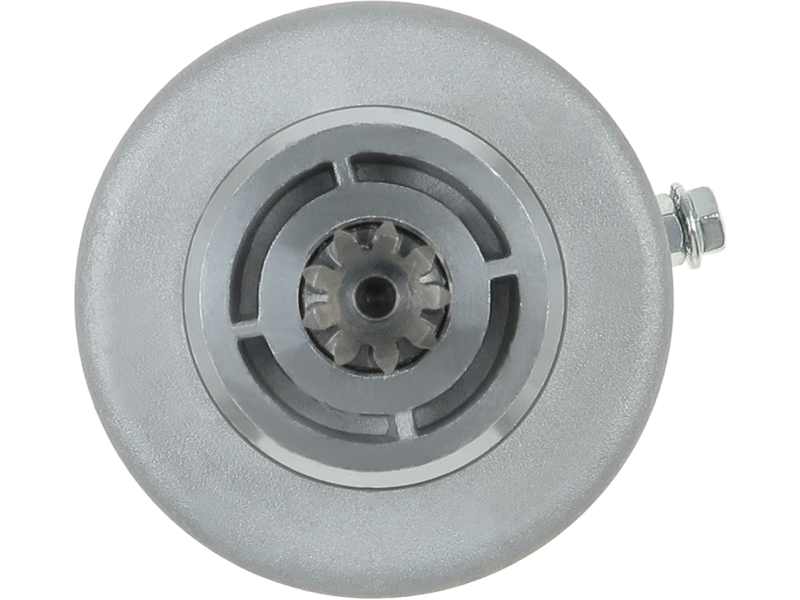

AS-PL S9801S Startmotor — ARCTIC CAT

AS-PL S9801S Startmotor — ARCTIC CAT

422,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: MITSUBA

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation CW
B-storlek [ mm ] 46.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 177.00
O.1 [ mm ] 34.00
C.1 [ mm ] 6.50
C.2 [ mm ] 6.50
AS-PLSTANDARD LINE
EAN5902129232902
ErsätterMITSUBA

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9801S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från MITSUBA.

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 1.10
Startmotors rotation CW
B-storlek [ mm ] 46.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 2
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 177.00
O.1 [ mm ] 34.00
C.1 [ mm ] 6.50
C.2 [ mm ] 6.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ARCTIC CAT550545cc02013–2013
ARCTIC CAT550 GT545cc02012–2012
ARCTIC CAT550 H1 EFI545cc02009–2011
ARCTIC CAT550 LTD545cc02012–2015
ARCTIC CAT550 TRV545cc02009–2012
ARCTIC CAT550 TRV Alterra XT EPS545cc02017–2017
ARCTIC CAT550 TRV Cruiser545cc02012–2012
ARCTIC CAT550 TRV GT545cc02011–2012
ARCTIC CAT550 TRV LTD545cc02013–2014
ARCTIC CAT550 TRV XT545cc02013–2014
ARCTIC CAT550 XR545cc02015–2015
ARCTIC CAT550 XR LTD545cc02015–2015
ARCTIC CAT550 XR XT545cc02015–2015
ARCTIC CAT550 XT545cc02013–2015
ARCTIC CAT550S H1 EFI545cc02010–2011
ARCTIC CAT650641cc02012–2012
ARCTIC CAT650 4x4 Automatic641cc02009–2010
ARCTIC CAT650 4x4 Automatic Mud Pro641cc02010–2010
ARCTIC CAT650 H1641cc02011–2011
ARCTIC CAT650 H1 4x4 Automatic641cc02008–2010
ARCTIC CAT650 H1 4x4 FIS641cc02008–2008
ARCTIC CAT650 H1 4x4 TRV641cc02008–2008
ARCTIC CAT650 H1 TBX641cc02009–2009
ARCTIC CAT650 H1 TRV641cc02007–2009
ARCTIC CAT650 Mud Pro641cc02010–2012
ARCTIC CAT650 TBX641cc02009–2009
ARCTIC CAT650 TRV641cc02009–2009
ARCTIC CAT700695cc02011–2014
ARCTIC CAT700 Alterra XT EPS695cc02017–2017
ARCTIC CAT700 GT695cc02011–2012
ARCTIC CAT700 H1 EFI695cc02008–2011
ARCTIC CAT700 H1 EFI LE695cc02009–2009
ARCTIC CAT700 H1 EFI Mud Pro695cc02009–2011
ARCTIC CAT700 H1 EFI TBX695cc02010–2010
ARCTIC CAT700 LTD695cc02011–2014
ARCTIC CAT700 Mud Pro695cc02011–2013
ARCTIC CAT700 Mud Pro LTD695cc02014–2015
ARCTIC CAT700 Mud Pro LTD695cc02012–2012
ARCTIC CAT700 Mud Pro LTD EPS695cc02017–2017
ARCTIC CAT700 TBX695cc02012–2015
ARCTIC CAT700 TBX EPS695cc02017–2017
ARCTIC CAT700 TBX GT695cc02012–2012
ARCTIC CAT700 TRV695cc02007–2012
ARCTIC CAT700 TRV Alterra XT EPS695cc02017–2017
ARCTIC CAT700 TRV Cruiser695cc02009–2011
ARCTIC CAT700 TRV GT695cc02012–2012
ARCTIC CAT700 TRV LTD695cc02013–2015
ARCTIC CAT700 TRV XT695cc02013–2015
ARCTIC CAT700 XR695cc02015–2015
ARCTIC CAT700 XR LTD695cc02015–2015
ARCTIC CAT700 XR XT695cc02015–2015
ARCTIC CAT700 XT695cc02013–2014
ARCTIC CAT700S H1 EFI695cc02010–2011
ARCTIC CAT700S H1 EFI LE695cc02010–2010
ARCTIC CAT700S H1 EFI TBX695cc02011–2011
ARCTIC CAT700S H1 EFI TRV695cc02010–2010
ARCTIC CAT700S TRV Cruiser695cc02011–2011
ARCTIC CATHDX 700 XT695cc02016–2017
ARCTIC CATHDX 700 XT Crew695cc02017–2017
ARCTIC CATProwler 1000 XT952cc02015–2015
ARCTIC CATProwler 1000 XTZ951cc02008–2013
ARCTIC CATProwler 550545cc02009–2012
ARCTIC CATProwler 550 XT545cc02010–2015
ARCTIC CATProwler 650641cc02006–2009
ARCTIC CATProwler 650 XT641cc02008–2009
ARCTIC CATProwler 700 HDX695cc02011–2014
ARCTIC CATProwler 700 HDX XT695cc02015–2016
ARCTIC CATProwler 700 XT695cc02015–2017
ARCTIC CATProwler 700 XT695cc02008–2009
ARCTIC CATProwler 700 XTX695cc02008–2014
ARCTIC CATThundercat951cc02008–2010
ARCTIC CATThundercat H2951cc02008–2010
