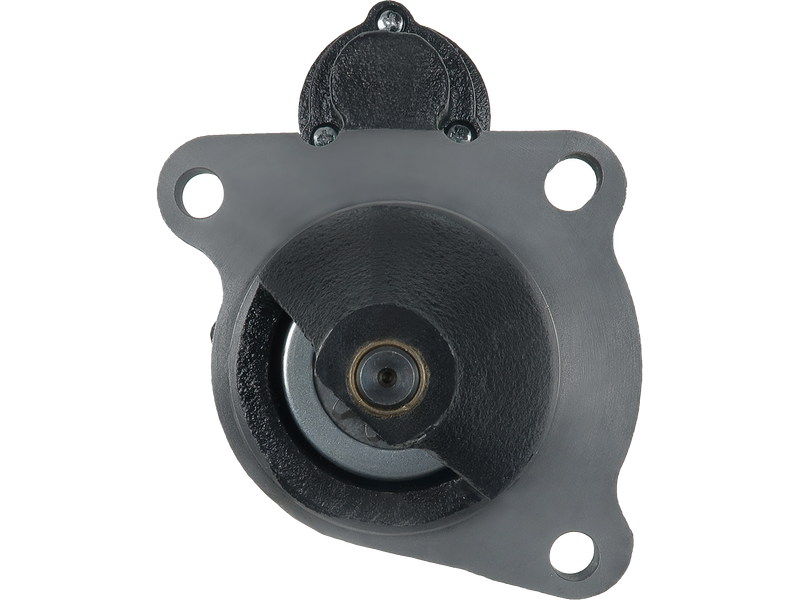

AS-PL S9901S Startmotor — MASSEY FERGUSON, CASE IH, IMT

AS-PL S9901S Startmotor — MASSEY FERGUSON, CASE IH, IMT

1 600,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 91.50
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 299.00
O.1 [ mm ] 104.00
O.2 [ mm ] 104.00
O.3 [ mm ] 147.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50
AS-PLSTANDARD LINE
EAN5902129242550
ErsätterISKRA / LETRIKA
OE-nummerAZE4249

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9901S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: AZE4249

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 91.50
B-storlek [ mm ] 28.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 299.00
O.1 [ mm ] 104.00
O.2 [ mm ] 104.00
O.3 [ mm ] 147.00
C.1 [ mm ] 13.50
C.2 [ mm ] 13.50
C.3 [ mm ] 13.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
CASE IH48, 48ACS903-27481996–
CASE IH52CS903-27T522001–2004
CASE IH52CS903-27T522001–2004
CASE IH58, 58ACS903-27T581998–
CASE IH63CS903-27T632001–2004
CASE IH63CS903-27T632001–2004
IMT2.5542M33T0–
IMT2.5546DM33/T0–
IMT2.5549DM33/T0–
IMT3.3565DM34T0–
MASSEY FERGUSONMF 13301969–
MASSEY FERGUSONMF 135 VAD3.15201969–
MASSEY FERGUSONMF 14001969–
MASSEY FERGUSONMF 145 S01969–
MASSEY FERGUSONMF 145 V01983–1984
MASSEY FERGUSONMF 15201971–1983
MASSEY FERGUSONMF 152 S01983–1986
MASSEY FERGUSONMF 152 V01983–1989
MASSEY FERGUSONMF 155AD4.20301969–
MASSEY FERGUSONMF 158AD4.20301969–
MASSEY FERGUSONMF 165AD4.20301969–1976
MASSEY FERGUSONMF 230AD3.15201983–
MASSEY FERGUSONMF 23501977–
MASSEY FERGUSONMF 240AD3.15201979–1988
MASSEY FERGUSONMF 250AD3.15201983–1986
MASSEY FERGUSONMF 255AD3.15201977–1988
MASSEY FERGUSONMF 26001975–
MASSEY FERGUSONMF 350AD3.15201987–
MASSEY FERGUSONMF 355AT3.15201987–
MASSEY FERGUSONMF 360AT3.15201987–
MASSEY FERGUSONMF 535A6.354.401977–
MASSEY FERGUSONMF 550AD3.15201976–1982
MASSEY FERGUSONMF 560AT6.354.401980–1982
MASSEY FERGUSON2.5MF 24501977–1988
URSUS38220–
URSUS2.52802AD3.152VR0–
URSUS2.53502AD3.152VR0–
