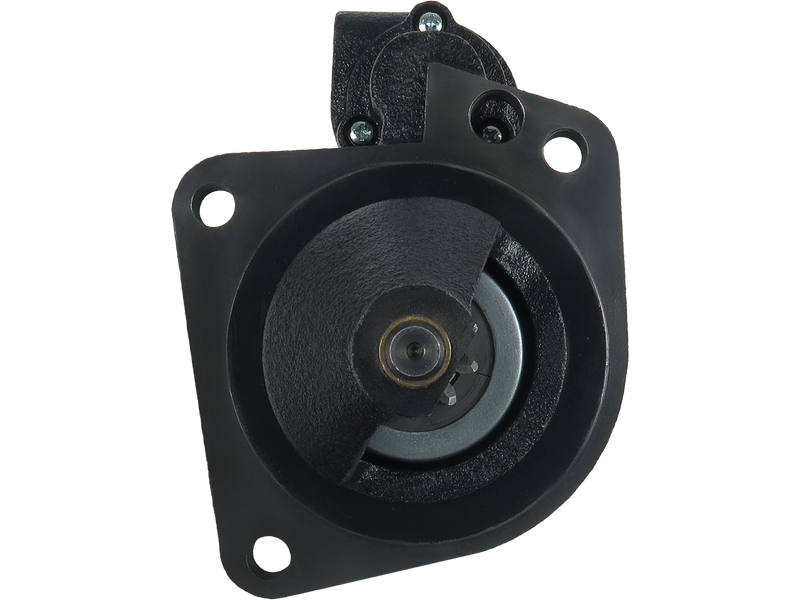

AS-PL S9909S Startmotor — UTB, FIAT, FARYMANN

1 600,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 3.00
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 277.00
O.1 [ mm ] 146.00
O.2 [ mm ] 102.,00
O.3 [ mm ] 102.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.50
C.3 [ mm ] 12.50
AS-PLSTANDARD LINE
EAN5902129245650
ErsätterISKRA / LETRIKA
OE-nummerAZE4242

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9909S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: AZE4242

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.00
Startmotors rotation CW
A-storlek [ mm ] 110.00
B-storlek [ mm ] 27.00
Antal kuggar [ qty. ] 9
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 277.00
O.1 [ mm ] 146.00
O.2 [ mm ] 102.,00
O.3 [ mm ] 102.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.50
C.3 [ mm ] 12.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
ARO243D127.005/0080
ARO244D127.005/0080
FARYMANN71W01978–1979
FARYMANN95W01978–1979
FARYMANNP3001972–1979
FIAT4020
FIAT4040
FIAT404 DT0
FIAT420 DT0
FIAT440 DT0
FIAT440 V0
FIAT450 DAL0
FIAT450 DT0
FIAT455 C0
FIAT455 DAL0
FIAT470 DT0
FIAT470 DTS0
FIAT480 8DT0
FIAT480 S0
FIAT480 V0
FIAT500 S0
GOLDONI1045 R01982–
UTB550 DT0
UTB550 DTC0
UTB550 DTC-V0
UTB550 U0
UTB1.626001983–2003
UTB1.834001987–1991
UTB2.3350 DTD-12401984–1991
UTB2.3350 DTCD-12401984–1991
UTB2.3350 UD-12401984–1991
UTB2.3445 DTD.11501974–1981
UTB2.3445 DTCD.11501974–1981
UTB2.3445 HCPD.11501974–1985
UTB2.3445 UD.11501974–1981
UTB2.3453 DTD.115.00001984–2004
UTB2.3453 DTCD.115.00001984–2004
UTB2.3453 DTPD.115.00001984–2004
UTB2.3500D.115.00801974–1981
UTB2.4533 DTCD.11501988–2001
UTB2.4533 DTPD.11501988–2001
UTB2.4533 UD.11501988–2001
UTB2.7530 DTCD-115.05001982–1985
UTB2.7530 SID-115.05001982–1985
UTB2.7532D.115.05001985–1988
UTB2.7533 DTD.115.05001989–2004
UTB2.8483230201985–2004
UTB2.8523 DTC01985–2004
UTB2.8523 DTP01985–2004
UTB2.8523 U01985–2004
UTB3.1550D.12101974–1981
UTB3.1553D.121.00001988–2001
UTB3.1600D.12101974–1982
UTB3.2643 DT01988–2002
UTB3.2643 DTC01988–2002
UTB3.2643 U01988–2002
UTB3.6640 DTCD-121.05001982–1985
UTB3.6640 UD-121.05001982–1985
UTB3.6642D.115.05001985–1988
UTB3.66432402.00501992–2004
UTB3.6740D.121.05301985–1988
UTB3.8683 DTC2404.055001995–2004
UTB3.8683 DTP2404.055001995–2004
UTB3.8683 U2404.055001995–2004
UTB3.8703 DT2404.05001988–2004
UTB3.8703 U2404.05001988–2004
UTB3.88332404.062T01994–2004
UTB5.41010 DTD.261.0500
UTB5.4850D.2601.00001984–1988
