AS-PL S9964S Startmotor — LANDINI, MCCORMICK

1 508,00 kr inkl. moms

STANDARD LINE | Tillverkare: AS-PL | Ersätter: ISKRA / LETRIKA

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 31.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 311.00
O.1 [ mm ] 80.00
O.2 [ mm ] 80.00
O.3 [ mm ] 125.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50
AS-PLSTANDARD LINE
EAN5902129274926
ErsätterISKRA / LETRIKA
OE-nummerIS1348

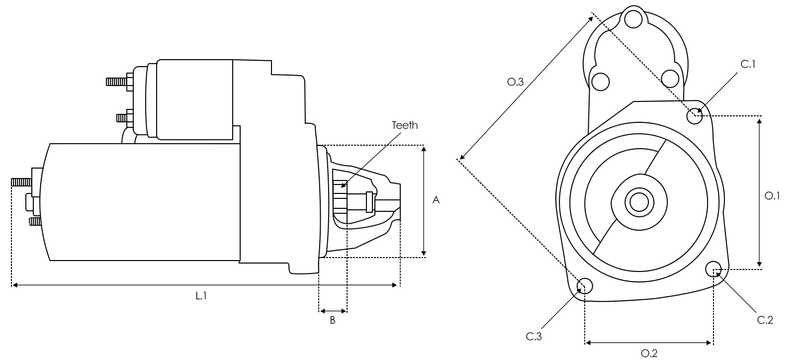

📄 Ladda ner datablad med skiss och mått (PDF)

SKU: S9964S Category: Tags: ,

Description

Denna produkt ersätter originaldelar från ISKRA / LETRIKA.

OE-nummer: IS1348

Specifikationer

Spänning [ V ] 12
Effekt [ kW ] 3.20
Startmotors rotation CW
A-storlek [ mm ] 89.00
B-storlek [ mm ] 31.00
Antal kuggar [ qty. ] 10
Antal hål i huvudet [ qty. ] 3
Antal gängade hål [ qty. ] 0
L.1 [ mm ] 311.00
O.1 [ mm ] 80.00
O.2 [ mm ] 80.00
O.3 [ mm ] 125.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50

Fordonskompatibilitet

MärkeModellTypMotorHkBränsleÅr
LANDINI5-090D, 5-100DSeries 585-952010–
LANDINI5-090D, 5-100DSeries 585-952010–
LANDINI5-100H, 5-110HSeries 51104D-44TA92-1022010–
LANDINI5-100H, 5-110HSeries 51104D-44TA92-1022010–
LANDINI5-110DSeries 51022010–
LANDINI5-110DSeries 51022010–
LANDINI5.115HSeries 51104D-44TA1102010–
MCCORMICK120 XLF Series1104D-44TA1102009–
MCCORMICK80 FF Series1104D-44742009–
MCCORMICK80 XLF Series1104D-44742009–
MCCORMICKX50.20, X50.30X50854E-E34TA89-952012–
MCCORMICKX50.40, X50.50X50854E-E34TA105-1132012–
