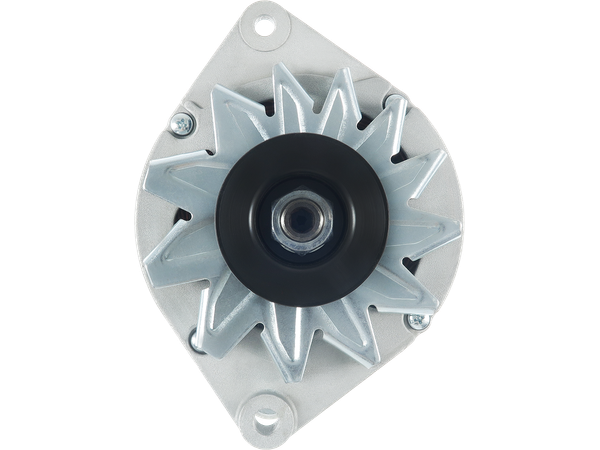

A01389S
Generatorer
STANDARD LINE
1254 kr
Köp nu
| EAN | 5902129265047 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0120489173 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 55 |
| A-storlek [ mm ] | 63.00 |
| B-storlek [ mm ] | 27.00 |
| C-storlek [ mm ] | 66.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 42.00 |
| O.D.2 [ mm ] | 65.00 |
| W.1 [ mm ] | 10.00 |
| Remskiva | AP |
| D.1 [ mm ] | 8.50 |
| D.2 [ mm ] | 10.50 |
| D.3 [ mm ] | 11.00 |
| L.1 [ mm ] | 174.00 |
| Plug | PL_9104 |
Passar i 33 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| PEUGEOT | 1.9 D | 504 Pickup (E_) | XD4x88 | 54 | Diesel | 1980–1989 |
| PEUGEOT | 1.9 D | 504 Pickup (E_) | XD4x88 | 56 | Diesel | 1981–1986 |
| PEUGEOT | 2.1 D | 504 (A_, M_) | XD90 | 58 | Diesel | 1979–1982 |
| PEUGEOT | 2.1 D | 504 (A_, M_) | XD4x90 | 67 | Diesel | 1979–1982 |
| PEUGEOT | 2.1 D | J9 Van | XDPX90 | 56 | Diesel | 1980–1987 |
| PEUGEOT | 2.1 D (A20, M20) | 504 (A_, M_) | XD4x90 | 65 | Diesel | 1971–1986 |
| PEUGEOT | 2.1 D (E20, F20) | 504 Break (D_, F_) | XD4x90 | 65 | Diesel | 1971–1986 |
| PEUGEOT | 2.3 D | 504 | 70 | Diesel | 1987–2000 | |
| PEUGEOT | 2.3 D | 504 Pickup (E_) | 134(XD2) | 69 | Diesel | 1980–1989 |
| PEUGEOT | 2.3 D | 505 (551A) | XD2 | 69 | Diesel | 1979–1984 |
| PEUGEOT | 2.3 D | 505 Break (551D) | XD2 | 69 | Diesel | 1982–1984 |
| PEUGEOT | 2.3 D | J9 Bus | XD2PX94 | 67 | Diesel | 1980–1982 |
| PEUGEOT | 2.3 D | J9 Platform/Chassis | XD2PX94 | 67 | Diesel | 1980–1982 |
| PEUGEOT | 2.3 D | J9 Van | XD2PX94 | 67 | Diesel | 1980–1982 |
| PEUGEOT | 2.3 D (A40, A45) | 504 (A_, M_) | 134(XD2) | 69 | Diesel | 1975–1983 |
| PEUGEOT | 2.3 D (D40, F40) | 504 Break (D_, F_) | 134(XD2) | 69 | Diesel | 1975–1986 |
| PEUGEOT | 2.3 Diesel | 505 Break (551D) | 147(XD2S) | 80 | Diesel | 1982–1986 |
| PEUGEOT | 2.3 TD | 604 (561A_) | 147(XD2S) | 80 | Diesel | 1979–1983 |
| PEUGEOT | 2.3 Turbo Diesel | 505 (551A) | 147(XD2S) | 80 | Diesel | 1980–1986 |
| PEUGEOT | 2.5 D | 505 Break (551D) | XD3T | 95 | Diesel | 1985–1991 |
| PEUGEOT | 2.5 D | J9 Bus | XD3P | 72 | Diesel | 1982–1987 |
| PEUGEOT | 2.5 D | J9 Platform/Chassis | XD3P | 72 | Diesel | 1982–1987 |
| PEUGEOT | 2.5 D | J9 Van | XD3P | 72 | Diesel | 1982–1987 |
| PEUGEOT | 2.5 Diesel | 505 (551A) | 155(XD3) | 69 | Diesel | 1981–1990 |
| PEUGEOT | 2.5 Diesel | 505 (551A) | 155(XD3) | 75 | Diesel | 1981–1993 |
| PEUGEOT | 2.5 Diesel | 505 Break (551D) | 155(XD3) | 75 | Diesel | 1983–1993 |
| PEUGEOT | 2.5 Diesel | 505 Break (551D) | 155(XD3) | 70 | Diesel | 1986–1993 |
| PEUGEOT | 2.5 TD | 604 (561A_) | 152A(XD3T) | 90 | Diesel | 1983–1986 |
| PEUGEOT | 2.5 Turbo Diesel | 505 (551A) | 152B(XD3TE) | 105 | Diesel | 1986–1993 |
| PEUGEOT | 2.5 Turbo Diesel | 505 (551A) | XD3T | 95 | Diesel | 1983–1990 |
| PEUGEOT | 2.5 Turbo Diesel | 505 (551A) | 152A(XD3T) | 90 | Diesel | 1983–1993 |
| PEUGEOT | 2.5 Turbo Diesel | 505 Break (551D) | 152B(XD3TE) | 105 | Diesel | 1986–1993 |
| PEUGEOT | 2.5 Turbo Diesel | 505 Break (551D) | 152A(XD3T) | 90 | Diesel | 1985–1987 |
