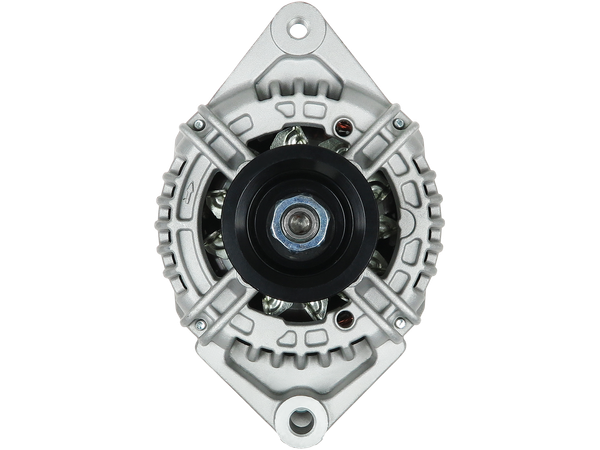

A0698S
Generatorer
STANDARD LINE
1943 kr
Köp nu
| EAN | 5902129108634 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0124355001 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 50 |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 76.00 |
| G [ qty. ] | 8 |
| O.D.1 [ mm ] | 60.00 |
| Remskiva | AP |
| D.1 [ mm ] | 11.00 |
| D.2 [ mm ] | M10x1.5 |
| L.1 [ mm ] | 203.50 |
| Plug | PL_5003 |
Passar i 13 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 865 | 6BTA | 200 | 2002–2007 | ||
| CASE IH | 885 AWD | 6CT | 205 | 2008–2010 | ||
| CASE IH | 140 | MAXXUM | 140 | 2011– | ||
| CASE IH | 5.9 DHP | 865 | QSB | 200 | 2005–2006 | |
| CASE IH | 6.7 | 845 | 6BTA | 160 | 2002–2010 | |
| CASE IH | 67 | 885 | 6CT | 205 | 2007–2010 | |
| JOHN DEERE | 9410R, 9420R | Series 9 | 411-420 | 2011– | ||
| KOMATSU | 5.9 | GD523A | 6BT | 110 | 2003–2005 | |
| KOMATSU | 5.9 | GD623R | 6BT | 110 | 2003–2005 | |
| KOMATSU | 5.9 | WA180 | 6BT | 110 | 2003–2005 | |
| NEW HOLLAND | 5.9 | RG170B | QSB | 205 | 2005–2015 | |
| NEW HOLLAND | 6.7 | G140 | QSB | 160 | 2006–2015 | |
| NEW HOLLAND | 6.7 | G170 | QSB | 205 | 2006–2015 |
