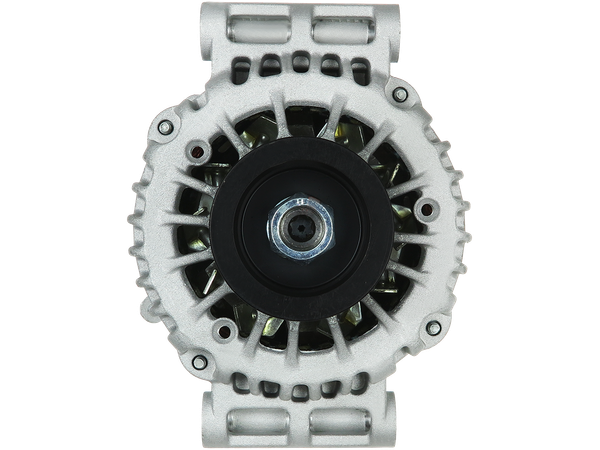

A1091S
Generatorer
STANDARD LINE
2006 kr
Köp nu
| EAN | 5902129149934 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 8600366 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 85 |
| A-storlek [ mm ] | 37.00 |
| C-storlek [ mm ] | 70.50 |
| G [ qty. ] | 8 |
| O.D.1 [ mm ] | 60.00 |
| Remskiva | AP |
| D.1 [ mm ] | 10.50 |
| D.2 [ mm ] | 10.50 |
| D.3 [ mm ] | 12.50 |
| D.4 [ mm ] | 12.50 |
| E.1 [ mm ] | 80.00 |
| E.2 [ mm ] | 80.00 |
| L.1 [ mm ] | 196.00 |
| Plug | PL_9105 |
Passar i 8 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 4.4 | 312E | C4.4 | 0 | 2012–2016 | |
| CATERPILLAR | 4.4 | 312E L | C4.4 | 0 | 2012–2018 | |
| CATERPILLAR | 4.4 | 314E | C4.4 | 0 | 2013–2015 | |
| CATERPILLAR | 4.4 | 314E CR | C4.4 | 0 | 2013–2015 | |
| CATERPILLAR | 4.4 | 314E LCR | C4.4 | 0 | 2013–2016 | |
| CATERPILLAR | 4.4 | 314E SR | C4.4 | 0 | 2013–2016 | |
| CATERPILLAR | 4.4 | 316E L | C4.4 | 0 | 2012–2016 | |
| CATERPILLAR | 4.4 | 318E L | C4.4 | 0 | 2012–2017 |
