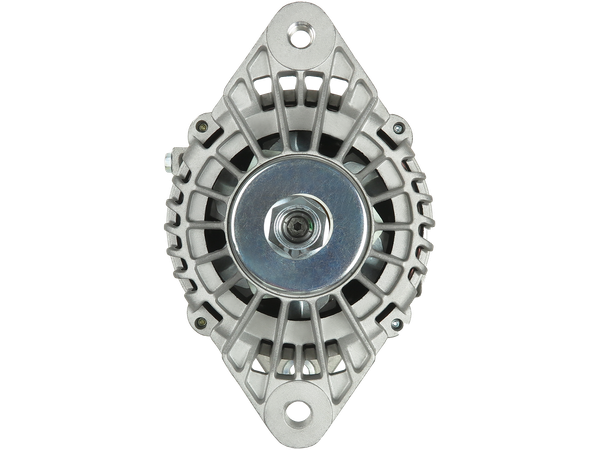

A1101S
Generatorer
STANDARD LINE
2035 kr
Köp nu
| EAN | 5902129167761 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 8600313 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 200 |
| B-storlek [ mm ] | 14.00 |
| C-storlek [ mm ] | 101.00 |
| Remskiva | n/a |
| D.1 [ mm ] | 1/2"UNC |
| D.2 [ mm ] | 13.00 |
| D.3 [ mm ] | 13.00 |
| L.1 [ mm ] | 242.00 |
| Plug | PL_9104 |
Passar i 19 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 215 8.3 | MAGNUM | QSC | 221 | 2008–2011 | |
| CASE IH | 245 8.3 | MAGNUM | QSC | 248 | 2008–2011 | |
| CASE IH | 275 8.9 | MAGNUM | ISL9 | 275 | 2008–2011 | |
| CASE IH | 305 8.9 | MAGNUM | ISL9 | 304 | 2008–2011 | |
| CASE IH | 335 8.7 | MAGNUM | 335 | 2008–2011 | ||
| CASE IH | 420 12.9 | STEIGER | 420 | 2014–2023 | ||
| CASE IH | 5088 8.3 | AXIAL-FLOW | QSC | 275 | 2010–2012 | |
| CASE IH | 6088 8.3 | AXIAL-FLOW | QSC | 305 | 2009–2011 | |
| CASE IH | 7088 9.0 | AXIAL-FLOW | 325 | 2008–2011 | ||
| CASE IH | MX215 8.3 | MAGNUM | QSC | 221 | 2006–2007 | |
| NEW HOLLAND | T8.020 | T8 | QSC | 244.1 | 2007–2010 | |
| NEW HOLLAND | T8.040 | T8 | QSC | 304.4 | 2007–2010 | |
| NEW HOLLAND | T9.020 | T9 | QSL | 335 | 2007–2010 | |
| NEW HOLLAND | T9.050 | T9 | 485 | 2007–2010 | ||
| NEW HOLLAND | T9.450 | T9 | 446 | 2010– | ||
| NEW HOLLAND | T9.505 | T9 | 502 | 2010– | ||
| NEW HOLLAND | T9.560 | T9 | 558 | 2010– | ||
| NEW HOLLAND | T9.615 | T9 | 613 | 2010– | ||
| NEW HOLLAND | T9.670 | T9 | 669 | 2010– |
