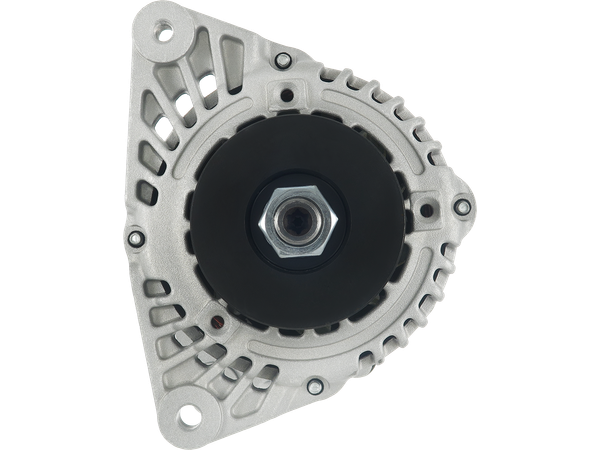

A1151S
Generatorer
STANDARD LINE
1664 kr
Köp nu
| EAN | 5902129266396 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 8600567 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 85 |
| A-storlek [ mm ] | 38.00 |
| B-storlek [ mm ] | 14.00 |
| C-storlek [ mm ] | 82.50 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 42.00 |
| O.D.2 [ mm ] | 73.00 |
| W.1 [ mm ] | 13.00 |
| Remskiva | AP |
| D.1 [ mm ] | M8x1.25 |
| D.2 [ mm ] | 8.50 |
| D.3 [ mm ] | 8.50 |
| L.1 [ mm ] | 15.00 |
| Plug | PL_9109 |
Passar i 22 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 1.5 | CB22B | C1.5 | 0 | 2014–2020 | |
| CATERPILLAR | 1.5 | CB24B | C1.5 | 0 | 2014–2020 | |
| CATERPILLAR | 1.5 | CB24B XT | C1.5 | 0 | 2014–2020 | |
| CATERPILLAR | 1.5 | CB32B | C1.5 | 0 | 2014–2020 | |
| CATERPILLAR | 1.5 | CC2.6 | C1.5 | 0 | 2017–2021 | |
| CATERPILLAR | 1.5 | CC24B | C1.5 | 0 | 2013–2020 | |
| CATERPILLAR | 2.2 | 216B2 | C2.2 | 0 | 2007–2010 | |
| CATERPILLAR | 2.2 | 216B3 | C2.2 | 51 | 2010–2018 | |
| CATERPILLAR | 2.2 | 226B2 | C2.2 | 0 | 2007–2010 | |
| CATERPILLAR | 2.2 | 226B3 | C2.2 | 0 | 2010–2015 | |
| CATERPILLAR | 2.2 | 226D | C2.2 | 0 | 2015–2019 | |
| CATERPILLAR | 2.2 | 226D3 | C2.2 | 0 | 2018–2020 | |
| CATERPILLAR | 2.2 | 232B2 | C2.2 | 0 | 2007–2010 | |
| CATERPILLAR | 2.2 | 232D3 | C2.2 | 0 | 2018–2019 | |
| CATERPILLAR | 2.2 | 242B2 | C2.2 | 0 | 2007–2010 | |
| CATERPILLAR | 2.2 | 247B2 | C2.2 | 0 | 2007–2010 | |
| CATERPILLAR | 2.2 | 247B3 | C2.2T | 62 | 2010–2015 | |
| CATERPILLAR | 2.2 | 249D3 | C2.2 | 0 | 2018–2019 | |
| CATERPILLAR | 2.2 | 257B2 | C2.2 | 0 | 2007–2010 | |
| CATERPILLAR | 2.2 | CB34B | C2.2 | 0 | 2014–2020 | |
| CATERPILLAR | 2.2 | CB34B XW | C2.2 | 0 | 2014–2016 | |
| CATERPILLAR | 2.2 | CB36B | C2.2 | 0 | 2015–2020 |
