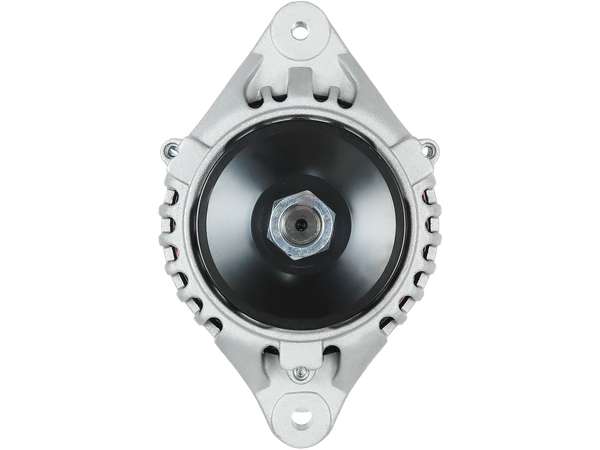

A2124S
Generatorer
STANDARD LINE
1209 kr
Köp nu
| EAN | 5902129144038 |
| Tillverkare | AS-PL |
| Ersätter | HITACHI |
| OE-nummer | LR140-714 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 40 |
| A-storlek [ mm ] | 42.00 |
| B-storlek [ mm ] | 12.00 |
| C-storlek [ mm ] | 68.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 44.00 |
| O.D.2 [ mm ] | 74.00 |
| W.1 [ mm ] | 12.50 |
| Remskiva | AP |
| D.1 [ mm ] | M8x1.25 |
| D.2 [ mm ] | 8.00 |
| D.3 [ mm ] | 8.00 |
| L.1 [ mm ] | 166.00 |
| Plug | PL_2500 |
Passar i 246 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ATLAS COPCO | QAS18 | 4TNE88 | 0 | 1997–2007 | ||
| DAEWOO | DSL801 | 3TN100 | 0 | 1997–2007 | ||
| DAEWOO | 55W-V | SOLAR | 4TNV94-L | 0 | 2006–2009 | |
| DAEWOO | 75-V | SOLAR | 4TNE98XDB | 0 | 2003–2009 | |
| DOOSAN | 450 Plus | 4TNV98-ZNDS | 0 | 2008–2013 | ||
| DOOSAN | 460 Plus TIER-3 | 4TNV98-ZNDS | 0 | 2008–2013 | ||
| DOOSAN | B55W-2 | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | DX53W | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | DX55 | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | DX55W | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | DX60R | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | DX80R | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | E55W | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | E60 | 4TNV98-E | 0 | 2008–2013 | ||
| DOOSAN | E80 | 4TNV98-E | 0 | 2008–2013 | ||
| JOHN DEERE | 4475 | 31.0HP | 0 | 1994–1998 | ||
| JOHN DEERE | 4475 | 3TNE84 | 0 | 1994–2007 | ||
| JOHN DEERE | 5575 | 3TNE88 | 0 | 1994–2007 | ||
| JOHN DEERE | 5575 | 36.0HP | 0 | 1995–1998 | ||
| JOHN DEERE | 6675 | 4TNE84 | 0 | 1994–2007 | ||
| JOHN DEERE | 6675 | 42HP | 0 | 1994–1998 | ||
| JOHN DEERE | 7775 | 4TNE88 | 0 | 1994–2007 | ||
| JOHN DEERE | 7775 | 49.0HP | 0 | 1994–1998 | ||
| JOHN DEERE | Engine | 4020DF101 | 0 | – | ||
| JOHN DEERE | Engine | 3012DF101 | 0 | – | ||
| JOHN DEERE | Engine | 4020DF106 | 0 | – | ||
| JOHN DEERE | Engine | 3012DF106 | 0 | – | ||
| JOHN DEERE | Engine | 4020TF | 0 | – | ||
| JOHN DEERE | Engine | 3015DF | 0 | – | ||
| JOHN DEERE | Engine | 4020DF105 | 0 | – | ||
| JOHN DEERE | Engine | 3012DF105 | 0 | – | ||
| JOHN DEERE | Engine | 4020DF | 0 | – | ||
| JOHN DEERE | Engine | 3015DF106 | 0 | – | ||
| KOBELCO | 30SR2 | 3TNV82A | 0 | 2003–2005 | ||
| KOBELCO | 35SR | 3TNV82A | 0 | 2002–2013 | ||
| KOBELCO | 35SR2 | 3TNV82A | 0 | 2002–2013 | ||
| KOBELCO | SK025 | 3TNC78L | 0 | 1994–2004 | ||
| KOBELCO | SK025-2 | 3TNC78L | 0 | 1994–2004 | ||
| KOBELCO | SK025SR | 3TNV80F-SXNBV | 0 | 1988–2005 | ||
| KOBELCO | SK030SR | 3TN84L-RTBB | 0 | 1988–2009 | ||
| KOBELCO | SK030SR-2 | 3TN84L-RTBB | 0 | 1988–2009 | ||
| KOBELCO | SK035SR | 3TN84L-RTBC | 0 | 1998–2001 | ||
| KOBELCO | SK035SR-2 | 3TN84L-RTBC | 0 | 2001–2009 | ||
| KOBELCO | SK040SR | 4TNV88 | 0 | 1988–2006 | ||
| KOBELCO | SK045SR | 4TNE88 | 0 | 1988–2002 | ||
| KOBELCO | SK45SR-2 | 4TNE88-EYBC | 0 | 2001–2006 | ||
| KOMATSU | D21A-7 | 4D94E-1A | 0 | 1993–2006 | ||
| KOMATSU | D21A-A8 | 4D94LE-2Z-AD | 0 | 2004–2014 | ||
| KOMATSU | D21A-A8E0 | 4D94LE-2Z-AD | 0 | 2008–2011 | ||
| KOMATSU | D21P-8 | 4D94LE-2Z-AD | 0 | 2006–2014 | ||
| KOMATSU | D21PL-8 | 4D94LE-2Z-AD | 0 | 2006–2014 | ||
| KOMATSU | FD15-17 | 4D92-1BD-F | 0 | 2001–2012 | ||
| KOMATSU | FD15-17-EC | 4D92-1BD-F | 0 | 2001–2012 | ||
| KOMATSU | FD18-16 | 4D92E-1BD-F | 0 | 2001–2012 | ||
| KOMATSU | FD18-17 | 4D92-1BD-F | 0 | 2001–2012 | ||
| KOMATSU | FD18-17-EC | 4D92E-1BD-F | 0 | 2001–2012 | ||
| KOMATSU | FD20-12 | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20-14 | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20-14-EC | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20-15 | 4D94E-1ABD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20-16 | 4D98E-1G38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20-16 | 4D98E-1G46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20-16 | 4D94LE-1B45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20-16 | 4D98E-1B41-C | 0 | 2003–2012 | ||
| KOMATSU | FD20-16 | 4D98E-1G45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20-16 | 4D94LE-1B38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20-16 | 4D94LE-1B46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20-17 | 4D94LE-1B45C | 0 | 2003–2012 | ||
| KOMATSU | FD20H-12 | 4D98E-1GD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20H-14 | 4D98E-1GD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20H-15 | 4D98E-1AGD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20H-17 | 4D98E-1B45C | 0 | 2003–2012 | ||
| KOMATSU | FD20N-15 | 4D94E-1ABD-F | 0 | 2003–2012 | ||
| KOMATSU | FD20N-16 | 4D98E-1G38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20N-16 | 4D98E-1G46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD20N-16 | 4D98E-1B41-C | 0 | 2003–2012 | ||
| KOMATSU | FD20N-16 | 4D98E-1G45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25-12 | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25-14 | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25-14-EC | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25-15 | 4D94E-1ABD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25-16 | 4D98E-1B41-C | 0 | 2003–2012 | ||
| KOMATSU | FD25-16 | 4D98E-1G45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25-16 | 4D94LE-1B38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25-16 | 4D94LE-1B46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25-16 | 4D98E-1G38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25-16 | 4D98E-1G46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25-16 | 4D94LE-1B45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25-17 | 4D94LE-1B45C | 0 | 2003–2012 | ||
| KOMATSU | FD25H-12 | 4D98E-1GD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25H-14 | 4D98E-1GD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25H-15 | 4D98E-1AGD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25H-17 | 4D98E-1B45C | 0 | 2003–2012 | ||
| KOMATSU | FD25N-15 | 4D94E-1ABD-F | 0 | 2003–2012 | ||
| KOMATSU | FD25N-16 | 4D98E-1B41-C | 0 | 2003–2012 | ||
| KOMATSU | FD25N-16 | 4D98E-1G45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25N-16 | 4D98E-1G38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD25N-16 | 4D98E-1G46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD28-12 | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30-12 | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30-14 | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30-14-EC | 4D94E-1BD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30-15 | 4D94E-1ABD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30-16 | 4D94LE-1B45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30-16 | 4D98E-1B41-C | 0 | 2003–2012 | ||
| KOMATSU | FD30-16 | 4D94LE-1B38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30-16 | 4D94LE-1B46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30H-12 | 4D98E-1GD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30H-14 | 4D98E-1GD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30H-15 | 4D98E-1AGD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30H-16 | 4D98E-1G46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30H-16 | 4D98E-1G45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30H-16 | 4D98E-1G38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30H-17 | 4D98E-1B45C | 0 | 2003–2012 | ||
| KOMATSU | FD30N-15 | 4D94E-1ABD-F | 0 | 2003–2012 | ||
| KOMATSU | FD30N-16 | 4D94LE-1B46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30N-16 | 4D94LE-1B45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD30N-16 | 4D98E-1B41-C | 0 | 2003–2012 | ||
| KOMATSU | FD30N-16 | 4D94LE-1B38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD35A-16 | 4D98E-1G46-BM | 0 | 2003–2012 | ||
| KOMATSU | FD35A-16 | 4D98E-1B41-C | 0 | 2003–2012 | ||
| KOMATSU | FD35A-16 | 4D98E-1G45-BM | 0 | 2003–2012 | ||
| KOMATSU | FD35A-16 | 4D98E-1G38-BM | 0 | 2003–2012 | ||
| KOMATSU | FD35A-17 | 4D98E-1B45C | 0 | 2003–2012 | ||
| KOMATSU | JV25CR-5 | 3D78N-1A | 0 | 1984–2006 | ||
| KOMATSU | JV25CR-6 | 3D78N-1E | 0 | 2000–2006 | ||
| KOMATSU | JV25CR-7 | 3D78AE-3C | 0 | 2000–2006 | ||
| KOMATSU | JV25CW-2 | 3D84E-3E | 0 | 1984–2006 | ||
| KOMATSU | JV25DW-2 | 3D84E-3E | 0 | 1984–2006 | ||
| KOMATSU | JV25W-2 | 3D84E-3E | 0 | 1984–2006 | ||
| KOMATSU | JV40CW-3 | 3D84N-2CA | 0 | 1984–2006 | ||
| KOMATSU | JV40CW-3 | 3D84E-3G | 0 | 1984–2006 | ||
| KOMATSU | JV40CW-5 | 3D84E-3Q | 0 | 2004–2006 | ||
| KOMATSU | JV40DW-3 | 3D84E-3Q | 0 | 2004–2006 | ||
| KOMATSU | JV40DW-3 | 3D84E-3G | 0 | 1984–2006 | ||
| KOMATSU | JV40DW-3 | 3D84N-2CA | 0 | 1984–2006 | ||
| KOMATSU | PC25-1 | 3D84-2D | 0 | 1989–2001 | ||
| KOMATSU | PC25R-1 | 3D84-2D | 0 | 1989–2001 | ||
| KOMATSU | PC25R-1 | 3D84E-3B | 0 | 1989–2001 | ||
| KOMATSU | PC27MR-1 | 3D82AE-3HB | 0 | 1996–2006 | ||
| KOMATSU | PC27MR-1 | 3D82AE-3H | 0 | 1996–2006 | ||
| KOMATSU | PC27MRX-1 | 3D82AE-3HC | 0 | 2002–2006 | ||
| KOMATSU | PC27R-8 | 3D84E | 0 | 1996–2003 | ||
| KOMATSU | PC30-7 | 3D84E-3A | 0 | 1987–1996 | ||
| KOMATSU | PC30-7 | 3D84-2E | 0 | 1987–1996 | ||
| KOMATSU | PC30MR-1 | 3D84E-3N | 0 | 2002–2009 | ||
| KOMATSU | PC30MR-1 | 3D84E-3K | 0 | 2002–2009 | ||
| KOMATSU | PC30MR-1 | 3D84E-3KB | 0 | 2002–2009 | ||
| KOMATSU | PC30MRX-1 | 3D84E-3K | 0 | 2003–2004 | ||
| KOMATSU | PC30R-7 | 3D84-2E | 0 | 1987–1996 | ||
| KOMATSU | PC30R-7 | 3D84E-3A | 0 | 1987–1996 | ||
| KOMATSU | PC30R-8 | 3D84E-3F | 0 | 1997–2003 | ||
| KOMATSU | PC35MR-1 | 3D84E-3LB | 0 | 2003–2004 | ||
| KOMATSU | PC35MR-1 | 3D84E-3L | 0 | 2003–2004 | ||
| KOMATSU | PC35MRX-1A | 3D84E-3LN | 0 | 2002–2004 | ||
| KOMATSU | PC35R-8 | 3D84E-3F | 0 | 1997–2003 | ||
| KOMATSU | PC38UU-2 | 3D84E-3C | 0 | 1989–2003 | ||
| KOMATSU | PC38UU-2 | 3D84-2GA | 0 | 1989–2003 | ||
| KOMATSU | PC38UU-3 | 3D84E-3M | 0 | 1989–2003 | ||
| KOMATSU | PC38UUM-2 | 3D84E-3C | 0 | 1989–2003 | ||
| KOMATSU | PC40-7 | 4D84E-3C | 0 | 1989–2003 | ||
| KOMATSU | PC40-7 | 4D84-2A | 0 | 1989–2003 | ||
| KOMATSU | PC40MR-1 | 4D84E-3E | 0 | 2003–2004 | ||
| KOMATSU | PC40MR-1 | 4D88E-3H | 0 | 2003–2004 | ||
| KOMATSU | PC40MRX-1 | 4D84E-3E | 0 | 2003–2004 | ||
| KOMATSU | PC40MRX-1 | 4D88E-3H | 0 | 2003–2004 | ||
| KOMATSU | PC40R-7 | 4D84E-3C | 0 | 1989–2003 | ||
| KOMATSU | PC40R-7 | 4D84-2A | 0 | 1989–2003 | ||
| KOMATSU | PC40R-8 | 4D84E-3D | 0 | 1996–2003 | ||
| KOMATSU | PC40T-7 | 4D84-2A | 0 | 1989–2003 | ||
| KOMATSU | PC40T-7 | 4D84E-3C | 0 | 1989–2003 | ||
| KOMATSU | PC45-1 | 4D84E-3B | 0 | 1997–2003 | ||
| KOMATSU | PC45-1 | 4D84-2B | 0 | 1997–2003 | ||
| KOMATSU | PC45MR-1 | 4D88E-3H | 0 | 2003–2004 | ||
| KOMATSU | PC45MR-1 | 4D84E-3E | 0 | 2003–2004 | ||
| KOMATSU | PC45MRX-1 | 4D88E-3H | 0 | 2003–2004 | ||
| KOMATSU | PC45MRX-1 | 4D84E-3E | 0 | 2003–2004 | ||
| KOMATSU | PC50FR-1 | 4D84E-3B | 0 | 1997–2003 | ||
| KOMATSU | PC50FR-2 | 4D84E-3F | 0 | 1997–2003 | ||
| KOMATSU | PC50UD-2 | 4D88E-3B | 0 | 1997–2003 | ||
| KOMATSU | PC50UD-2 | 4D84-2GA | 0 | 1997–2003 | ||
| KOMATSU | PC50UU-2 | 4D88E-3B | 0 | 1993–1998 | ||
| KOMATSU | PC50UU-2 | 4D84-2GA | 0 | 1993–1998 | ||
| KOMATSU | PC50UU-2 | 4D88E-3C | 0 | 1993–1998 | ||
| KOMATSU | PC50UUM-2 | 4D88E-3C-M | 0 | 1993–1998 | ||
| KOMATSU | PC58SF-1 | 4D88E-3C-04 | 0 | 1993–2002 | ||
| KOMATSU | PC58UU-3 | 4D88E-3GB | 0 | 2002–2011 | ||
| KOMATSU | SK714-5 | 4D88E-1FD | 0 | 2003–2011 | ||
| KOMATSU | SK714-5 | 4D88E-E1FD | 0 | 2003–2011 | ||
| KOMATSU | SK714-5 USA | 4D88E-1FD | 0 | 2003–2011 | ||
| KOMATSU | SK815-5 | 4D88E-1FD | 0 | 2003–2011 | ||
| KOMATSU | SK815-5 Turbo | 4D88E-1FD | 0 | 2003–2011 | ||
| KOMATSU | SK815-5 USA | 4D88E-1FD | 0 | 2003–2011 | ||
| KOMATSU | SK818-5 | 4D88E | 0 | 2004–2011 | ||
| KOMATSU | SK818-5 USA | 4D88E | 0 | 2004–2011 | ||
| KOMATSU | SK820-5 Turbo | S4D84E-1FD | 0 | 2003–2011 | ||
| KOMATSU | SK820-5 USA Turbo | S4D84E-1FD | 0 | 2003–2011 | ||
| KOMATSU | WA20-2 | 3D78AE-3A | 0 | 1997–2004 | ||
| KOMATSU | WA20-2 | 3D78N-1C | 0 | 1997–2004 | ||
| KOMATSU | WA30-5 | 3D84E-3D | 0 | 1999–2008 |
Visar 200 av 246 fordon
