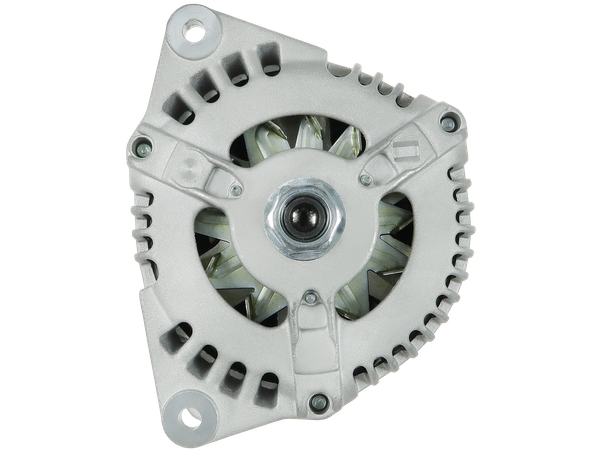

A4144S
Generatorer
STANDARD LINE
1545 kr
Köp nu
| EAN | 5902129206194 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer | 63377464 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 120 |
| B-storlek [ mm ] | 13.50 |
| C-storlek [ mm ] | 82.50 |
| Remskiva | n/a |
| D.1 [ mm ] | 8.00 |
| D.2 [ mm ] | 8.50 |
| D.3 [ mm ] | 8.50 |
| L.1 [ mm ] | 177.00 |
| Plug | PL_9109 |
Passar i 133 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ARMATRAC | 1104 | Serie-11 | 1104D-44TA | 110 | 2012– | |
| ASV | 3.4 | RT-110 | 854E | 0 | 2015–2016 | |
| ASV | 3.4 | RT-110F | 854E | 0 | 2015–2016 | |
| CATERPILLAR | 3.6 | 424 | C3.6 | 0 | 2021–2023 | |
| CATERPILLAR | 4.0 | 414E IL | 3054 | 0 | 2006–2010 | |
| CATERPILLAR | 4.0 | 420D | 3054 | 0 | 2000–2007 | |
| CATERPILLAR | 4.4 | 416 | C4.4 | 0 | 2020–2023 | |
| CATERPILLAR | 4.4 | 416D | 3054C | 0 | 2004–2007 | |
| CATERPILLAR | 4.4 | 416E | 3054C | 0 | 2004–2016 | |
| CATERPILLAR | 4.4 | 416E | C4.4 | 0 | 2009–2013 | |
| CATERPILLAR | 4.4 | 416F | C4.4 | 87 | 2012–2016 | |
| CATERPILLAR | 4.4 | 416F2 | C4.4 | 0 | 2014–2020 | |
| CATERPILLAR | 4.4 | 420 | 3054C | 0 | 2021–2023 | |
| CATERPILLAR | 4.4 | 420 | C4.4 | 0 | 2019–2023 | |
| CATERPILLAR | 4.4 | 420D | 3054C | 0 | 2000–2007 | |
| CATERPILLAR | 4.4 | 420E | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 420E | 3054C | 0 | 2004–2010 | |
| CATERPILLAR | 4.4 | 420E IT | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 420E IT | 3054C | 0 | 2004–2010 | |
| CATERPILLAR | 4.4 | 420F | C4.4 | 94 | 2012–2016 | |
| CATERPILLAR | 4.4 | 420F IT | C4.4 | 0 | 2012–2016 | |
| CATERPILLAR | 4.4 | 420F2 | C4.4 | 0 | 2014–2020 | |
| CATERPILLAR | 4.4 | 420F2 IT | C4.4 | 0 | 2014–2020 | |
| CATERPILLAR | 4.4 | 422E | 3054C | 0 | 2004–2010 | |
| CATERPILLAR | 4.4 | 422E | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 422F | C4.4 | 0 | 2011–2016 | |
| CATERPILLAR | 4.4 | 422F2 | C4.4 | 0 | 2014–2020 | |
| CATERPILLAR | 4.4 | 424 | C4.4 | 0 | 2021–2023 | |
| CATERPILLAR | 4.4 | 424D | 3054C | 0 | 2003–2007 | |
| CATERPILLAR | 4.4 | 426E | 3054C | 0 | – | |
| CATERPILLAR | 4.4 | 426F2 | C4.4 | 0 | 2016–2020 | |
| CATERPILLAR | 4.4 | 428D | 3054C | 0 | 2003–2007 | |
| CATERPILLAR | 4.4 | 428E | C4.4 | 0 | 2009–2013 | |
| CATERPILLAR | 4.4 | 428E | 3054C | 0 | 2005–2010 | |
| CATERPILLAR | 4.4 | 428F | C4.4 | 90 | 2011–2016 | |
| CATERPILLAR | 4.4 | 428F2 | C4.4 | 90 | 2014–2020 | |
| CATERPILLAR | 4.4 | 430D | 3054C | 0 | 2004–2007 | |
| CATERPILLAR | 4.4 | 430E | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 430E | 3054C | 0 | 2004–2010 | |
| CATERPILLAR | 4.4 | 430E IT | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 430E IT | 3054C | 0 | 2004–2010 | |
| CATERPILLAR | 4.4 | 430F | C4.4 | 0 | 2012–2016 | |
| CATERPILLAR | 4.4 | 430F IT | C4.4 | 0 | 2012–2016 | |
| CATERPILLAR | 4.4 | 430F2 | C4.4 | 0 | 2014–2020 | |
| CATERPILLAR | 4.4 | 430F2 IT | C4.4 | 0 | 2014–2020 | |
| CATERPILLAR | 4.4 | 432 | C4.4 | 0 | 2019–2020 | |
| CATERPILLAR | 4.4 | 432D | 3054C | 0 | 2003–2007 | |
| CATERPILLAR | 4.4 | 432D | 3054E | 0 | 2000–2005 | |
| CATERPILLAR | 4.4 | 432E | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 432E | 3054C | 0 | 2005–2010 | |
| CATERPILLAR | 4.4 | 432F | C4.4 | 96 | 2011–2017 | |
| CATERPILLAR | 4.4 | 432F2 | C4.4 | 96 | 2014–2020 | |
| CATERPILLAR | 4.4 | 434 | C4.4 | 0 | 2019–2020 | |
| CATERPILLAR | 4.4 | 434E | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 434E | 3054C | 0 | 2005–2010 | |
| CATERPILLAR | 4.4 | 434F | C4.4 | 95 | 2012–2020 | |
| CATERPILLAR | 4.4 | 434F2 | C4.4 | 95 | 2014–2020 | |
| CATERPILLAR | 4.4 | 442 D | 3054C | 0 | 2003–2007 | |
| CATERPILLAR | 4.4 | 442E | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 442E | 3054C | 0 | 2005–2010 | |
| CATERPILLAR | 4.4 | 444 | C4.4 | 0 | 2019–2020 | |
| CATERPILLAR | 4.4 | 444E | C4.4 | 0 | 2008–2013 | |
| CATERPILLAR | 4.4 | 444E | 3054C | 0 | 2004–2010 | |
| CATERPILLAR | 4.4 | 444F | C4.4 | 97 | 2012–2019 | |
| CATERPILLAR | 4.4 | 444F2 | C4.4 | 97 | 2014–2020 | |
| CATERPILLAR | 4.4 | 450E | C4.4 | 0 | 2007–2017 | |
| CATERPILLAR | 4.4 | 910K | C4.4 | 0 | 2015–2019 | |
| CATERPILLAR | 4.4 | 914K | C4.4 | 0 | 2015–2019 | |
| CATERPILLAR | 4.4 | 920K | C4.4B | 0 | 2019–2022 | |
| CATERPILLAR | 4.4 | CB44B | C4.4 | 0 | 2012–2018 | |
| CATERPILLAR | 4.4 | CB54B | C4.4 | 0 | 2012–2018 | |
| CATERPILLAR | 4.4 | CP11 GC | C4.4 | 0 | 2020–2023 | |
| CATERPILLAR | 4.4 | CP12 GC | C4.4 | 0 | 2021–2023 | |
| CATERPILLAR | 4.4 | CS10 GC | C4.4 | 0 | 2018–2023 | |
| CATERPILLAR | 4.4 | CS11 GC | C4.4 | 0 | 2018–2023 | |
| CATERPILLAR | 4.4 | CS12 GC | C4.4 | 0 | 2018–2023 | |
| CATERPILLAR | 4.4 | D3K XL | C4.4 | 0 | 2006–2016 | |
| CATERPILLAR | 4.4 | D5K XL | C4.4 | 0 | 2006–2016 | |
| CATERPILLAR | 4.4 | TH336C | C4.4 | 0 | 2012–2017 | |
| CATERPILLAR | 4.4 | TH337C | C4.4 | 0 | 2012–2017 | |
| ERKUNT | 4.4 | 1004 | 1104-44TA | 0 | 2012– | |
| ERKUNT | 4.4 | 1104 | 1104-44TA | 0 | 2012– | |
| ERKUNT | 4.4 | 802 | 1104D-44T | 0 | – | |
| ERKUNT | 4.4 | 804 | 1104D-44T | 0 | – | |
| ERKUNT | 4.4 | 904E | 1104-44TA | 0 | – | |
| HATTAT | 4.4 | A100 4WD | 1104D-44TA | 0 | – | |
| HATTAT | 4.4 | A110 4WD | 1104D-44TA | 0 | – | |
| HATTAT | 4.4 | A90 4WD | 1104D-44TA | 0 | – | |
| MANITOU | 4.4 | 1440 | 1104D-44TA | 0 | – | |
| MANITOU | 4.4 | MRT 1440 | (Perkins)[1104D-44T] | 0 | – | |
| MASSEY FERGUSON | 6110 | 0 | 1992– | |||
| MASSEY FERGUSON | 6120 | 0 | 1992– | |||
| MASSEY FERGUSON | 6130 | 0 | 1992– | |||
| MASSEY FERGUSON | 6140 | 0 | 1992– | |||
| MASSEY FERGUSON | 6150 | 0 | 1992– | |||
| MASSEY FERGUSON | 6160 | 0 | 1996– | |||
| MASSEY FERGUSON | 6170 | 6.365 | 0 | 1996– | ||
| MASSEY FERGUSON | 6180 | 6.365 | 0 | 1996– | ||
| MASSEY FERGUSON | 6190 | 0 | 1996– | |||
| MASSEY FERGUSON | 8110 | 0 | 1996– | |||
| MASSEY FERGUSON | 8130 | 0 | 1996– | |||
| MASSEY FERGUSON | 8140 | 6.403 | 0 | 1996– | ||
| MASSEY FERGUSON | 8150 | 6.403 | 0 | 1996– | ||
| MASSEY FERGUSON | 8160 | 6.451 | 0 | 1996– | ||
| MASSEY FERGUSON | 8170 | 0 | – | |||
| MASSEY FERGUSON | 8180 | 0 | – | |||
| MASSEY FERGUSON | 8240 | 0 | 1999– | |||
| MASSEY FERGUSON | 8260 | 0 | 1999– | |||
| MASSEY FERGUSON | 8270 | 0 | 1999– | |||
| MASSEY FERGUSON | 8280 | 0 | 1999– | |||
| MASSEY FERGUSON | 8560 | 0 | – | |||
| MASSEY FERGUSON | 8570 | 0 | – | |||
| MASSEY FERGUSON | 8590 | 0 | – | |||
| MASSEY FERGUSON | Various Models | 0 | 1949–1955 | |||
| MASSEY FERGUSON | 4.0 | 6235 | 1004-40T | 75 | 1999–2003 | |
| MASSEY FERGUSON | 4.0 | 6245 | 1004-40TWG | 85 | 1999–2003 | |
| MASSEY FERGUSON | 4.0 | 6255 | 1004-40TWG | 95 | 1999–2003 | |
| MASSEY FERGUSON | 4.4 | MF 8000 | 1104D-44T | 0 | – | |
| MASSEY FERGUSON | 6.0 | 6260 | 1006-60NA | 105 | 1999–2003 | |
| MASSEY FERGUSON | 6.0 | 6270 | 1006-60T | 115 | 1999–2003 | |
| MASSEY FERGUSON | 6.0 | 6280 | 1006-60T | 125 | 1999–2003 | |
| MASSEY FERGUSON | 6.0 | 6290 | 1006-60T | 135 | 1999–2003 | |
| MASSEY FERGUSON | 6.0 | 8120 | 1006-6THR3 | 145 | 1995–1999 | |
| MASSEY FERGUSON | 6.0 | 8210 | 1006-60TW | 145 | 1999–2003 | |
| MASSEY FERGUSON | 6.0 | 8220 | 1006-60TW | 155 | 1999–2002 | |
| MASSEY FERGUSON | 7.4 | 8250 | D634TCC | 185 | 1999–2002 | |
| OTTAWA | YT50 4 X 2 | C6.6 | 0 | 2007–2016 | ||
| TEREX | 3.4 | PT-110 | 854E | 0 | 2013–2016 | |
| TEREX | 3.4 | PT-110F | 854E | 0 | 2013–2016 | |
| TEREX | 4.4 | PT-100 | 1104C-44T | 0 | 2009–2011 | |
| TEREX | 4.4 | PT-100F | 1104C-44T | 0 | 2009–2011 | |
| TEREX | 4.4 | PT-100G | 1104D-44T | 0 | 2010–2013 | |
| TEREX | 4.4 | PT-100G F | 1104D-44T | 0 | 2010–2013 |
