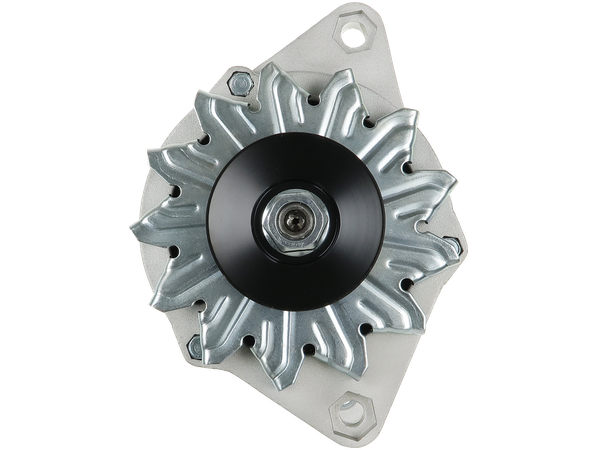

A4146S
Generatorer
STANDARD LINE
1174 kr
Köp nu
| EAN | 5902129221128 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer | 63307406 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 55 |
| A-storlek [ mm ] | 52.00 |
| B-storlek [ mm ] | 22.70 |
| C-storlek [ mm ] | 74.50 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 39.00 |
| O.D.2 [ mm ] | 68.00 |
| W.1 [ mm ] | 10.00 |
| Remskiva | AP |
| D.1 [ mm ] | 10.00 |
| D.2 [ mm ] | 10.50 |
| D.3 [ mm ] | 10.50 |
| L.1 [ mm ] | 160.00 |
| Plug | PL_9104 |
Passar i 10 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 1.3 D | 127 Panorama (127_) | 127A5.000 | 45 | Diesel | 1981–1986 |
| FIAT | 1.3 D | 147 (147_) | 127A5.000 | 49 | Diesel | 1980–1995 |
| FIAT | 1.3 D | FIORINO (147_) | 127A5.000 | 45 | Diesel | 1982–1988 |
| FIAT | 1.3 D | FIORINO Pick up (147_) | 127A5.000 | 45 | Diesel | 1984–1988 |
| FIAT | 1.3 Diesel | 127 (127_) | 127A5.000 | 45 | Diesel | 1981–1986 |
| FIAT | 1.3 Super Diesel | UNO (146_, 158_) | 146B1.000 | 45 | Diesel | 1983–1992 |
| FIAT | 1.3 Super Diesel | UNO (146_, 158_) | 127A5.000 | 45 | Diesel | 1983–1992 |
| FIAT | 1300 D | PANDA (141_) | 156A5.000 | 37 | Diesel | 1986–1992 |
| FIAT | 70 TD 1.4 | UNO (146_, 158_) | 146B.000 | 71 | Diesel | 1986–1990 |
| FIAT | 70 TD 1.4 | UNO (146_, 158_) | 146B3.000 | 71 | Diesel | 1986–1990 |
