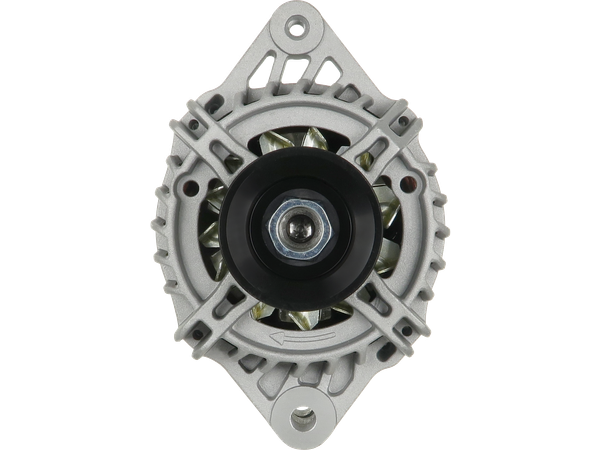

A4148S
Generatorer
STANDARD LINE
1409 kr
Köp nu
| EAN | 5902129230199 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer | 63321914 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 105 |
| A-storlek [ mm ] | 90.00 |
| B-storlek [ mm ] | 57.50 |
| G [ qty. ] | 8 |
| O.D.1 [ mm ] | 56.20 |
| Remskiva | AP |
| D.1 [ mm ] | 10.50 |
| D.2 [ mm ] | M8x1.25 |
| L.1 [ mm ] | 195.00 |
| Plug | PL_9105 |
Passar i 10 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CATERPILLAR | 4.4 | TH220B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH330B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH340B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH350B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH355B | 3054E | 0 | 2004–2006 | |
| CATERPILLAR | 4.4 | TH360B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH460B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH560B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TH580B | 3054E | 0 | 2003–2009 | |
| CATERPILLAR | 4.4 | TL1255 | C4.4 | 0 | 2007–2013 |
